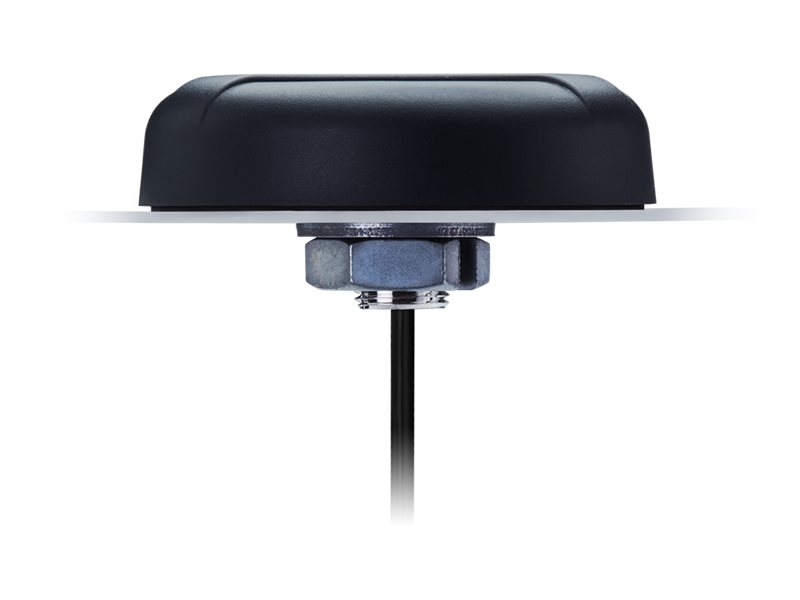

Antenna - navigation - 30.2 dBi - surface mountable, screw mount
| Main Specifications | |
|---|---|
| Product Description | Taoglas Bolt A.120 - antenna |
| Device Type | Antenna |
| Intended For | Navigation |
| Antenna Placing / Mounting | Surface mountable, screw mount |
| Dimensions (WxDxH) | 3.7 in x 3.7 in x 1 in |
| Weight | 10 oz |
| Compatibility | L-band, GNSS, GPS, QZSS, GALILEO, GLONASS, BeiDou |
| Frequency Range | 1176.45 MHz, 1201.55 MHz, 1227.6 MHz, 1248 MHz, 1268.52 MHz, 1278.75 MHz, 1542 MHz, 1561 MHz, 1575.42 MHz, 1602 MHz |
| Gain | 30.2 dBi |
| Features | IP67, right-hand circular polarization (RHCP), RoHS, VSWR ? 1.5:1, waterproof |
| General | |
| Product Type | Antenna |
| Intended For | Navigation |
| Antenna Placing / Mounting | Surface mountable, screw mount |
| Width | 3.7 in |
| Depth | 3.7 in |
| Height | 1 in |
| Weight | 10 oz |
| Product Material | ASA plastic |
| Miscellaneous | |
| Cables Included | Antenna cable - 3.3 ft |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.2 in |
| Shipping Height | 9.1 in |
| Antenna | |
| Compatibility | L-band, GNSS, GPS, QZSS, GALILEO, GLONASS, BeiDou |
| Frequency Range | 1176.45 MHz, 1201.55 MHz, 1227.6 MHz, 1248 MHz, 1268.52 MHz, 1278.75 MHz, 1542 MHz, 1561 MHz, 1575.42 MHz, 1602 MHz |
| Impedance | 50 Ohm |
| Gain | 30.2 dBi |
| Features | IP67, right-hand circular polarization (RHCP), RoHS, VSWR ? 1.5:1, waterproof |
| Connector Provided | |
| Type | GPS antenna - SMA (male) |
