Video capture adapter - USB-C 3.2 Gen 1
| Main Specifications | |
|---|---|

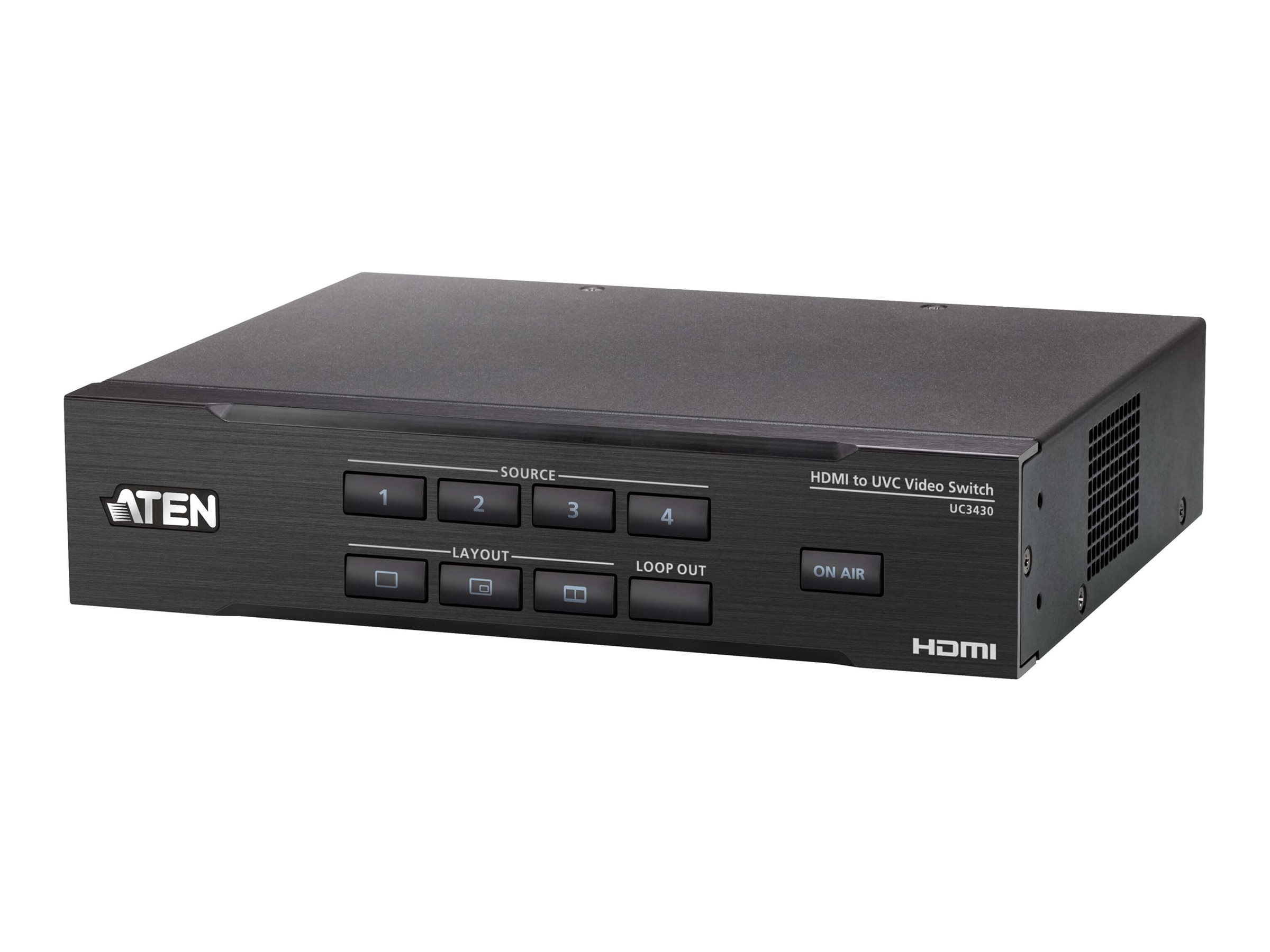

| Product Description | ATEN UC3430 CAMLIVE PRO - video capture adapter - USB-C 3.2 Gen 1 |
| Device Type | Video capture adapter |
| Interface Type | USB-C 3.2 Gen 1 |
| Dimensions (WxDxH) | 6.5 in x 7.9 in x 1.7 in |
| Weight | 2.27 lbs |
| Video Input | HDMI input, HDMI output |
| Video Modes | 2160/30p, 1080/24p, 1080/25p, 1080/30p, 1080/50p, 1080/60p, 2160/24p, 2160/25p, 720/50p, 720/60p, 720/30p, 720/25p |
| Audio Input Support | Standard |
| Features | Chroma keying, cropping function, picture-in-picture capability, picture-by-picture capability |
| OS Required | Windows 10 or later, Apple macOS 10.13 or later |
| General | |
| Device Type | Video capture adapter |
| Interface Type | USB-C 3.2 Gen 1 |
| Width | 6.5 in |
| Depth | 7.9 in |
| Height | 1.7 in |
| Weight | 2.27 lbs |
| Expansion / Connectivity | |
| Interfaces | 4 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 2 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio - unbalanced input - 6.35mm audio jack ¦ 1 x audio - unbalanced output - 6.35mm audio jack ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x management - RS-232 - RJ-45 |
| Connections | 1 x USB-C 3.2 Gen 1 - 24 pin USB-C |
| Miscellaneous | |
| Cables Included | 1 x USB-C to USB-C cable - external ¦ 1 x USB-C to USB-A cable - external |
| Device Features | Metal housing |
| Compliant Standards | Plug and Play |
| Software / System Requirements | |
| OS Required | Windows 10 or later, Apple macOS 10.13 or later |
| System Requirements Details | Core i3 - 2.8 GHz - RAM 4 GB |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Video | |
| Interface Type | HDMI input, HDMI output |
| Video Modes | 2160/30p, 1080/24p, 1080/25p, 1080/30p, 1080/50p, 1080/60p, 2160/24p, 2160/25p, 720/50p, 720/60p, 720/30p, 720/25p |
| Audio Input Support | Standard |
| Audio Sampling Format | Stereo 16-bit / 44.1 kHz, stereo 16-bit / 48 kHz |
| Features | Chroma keying, cropping function, picture-in-picture capability, picture-by-picture capability |
