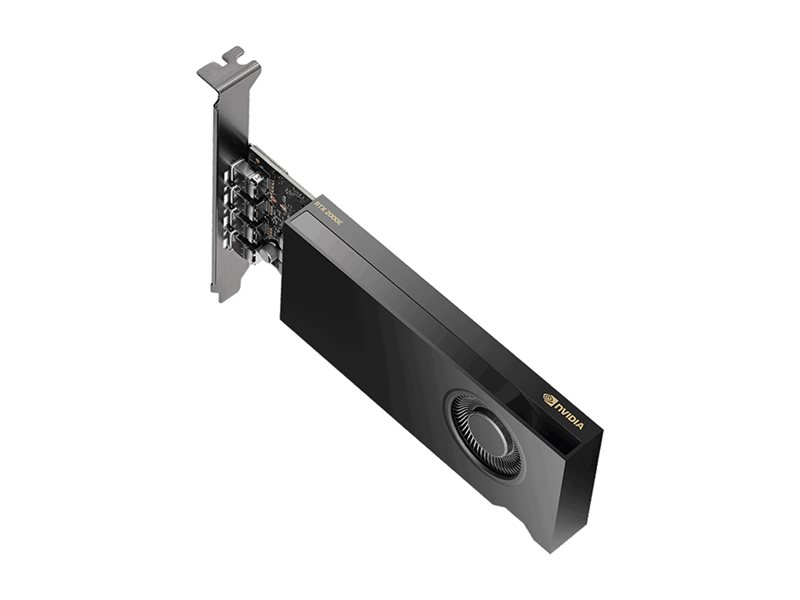

Graphics card - NVIDIA RTX 2000 Ada - 16 GB GDDR6 - PCIe 4.0 x8 low profile - 4 x Mini DisplayPort
| Main Specifications | |
|---|---|
| Product Description | NVIDIA RTX 2000E Ada Generation - graphics card - NVIDIA RTX 2000 Ada - 16 GB |
| Device Type | Graphics card - low profile |
| Bus Type | PCI Express 4.0 x8 |
| Graphics Engine | NVIDIA RTX 2000 Ada - up to 71 TOPS |
| Memory | 16 GB GDDR6 |
| CUDA Cores | 2816 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 4 x Mini DisplayPort |
| API Supported | OpenGL 4.6, OpenACC, DirectCompute, CUDA 11.6, DirectX 12, Shader Model 6.6, Vulkan 1.3, OpenCL 3.0 |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card - low profile |
| Bus Type | PCI Express 4.0 x8 |
| Graphics Engine | NVIDIA RTX 2000 Ada |
| CUDA Cores | 2816 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 at 60 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 4 x Mini DisplayPort |
| API Supported | OpenGL 4.6, OpenACC, DirectCompute, CUDA 11.6, DirectX 12, Shader Model 6.6, Vulkan 1.3, OpenCL 3.0 |
| Features | 8.9 Tflops peak single-precision floating point performance, 20.5 Tflops RT Core performance, 71 Tflops tensor performance, AV1 decode support, AV1 encode support, NVIDIA Ada Lovelace GPU technology, OpenGL Quad Buffered Stereo Support, Microsoft DirectStorage, Error Correcting Codes (ECC) Memory, NVDEC support, NVENC support, NVIDIA RTX IO, NVIDIA Mosaic, 22 NVIDIA third-generation RT Cores, 88 NVIDIA fourth-generation Tensor Cores, DisplayPort with Audio, heatsink with blower fan, 1 slot Fan Cooler, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR6 SDRAM |
| Bus Width | 128-bit |
| Bandwidth | 224 GBps |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 50 Watt |
| Included Accessories | Full-height bracket, low-profile bracket, mini DP/DP adapters |
| Software Included | NVIDIA RTX Experience, NVIDIA RTX Desktop Manager |
| Compliant Standards | HDCP 2.2, DisplayPort 1.4a |
| Depth | 6.6 in |
| Height | 2.7 in |
| System Requirements | |
| OS Required | Microsoft Windows 11, Windows 10 (64-bit), Red Hat Enterprise Linux 7.x, SUSE Linux Enterprise Desktop 15.x, openSUSE 15, Linux Fedora 31, FreeBSD 11.x, Oracle Solaris 11, Ubuntu 18.04 |
| Performance | |
| NPU Performance Up To (TOPS) | 71 TOPS |
