Serial adapter - RS-232 - RS-422/485
| Main Specifications | |
|---|---|

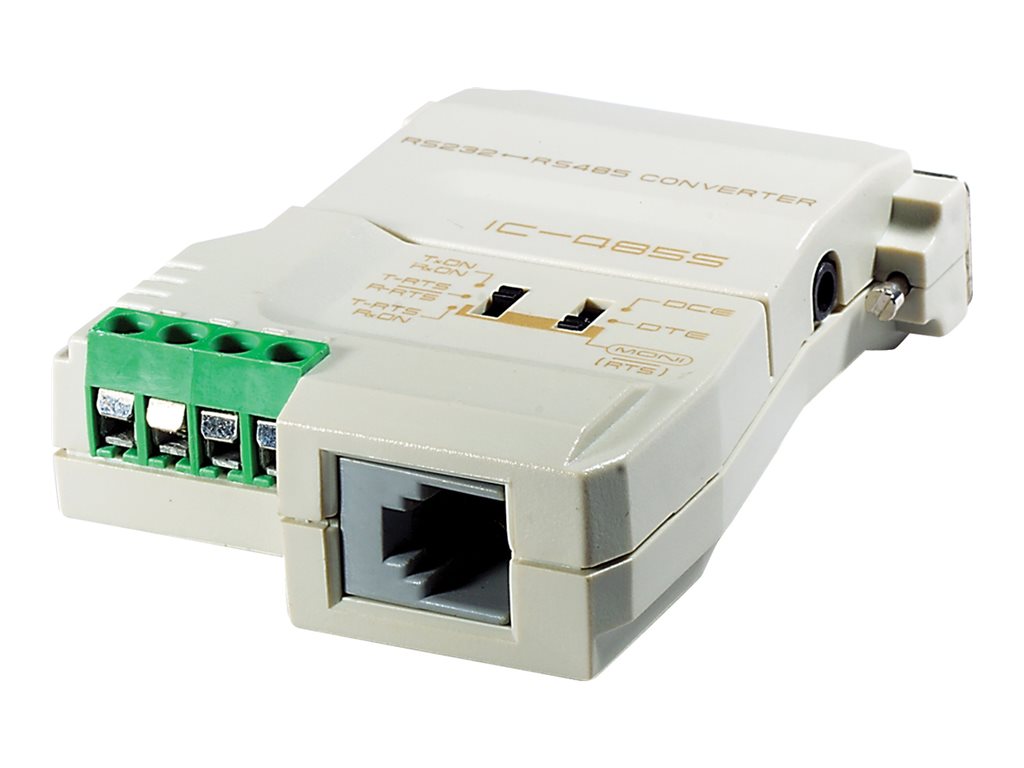

| Product Description | ATEN IC485S - serial adapter - RS-232 - RS-422/485 |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232 |
| Ports | RS-422/485 |
| Dimensions (WxDxH) | 2.1 in x 3.1 in x 0.8 in |
| Weight | 1.76 oz |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 115.2 Kbps |
| System Requirements | Microsoft Windows 2000 / XP |
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232 |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 - 25 pin D-Sub (DB-25) ¦ 1 x RS-422/485 - terminal block ¦ 1 x network - RJ-11 |
| Miscellaneous | |
| Included Accessories | Power adapter |
| Networking | |
| Ports | RS-422/485 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 115.2 Kbps |
| Features | Selectable DTE / DCE interface, up to 1200 m transmission distance, plastic housing |
| Power | |
| Power Consumption Operational | 0.82 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 2000 / XP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 2.1 in |
| Depth | 3.1 in |
| Height | 0.8 in |
| Weight | 1.76 oz |
