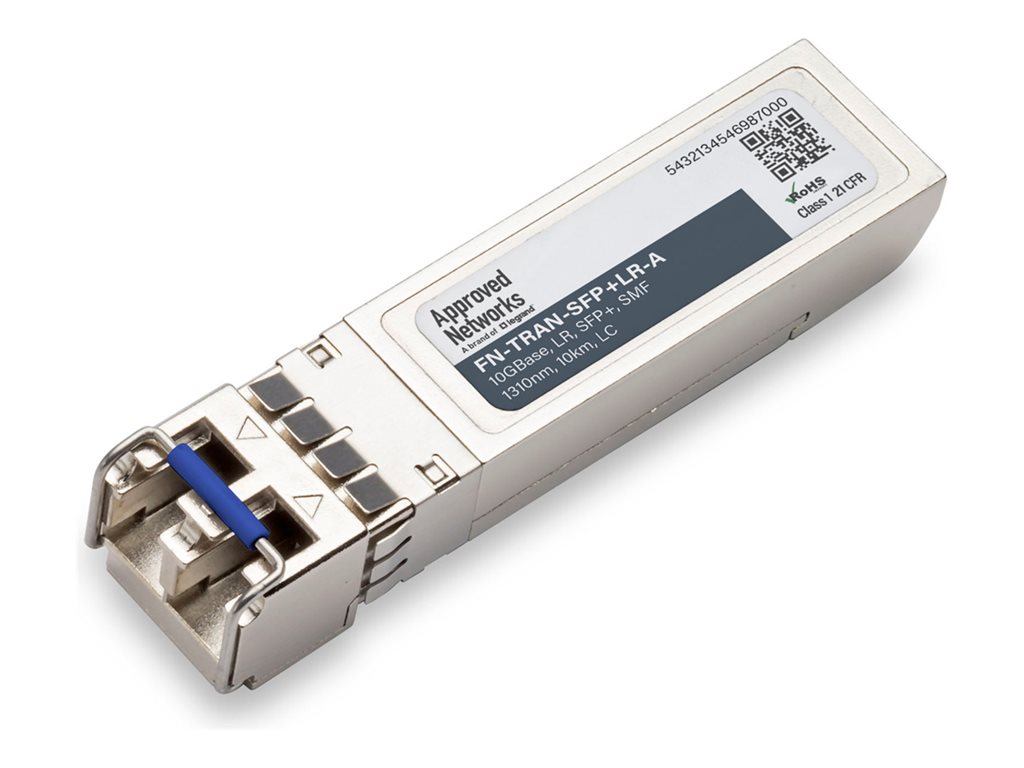

SFP+ transceiver module (equivalent to: Fortinet FN-TRAN-SFP+LR) - 10GbE - 10GBase-LR - LC single-mode - up to 6.2 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Approved Networks - SFP+ transceiver module - 10GbE |
| Device Type | SFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-LR |
| Data Transfer Rate | 11.1 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 6.2 miles |
| OEM Manufacturer Equivalent Part Number | Fortinet FN-TRAN-SFP+LR |
| Dimensions (WxDxH) | 0.5 in x 2.3 in x 0.5 in |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-LR - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA SFF-8472, CPRI, SFF-8431 |
| OEM Manufacturer Equivalent Part Number | Fortinet FN-TRAN-SFP+LR |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-LR |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 11.1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 6.2 miles |
| Features | PIN Receiver, Digital Optical Monitoring (DOM) support, metal housing, Digital Diagnostics Monitoring (DDM), 6.2 dB power budget, Distributed Feedback Laser (DFB), transmit min -6 dBm / max -0.5 dBm, -14.4 dBm sensivity |
| Power | |
| Power Consumption Operational | 1 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% RH |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.3 in |
| Height | 0.5 in |
