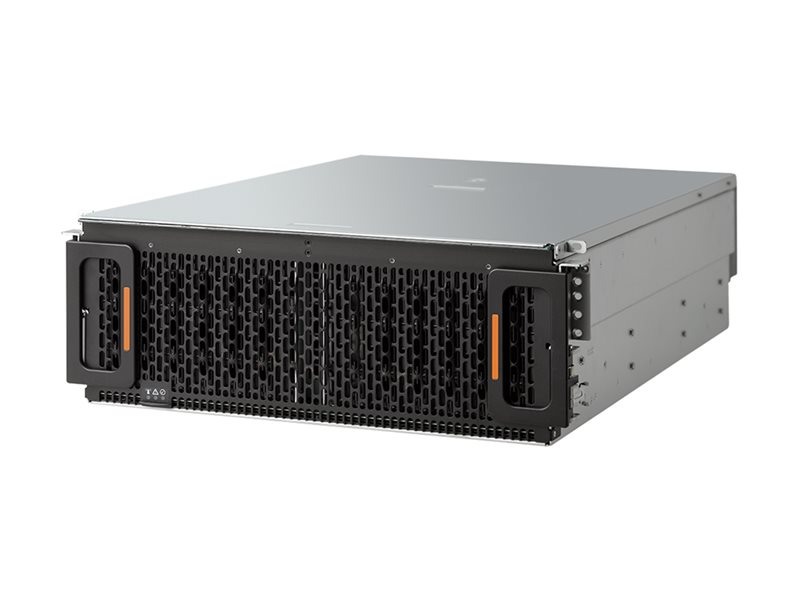

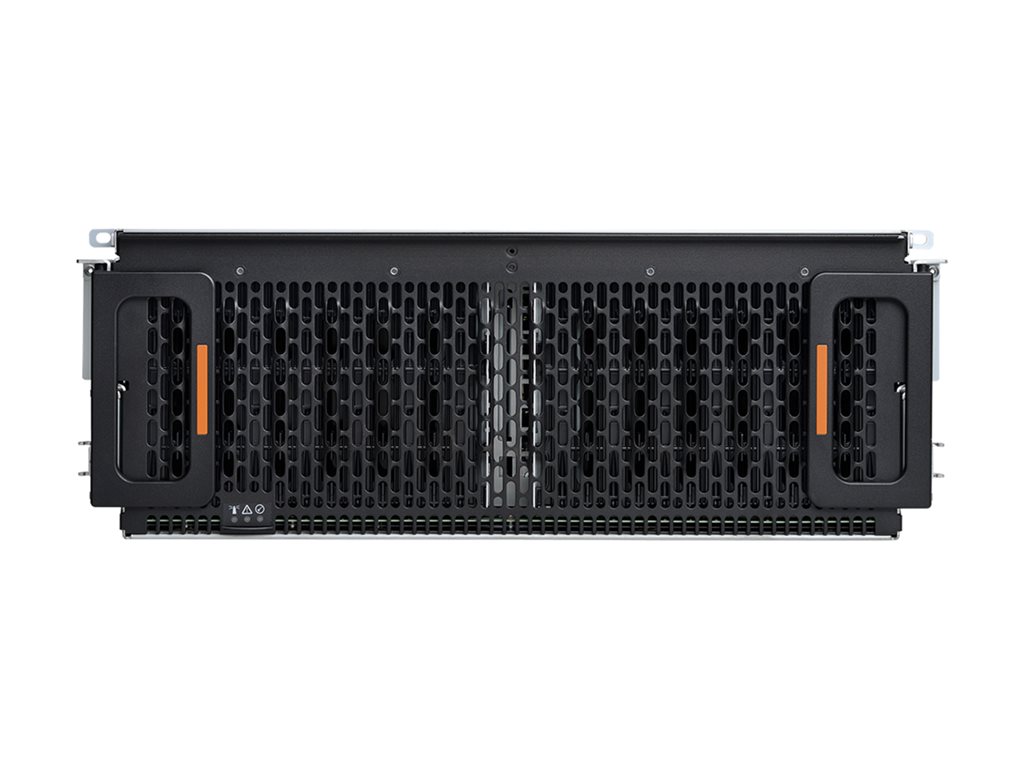

Storage enclosure - 60 bays - HDD 22 TB x 12 - rack-mountable - 4U
| Main Specifications | |
|---|---|
| Product Description | WD Ultrastar Data60 - storage enclosure |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 4U |
| Max Supported Capacity | 1320 TB |
| Installed Devices / Modules Qty | 12 (installed) / 60 (max) |
| Built-in Devices | 2 x I/O module |
| Hard Drive | 12 x 22 TB HDD SAS 12Gb/s - hot-swap - advanced format 512e, self-encrypting, Secure Erase function - Western Digital |
| Power | AC 230 V 50/60 Hz |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.6 in x 28 in x 6.9 in |
| Weight | 175.05 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 4U |
| Expansion / Connectivity | |
| Expansion Bays | 60 (total) / 48 (free) x hot-swap - 3.5" |
| Interfaces | 12 x SAS 12Gb/s - Mini SAS HD (SFF-8644) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Features | SCSI Enclosure Services (SES), IsoVibe vibration isolation technology, ArcticFlow thermal zone cooling technology |
| Processor | |
| CPU | No CPU |
| Storage | |
| Max Supported Capacity | 1320 TB |
| Power | |

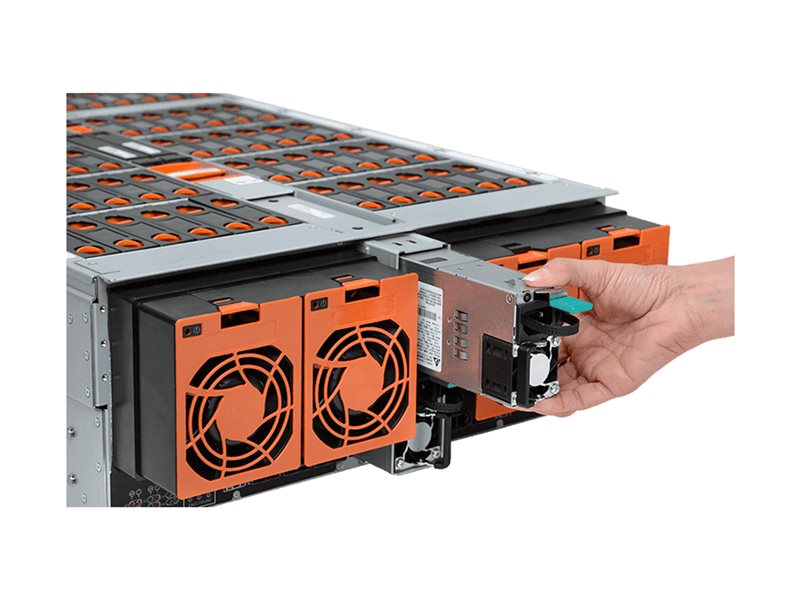

| Power Device | 2 x internal power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 230 V 50/60 Hz |
| Power Provided | 1600 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 12 x 22 TB |
| Interface Type | SAS 12Gb/s |
| Features | Advanced format 512e, self-encrypting, Secure Erase function |
| Manufacturer | Western Digital |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 28 in |
| Height | 6.9 in |
| Weight | 175.05 lbs |
| Chassis | |
| Built-in Devices | 2 x I/O module |
| Installed Devices / Modules Qty | 12 |
| Supported Devices / Modules Qty | 60 |
