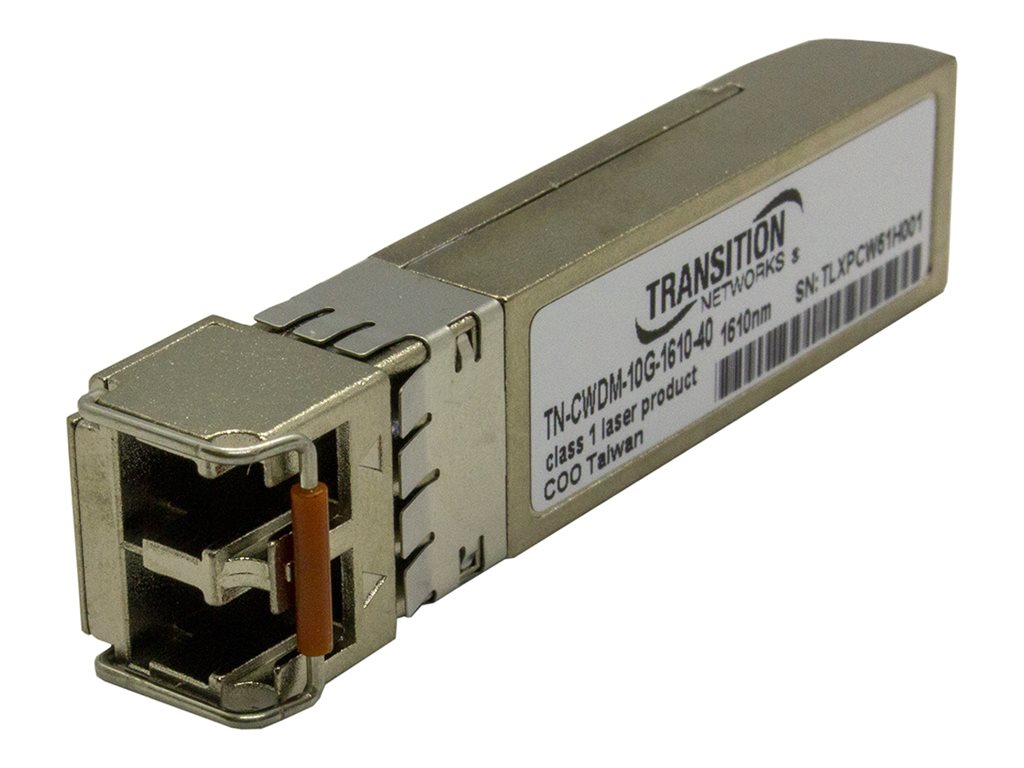

SFP+ transceiver module - 10GbE - 10GBase-LR, 10GBase-LW - LC single-mode - up to 24.9 miles - 1610 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix TN-CWDM-10G-1xx0-40 Series - SFP+ transceiver module - 10GbE - TAA Compliant |
| Device Type | SFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-LR, 10GBase-LW |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1610 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 24.9 miles |
| Dimensions (WxDxH) | 0.5 in x 2.2 in x 0.3 in |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-LR/LW (duplex) - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, SFF-8472, RoHS, IEC 60825, CFR 1040.10, CFR 1040.11, FDA 21 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-LR, 10GBase-LW |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1610 nm |
| Max Transfer Distance | 24.9 miles |
| Features | Digital Diagnostic Function (DMI), 14.1 dB link budget, CWDM |
| Compliant Standards | IEEE 802.3ae |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.2 in |
| Height | 0.3 in |
