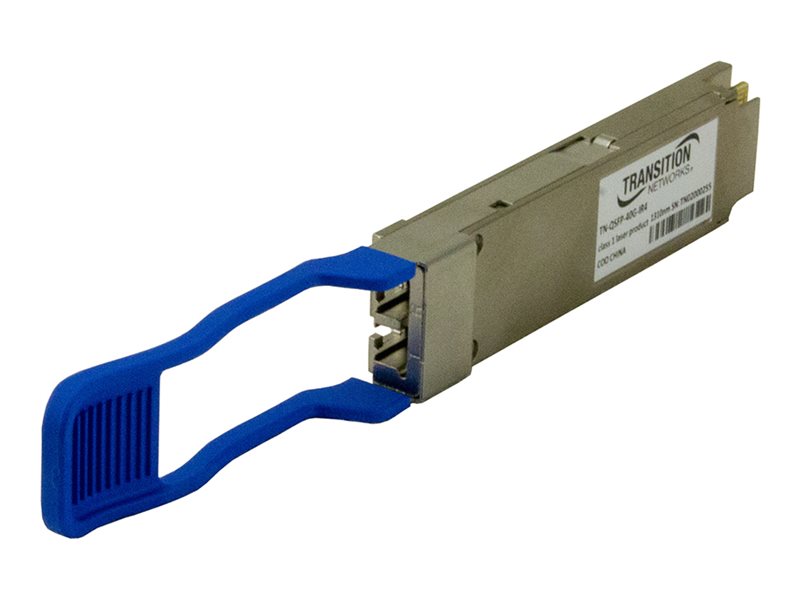

QSFP+ transceiver module - 40GbE - 40GBase-IR4 - LC single-mode - up to 1.2 miles - 1271 nm / 1291 nm / 1311 nm / 1331 nm
| Main Specifications | |
|---|---|
| Product Description | Lantronix TN-QSFP-40G Series - QSFP+ transceiver module - 40GbE |
| Device Type | QSFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 40GBase-IR4 |
| Data Transfer Rate | 44.4 Gbps |
| Optical Wave Length | 1271 nm / 1291 nm / 1311 nm / 1331 nm |
| Data Link Protocol | 40GbE |
| Max Transfer Distance | 1.2 miles |
| Dimensions (WxDxH) | 0.7 in x 2.8 in x 0.3 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBase-IR4 - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | MSA SFF-8436, RoHS, NDAA, IEC 60825-1, CDRH, FDA 21CFR1040.10 Class 1 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 40GBase-IR4 |
| Data Link Protocol | 40GbE |
| Data Transfer Rate | 44.4 Gbps |
| Optical Wave Length | 1271 nm / 1291 nm / 1311 nm / 1331 nm |
| Max Transfer Distance | 1.2 miles |
| Features | Digital Diagnostic Function (DMI), 6.7 dB link budget, Digital Diagnostics Monitoring (DDM), CWDM |
| Compliant Standards | IEEE 802.3ba |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 2.8 in |
| Height | 0.3 in |
