Multi-format converter / scaler
| Main Specifications | |
|---|---|

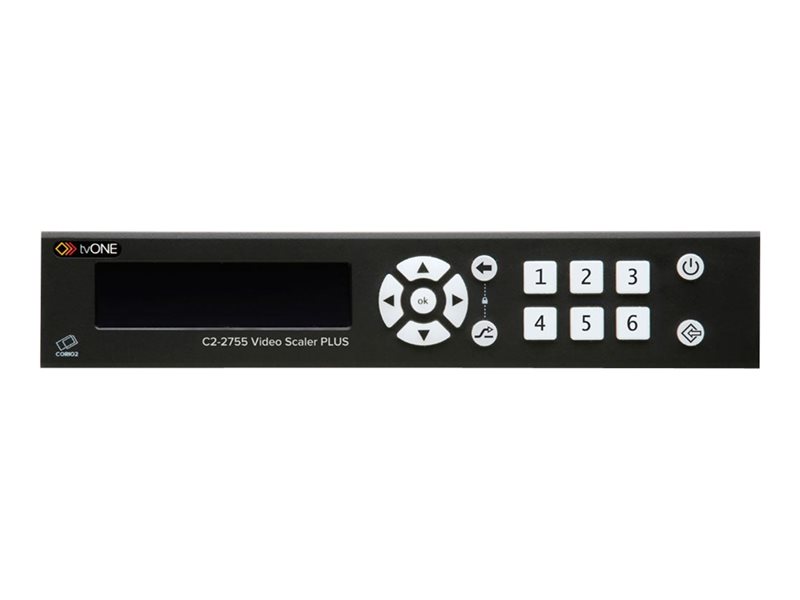

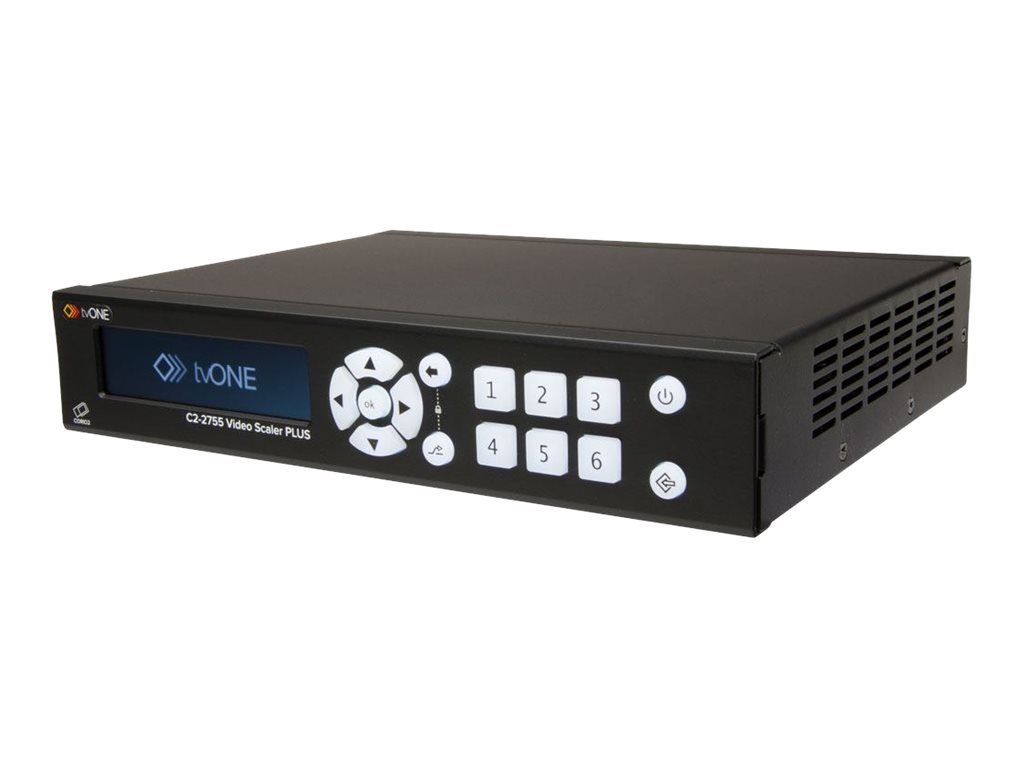

| Product Description | TV One C2-2755 multi-format converter / scaler |
| Type | Multi-format converter / scaler |
| Supported Video Standards | PAL, NTSC, SECAM |
| Dimensions (WxDxH) | 8.6 in - 7.4 in - 1.7 in |
| Weight | 2.78 lbs |
| Manufacturer Warranty | 5 years |
| General | |
| Type | Multi-format converter / scaler |
| Width | 8.6 in |
| Depth | 7.4 in |
| Height | 1.7 in |
| Weight | 2.78 lbs |
| Manufacturer Warranty | |
| Warranty | 5 years |
| Power | |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x power adapter |
| Terminals | |

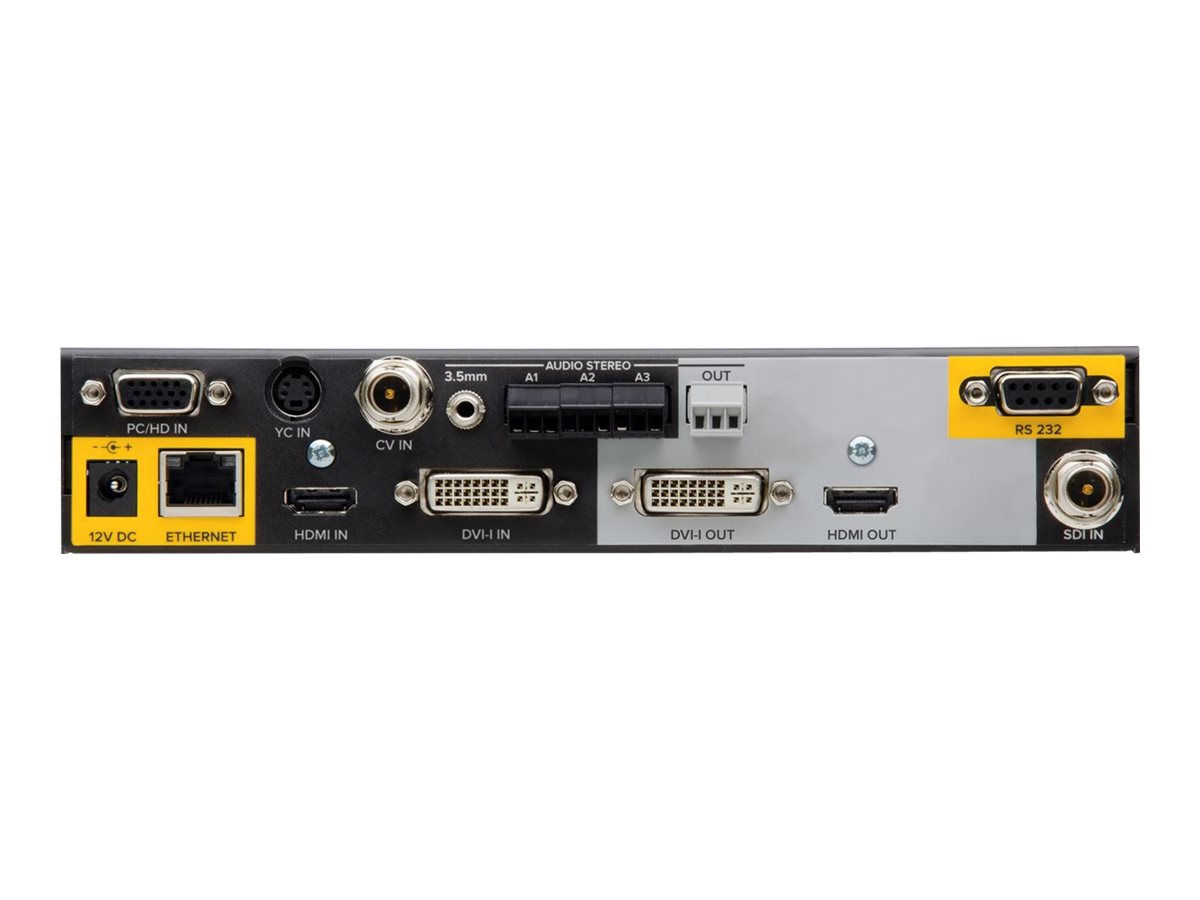

| Terminals | (1) x RGB input - 15 pin HD D-Sub (HD-15) ¦ (1) x S-video input - 4 pin mini-DIN ¦ (1) x composite video input - BNC ¦ (1) x audio line-in - mini-phone stereo 3.5 mm ¦ (1) x network - RJ-45 ¦ (1) x HDMI input - 19 pin HDMI Type A ¦ (1) x DVI-U input - 24+5 pin DVI ¦ (3) x audio line-in - terminal block ¦ (1) x audio line-out - terminal block ¦ (1) x serial - 9 pin D-Sub (DB-9) ¦ (1) x DVI-U output - 24+5 pin DVI ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x SDI input - BNC |
| Studio & Production Equipment | |
| Supported Video Standards | PAL, NTSC, SECAM |
| Features | Picture-in-picture support |
