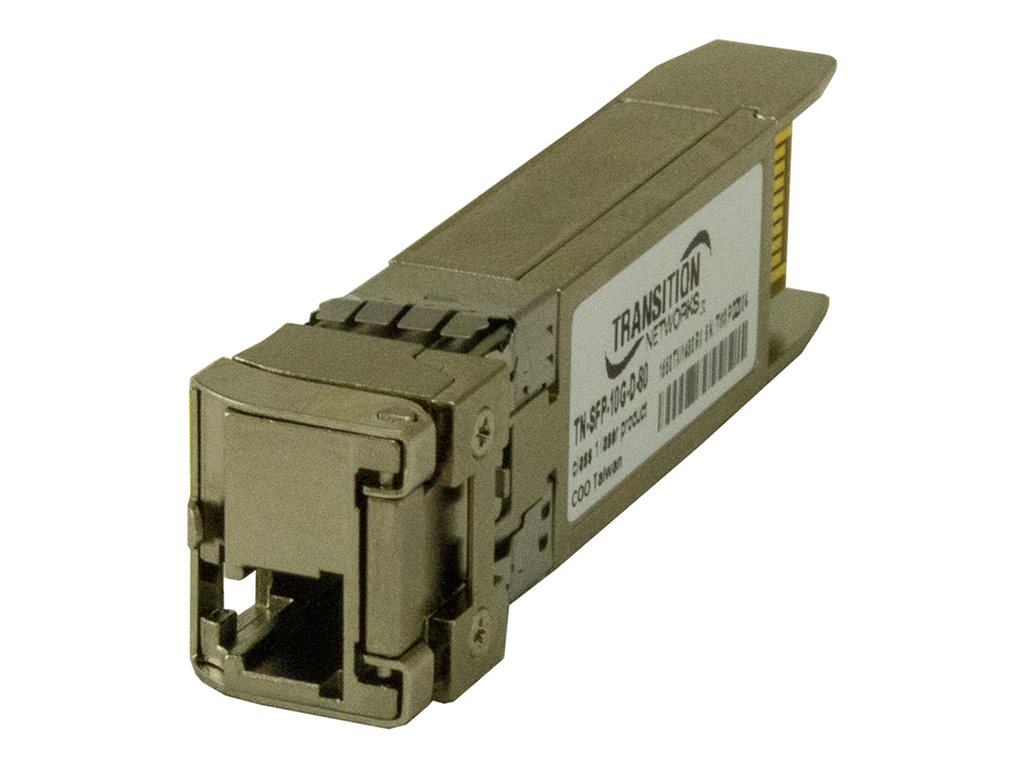

SFP+ transceiver module - 10GbE - 10GBase-BX - LC single-mode - up to 49.7 miles - 1550 (TX) / 1490 (RX) nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix TN-SFP-10G-x-xx Series - SFP+ transceiver module - 10GbE - TAA Compliant |
| Device Type | SFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-BX |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1550 (TX) / 1490 (RX) nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 49.7 miles |
| Dimensions (WxDxH) | 0.5 in x 2.2 in x 0.3 in |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-BX - LC single-mode female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | SFF-8472, NDAA, IEC 60825, FDA 21, CFR 1040.11, RoHS, CFR 1040.10 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-BX |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1550 (TX) / 1490 (RX) nm |
| Max Transfer Distance | 49.7 miles |
| Features | Digital Diagnostic Function (DMI), 23 dB link budget |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ae, IEEE 802.3 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.2 in |
| Height | 0.3 in |
