Switch - L3 - managed - 12 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 36 x 100/1000/2.5G (PoE++) + 2 x 100 Gigabit (uplink / stacking) - front to back airflow - rack-mountable - PoE++ (1300 W) - E-Rate program - with 5 years Virtual Network Assistant and MIst Wired Assurance
| Main Specifications | |
|---|---|

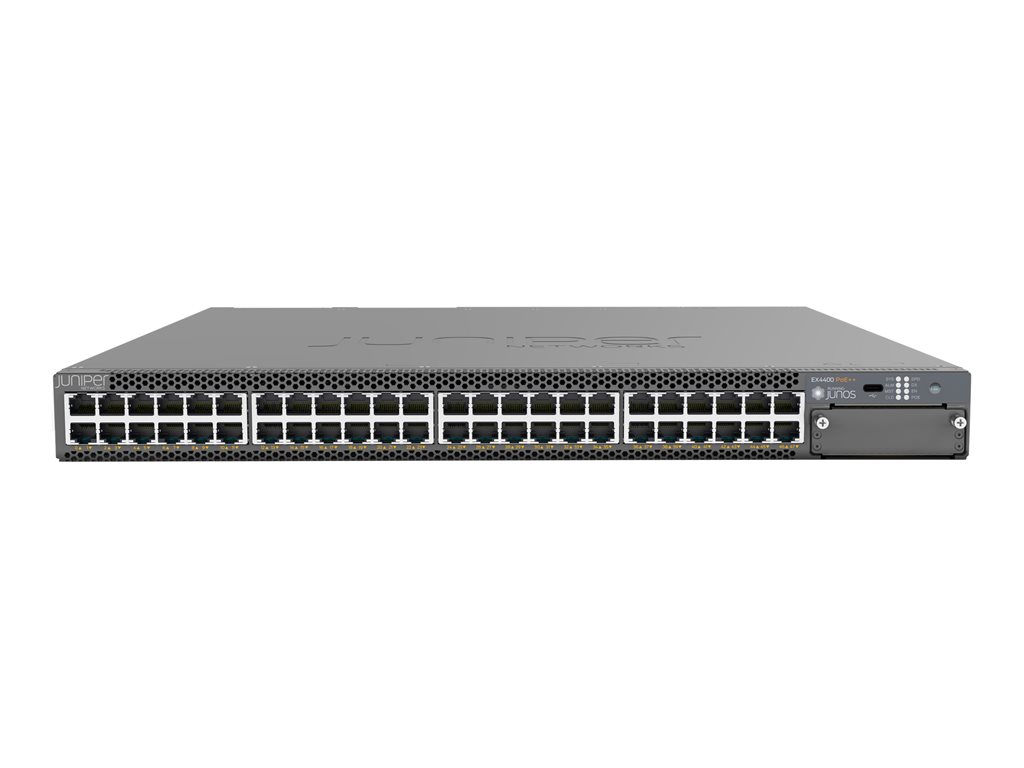

| Product Description | Juniper Networks EX Series EX4400-48P - switch - 48 ports - managed - rack-mountable - E-Rate program |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Bundled Services | 5 years Virtual Network Assistant and MIst Wired Assurance |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 36 x 100/1000/2.5G (PoE++) + 2 x 100 Gigabit (uplink / stacking) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 1300 W |
| Performance | Switching capacity (64-byte packet size, unidirectional): 510 Gbps ¦ Switching capacity (64-byte packet size, bidirectional): 1020 Gbps ¦ Layer 2 / layer 3 throughput (64-byte packet size): 758 Mpps |
| Capacity | VSTP instances: 510 ¦ MST instances: 64 ¦ Maximum member ports per LAG: 16 ¦ ARP entries: 24000 ¦ IPv4 routes (Unicast): 130048 ¦ IPv4 hosts (Unicast): 81000 ¦ IPv4 routes (Multicast): 40000 ¦ IPv6 neighbor discovery: 12000 ¦ IPv6 routes (Unicast): 87000 ¦ Host IPv6 routes (Unicast): 40000 ¦ IPv6 routes (Multicast): 20000 ¦ VLANs supported: 4093 |
| MAC Address Table Size | 112000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, RIPng, MLD, Bidirectional Forwarding Detection (BFD), CIDR, BGP for IPv6, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Features | Flow control, firewall protection, auto-sensing per device, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, store and forward, IPv6 support, High Availability, DPI, WRED, sFlow, STP support, MSTP support, event log, DHCP snooping, ACL support, QoS, DHCP server, VRF-Lite, MLD snooping, DHCP proxy, DAI, temperature sensor, RTG, TDR, NSB, NSR, GRES, PVST+, IPv4 support, DHCP relay, DHCP client, MIB, MVRP, NDP, VSTP, redundant hot swappable fans, CoS, SP, Captive Portal, DSCP support, ERPS, 2 fans, UFD, IP source guard, ECN, ICMP Router Discovery Protocol (IRDP), SCP, VXLAN, Link Aggregation, EVPN, MAC address learning, policy based routing, AAA, WDRR, Voice VLAN, LLDP-MED, RA guard, proxy ARP, DHCP Helper, WRR, RVI, VLAN Tagging, port-based VLAN, PVLAN support, DDoS Protection, flooding detection, MACsec, JTI, MAC Learning Disable, DNS support, MRP |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, ITU-T G.8032, IEEE 802.3bt |
| Power | AC 100-120/200-240 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 16.9 in x 1.7 in |
| System Requirements | JUNOS |
| Manufacturer Selling Program | E-Rate program |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Bundled Services | 5 years Virtual Network Assistant and MIst Wired Assurance |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 36 x 100/1000/2.5G (PoE++) + 2 x 100 Gigabit (uplink / stacking) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 1300 W |
| Performance | Switching capacity (64-byte packet size, unidirectional): 510 Gbps ¦ Switching capacity (64-byte packet size, bidirectional): 1020 Gbps ¦ Layer 2 / layer 3 throughput (64-byte packet size): 758 Mpps |
| Capacity | VSTP instances: 510 ¦ MST instances: 64 ¦ Maximum member ports per LAG: 16 ¦ ARP entries: 24000 ¦ IPv4 routes (Unicast): 130048 ¦ IPv4 hosts (Unicast): 81000 ¦ IPv4 routes (Multicast): 40000 ¦ IPv6 neighbor discovery: 12000 ¦ IPv6 routes (Unicast): 87000 ¦ Host IPv6 routes (Unicast): 40000 ¦ IPv6 routes (Multicast): 20000 ¦ VLANs supported: 4093 |
| MAC Address Table Size | 112000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, RIPng, MLD, Bidirectional Forwarding Detection (BFD), CIDR, BGP for IPv6, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Encryption Algorithm | MD5, TLS, PEAP, TTLS, 256-bit AES |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, firewall protection, auto-sensing per device, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, store and forward, IPv6 support, High Availability, DPI, WRED, sFlow, STP support, MSTP support, event log, DHCP snooping, ACL support, QoS, DHCP server, VRF-Lite, MLD snooping, DHCP proxy, DAI, temperature sensor, RTG, TDR, NSB, NSR, GRES, PVST+, IPv4 support, DHCP relay, DHCP client, MIB, MVRP, NDP, VSTP, redundant hot swappable fans, CoS, SP, Captive Portal, DSCP support, ERPS, 2 fans, UFD, IP source guard, ECN, ICMP Router Discovery Protocol (IRDP), SCP, VXLAN, Link Aggregation, EVPN, MAC address learning, policy based routing, AAA, WDRR, Voice VLAN, LLDP-MED, RA guard, proxy ARP, DHCP Helper, WRR, RVI, VLAN Tagging, port-based VLAN, PVLAN support, DDoS Protection, flooding detection, MACsec, JTI, MAC Learning Disable, DNS support, MRP |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, ITU-T G.8032, IEEE 802.3bt |
| Processor | 1 x Intel: 2.2 GHz |
| RAM | 4 GB |
| Flash Memory | 20 GB |
| Built-in Devices | LED panel |
| Expansion / Connectivity | |
| Interfaces | 12 x 1/2.5/5/10GBase-T (PoE++) RJ-45 PoE++ ¦ 2 x 100Gbit LAN uplink/stacking ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial RJ-45 management ¦ 36 x 100/1000/2.5G (PoE++) RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime ¦ New releases update - lifetime ¦ Technical support - 90 days |
| Miscellaneous | |
| Compliant Standards | VCCI, CISPR 24, ICES-003, EN55024, FCC CFR47 Part 15, FCC CFR21 Part 1040, UL 60950-1, IEC 60950-1, RoHS, BSMI CNS 13438, IEC 60825-1, IEC 60825-2, EN 300 386 V1.6.1, KN32, KN35, IEC 62368-1, TCVN 7189, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, TCVN 7317, EN 55035, CISPR 35, EN 300 386 V2.1.1, EMC-221, OCT-16, AS/NZS CISPR 32, TEC, IEC 62368-3, ETSI ES 203 136 V.1.1.1 |
| Manufacturer Selling Program | E-Rate program |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 1600 Watt |
| Voltage Required | AC 100-120/200-240 V |
| Software / System Requirements | |
| Software Included | Junos OS |
| OS Required | JUNOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 16.9 in |
| Height | 1.7 in |
