USFF Core i5 1240P / up to 4.4 GHz - vPro - RAM 0 GB - no HDD - Intel Iris Xe Graphics - IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, Gigabit Ethernet, 2.5 Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|
| Product Description | ASRock NUC BOX-1240P - USFF Core i5 1240P - vPro - 0 GB - no HDD |
| Type | Personal computer - USFF |
| Platform Technology | Intel vPro Platform |
| Processor | Intel Core i5 (12th Gen) 1240P (up to 4.4 GHz, (12-core) |
| Cache Memory | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | 0 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel Iris Xe Graphics |
| Audio Output | 7.1 channel surround |
| Networking | 802.11a, Wi-Fi 5, 802.11b/g/n, Wi-Fi 6E, Bluetooth 5.3, 1GbE, 2.5GbE |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 4.3 in x 4.6 in x 1.9 in |
| Weight | 2.2 lbs |
| General | |
| Platform Technology | Intel vPro Platform |
| Type | Personal computer |
| Product Form Factor | USFF |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 |

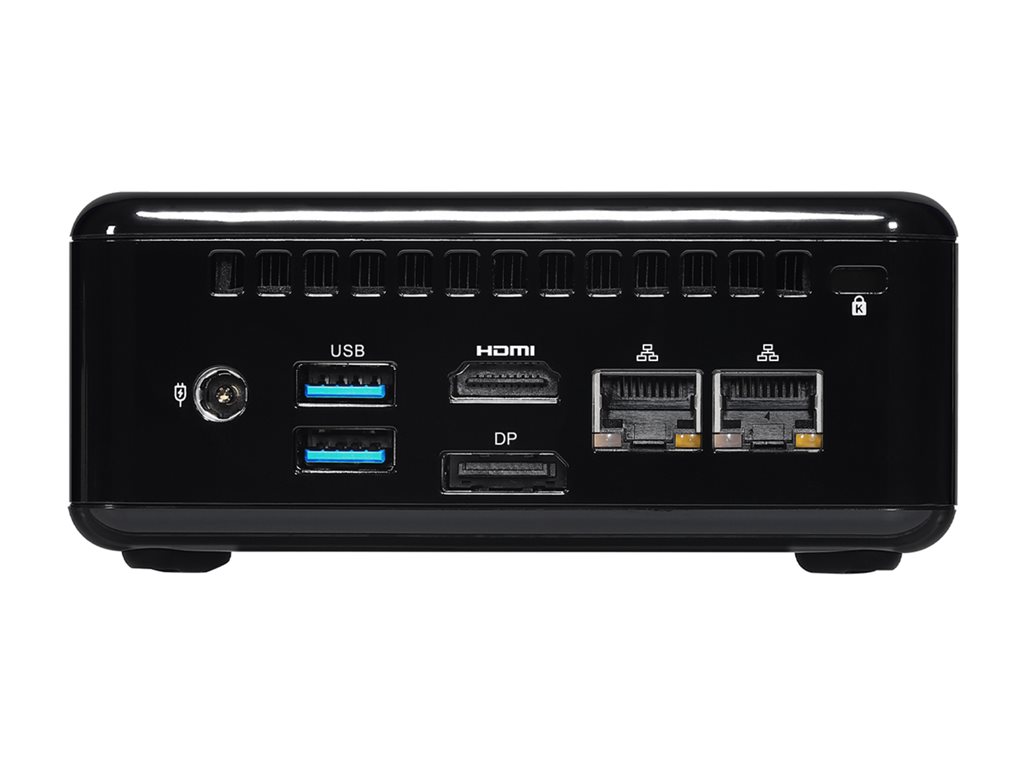

| Interfaces | 1 x HDMI (1 rear) ¦ 1 x DisplayPort 1.4a (1 rear) ¦ 3 x USB 3.2 Gen 2 (1 front, 2 rear) ¦ 1 x Thunderbolt 4/DisplayPort 1.4a/USB4 (1 front) ¦ 1 x DisplayPort1.4a/USB-C 3.2 Gen 2 (1 front) ¦ 1 x headphones/microphone (1 front) ¦ 2 x LAN (2.5Gigabit Ethernet) (2 rear) |
| Miscellaneous | |
| Included Accessories | Power adapter, VESA bracket |
| Compliant Standards | FCC |
| RAM | |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 2 (empty) |
| Networking | |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, Bluetooth 5.3, Ethernet, Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Power Provided | 90 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 4.6 in |
| Height | 1.9 in |
| Weight | 2.2 lbs |
| Processor / Chipset | |
| CPU | Intel Core i5 (12th Gen) 1240P |
| Max Turbo Speed | 4.4 GHz (P-core) / 3.3 GHz (E-core) |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
