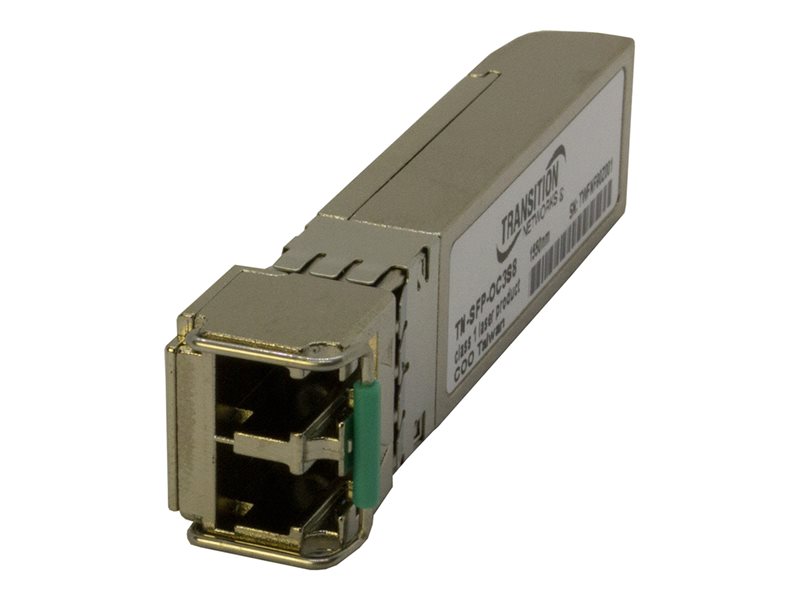

SFP (mini-GBIC) transceiver module - 100Mb LAN - 100Base-FX - LC single-mode - up to 49.7 miles - 1550 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix TN-SFP-OC3Sx Series - SFP (mini-GBIC) transceiver module - 100Mb LAN - TAA Compliant |
| Device Type | SFP (mini-GBIC) transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 100Base-FX |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1550 nm |
| Data Link Protocol | 100Mb LAN |
| Max Transfer Distance | 49.7 miles |
| Dimensions (WxDxH) | 0.5 in x 2.2 in x 0.3 in |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100Base-FX - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, MSA, IEC 60825, CFR 1040.10, CFR 1040.11, FDA 21 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100Base-FX |
| Data Link Protocol | 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1550 nm |
| Max Transfer Distance | 49.7 miles |
| Features | Digital Diagnostic Function (DMI), 29 dB link budget, hot-pluggable |
| Compliant Standards | IEEE 802.3 |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.2 in |
| Height | 0.3 in |
