Motherboard - micro ATX - LGA1700 Socket - C266 Chipset - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN, 2 x Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

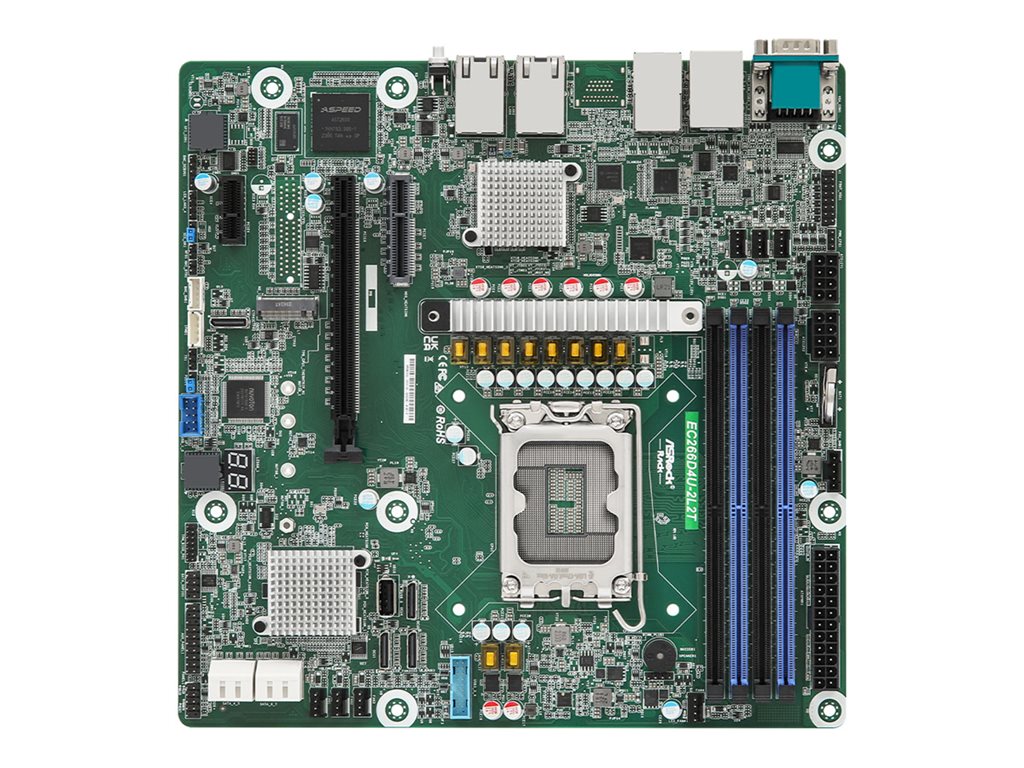

| Product Description | ASRock Rack EC266D4U-2L2T - motherboard - micro ATX - LGA1700 Socket - C266 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C266 |
| Processor Socket | 1 x LGA1700 Socket |
| Compatible Processors | Xeon, Pentium Gold |
| Max RAM Size | 32 GB |
| RAM Supported | 4 DIMM slots - DDR5, ECC, unbuffered |
| Storage Ports | 8 x SATA-600 (RAID), 2 x SATA-600, 1 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (2 x USB 3.1 Gen 1 + 2 x USB 2.0 via headers) |
| Graphics | ASPEED AST2600 |
| LAN | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel C266 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Xeon, Pentium Gold |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot) ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x4 ¦ 1 x PCIe 4.0 x1 |
| Storage Interfaces | Intel C266: SATA-600 -connectors: 1 x OCuLink - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x VGA ¦ 1 x serial ¦ 2 x USB 3.2 Gen 1 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x IPMI ¦ 2 x LAN (10Gigabit Ethernet) |
| Internal Interfaces | 1 x VGA - header ¦ 1 x speaker - header ¦ 1 x SPI - header ¦ 1 x SGPIO - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Width | 9.6 in |
| Depth | 9.6 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | ACPI 6.4 support, SMBIOS 2.8 support |
| Hardware Monitoring | CPU core temperature, CPU fan tachometer, fan control, system voltage, opened case detection |
| Hardware Features | ASRock Rack Instant Flash |
| LAN | |
| Network Controller | Intel I210 / Intel X710 |
| Network Interfaces | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Max Size | 32 GB |
| Technology | DDR5 |
| Bus Clock | 4400 MT/s, 4000 MT/s, 3600 MT/s |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
