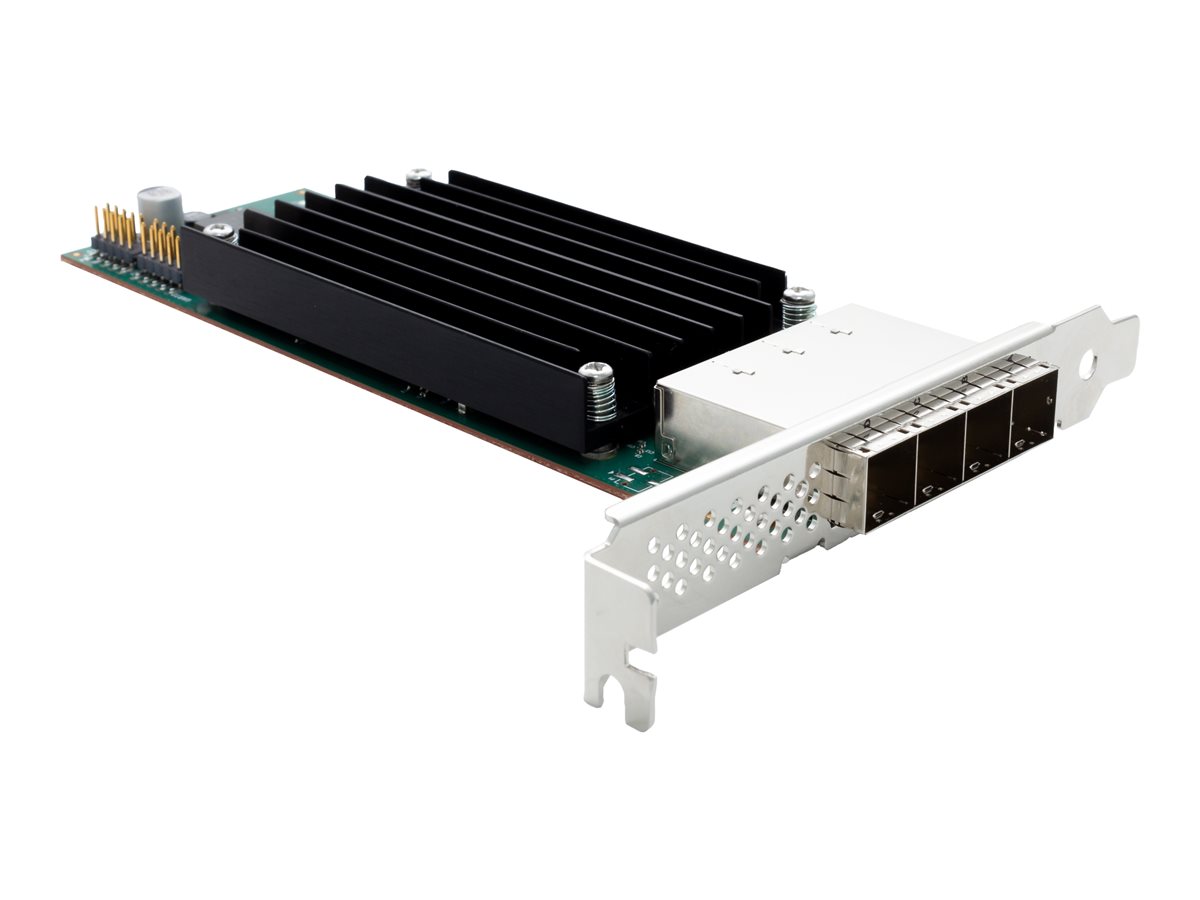

Storage controller - 16 Channel - SATA 6Gb/s / SAS 24Gb/s - low profile - RAID 0, 1, 10, 1E - PCIe 4.0 x16
| Main Specifications | |
|---|---|
| Product Description | ATTO ExpressSAS 24F0 - storage controller - SATA 6Gb/s / SAS 24Gb/s - PCIe 4.0 x16 |
| Device Type | Storage controller - plug-in card - low profile |
| Bus Type | PCIe 4.0 x16 |
| Interface | SATA 6Gb/s / SAS 24Gb/s |
| Data Transfer Rate | 24 Gbit/s |
| Channel Qty | 16 |
| Max Storage Devices Qty | 2048 |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 1E |
| Package Type | OEM |
| System Requirements | Microsoft Windows Server, Apple MacOS, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Rocky Linux, Ubuntu, VMware ESXi |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Storage controller - plug-in card - low profile |
| Host Bus | PCIe 4.0 x16 |
| Expansion / Connectivity | |
| Interfaces | 16 x SATA 6Gb/s / SAS 24Gb/s - Mini SAS HD (SFF-8674) (external) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Advanced Data Streaming (ADS), LED indicator |
| MTBF | 4,500,000 hours |
| Compliant Standards | IEC 62368-1, RoHS, RoHS 2 (2011/65/EU), Directive 2015/863, EMC, FCC Part 15, ICES-003, EN55032:2015, CISPR 32:2015, VCCI 32-1 |
| Package Type | OEM |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server, Apple MacOS, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Rocky Linux, Ubuntu, VMware ESXi |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Interface | SATA 6Gb/s / SAS 24Gb/s |
| Data Transfer Rate | 24 Gbit/s |
| Channel Qty | 16 |
| Max Storage Devices Qty | 2048 |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 1E |
| Dimensions & Weight | |
| Depth | 6.6 in |
| Height | 2.7 in |
