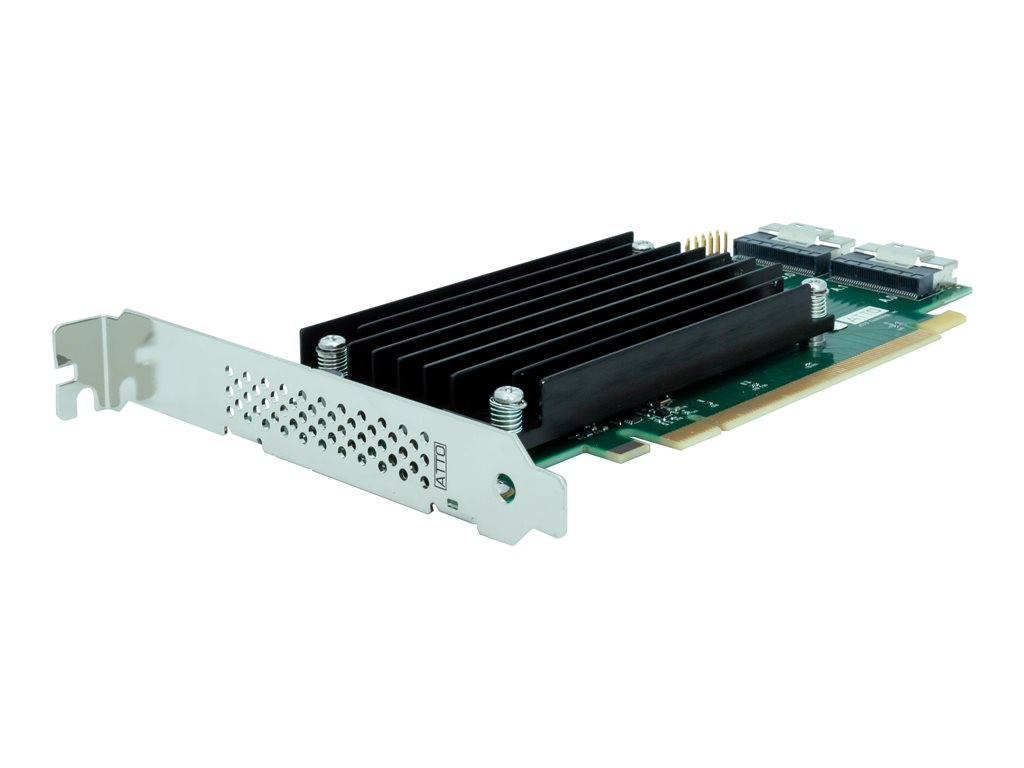

Storage controller - 16 Channel - SATA 6Gb/s / SAS 24Gb/s - low profile - RAID 0, 1, 10, 1E - PCIe 4.0 x16
| Main Specifications | |
|---|---|
| Product Description | ATTO ExpressSAS H240F - storage controller - SATA 6Gb/s / SAS 24Gb/s - PCIe 4.0 x16 |
| Device Type | Storage controller - plug-in card - low profile |
| Bus Type | PCIe 4.0 x16 |
| Interface | SATA 6Gb/s / SAS 24Gb/s |
| Data Transfer Rate | 24 Gbit/s |
| Channel Qty | 16 |
| Max Storage Devices Qty | 2048 |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 1E |
| Package Type | OEM |
| System Requirements | Microsoft Windows Server, Apple MacOS, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Rocky Linux, Ubuntu, VMware ESXi |
| General | |
| Device Type | Storage controller - plug-in card - low profile |
| Host Bus | PCIe 4.0 x16 |
| Expansion / Connectivity | |
| Interfaces | 16 x SATA 6Gb/s / SAS 24Gb/s - SFF-8654 4i (internal) |
| Miscellaneous | |
| Features | Advanced Data Streaming (ADS), LED indicator |
| MTBF | 4,500,000 hours |
| Compliant Standards | IEC 62368-1, RoHS, RoHS 2 (2011/65/EU), Directive 2015/863, EMC, FCC Part 15, ICES-003, EN55032:2015, CISPR 32:2015, VCCI 32-1 |
| Package Type | OEM |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server, Apple MacOS, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Rocky Linux, Ubuntu, VMware ESXi |
| Storage Controller | |
| Interface | SATA 6Gb/s / SAS 24Gb/s |
| Data Transfer Rate | 24 Gbit/s |
| Channel Qty | 16 |
| Max Storage Devices Qty | 2048 |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 1E |
