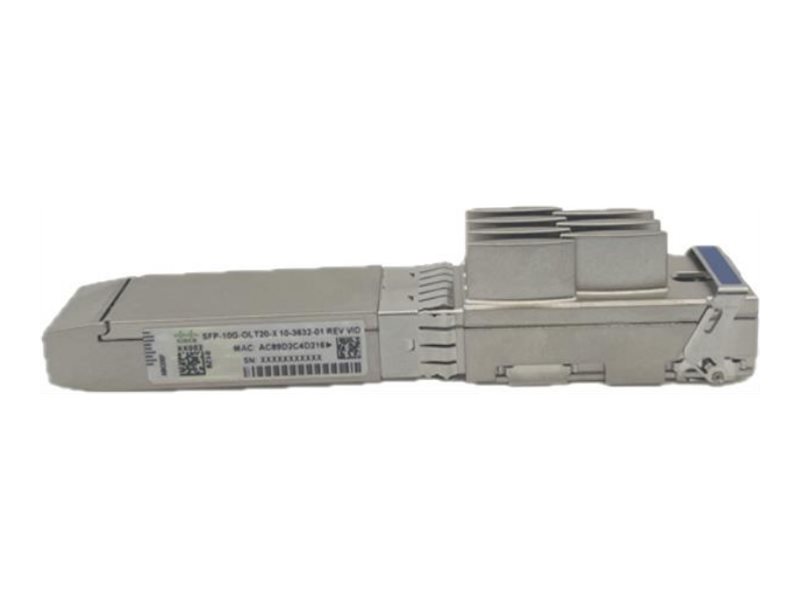

SFP+ transceiver module - 10GbE - SC/UPC single-mode - up to 12.4 miles - 1577 (TX) / 1270 (RX) nm
| Main Specifications | |
|---|---|
| Product Description | Cisco - SFP+ transceiver module - 10GbE |
| Device Type | SFP+ transceiver module - SC/UPC single-mode |
| Form Factor | Plug-in module |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1577 (TX) / 1270 (RX) nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 12.4 miles |
| Dimensions (WxDxH) | 0.5 in x 3.2 in x 0 in |
| Weight | 2.65 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x 10Gb Ethernet - SC/UPC single-mode |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years |
| Miscellaneous | |
| Compliant Standards | UL, IEC 61000-4-3, FCC Part 15 B, Laser Class 1, RoHS, GR-326-CORE, MIL-STD-202G, GR-63-CORE, ITU-T G.652, EN 55032, ITU-T G.988, ITU-T G.9807.1, GR-468-CORE, Issue 2, MIL-STD-883K |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1577 (TX) / 1270 (RX) nm |
| Max Transfer Distance | 12.4 miles |
| Features | Digital Optical Monitoring (DOM) support, E-Temp, blue pull tab, Electro-absorption Modulated Laser (EML), 1:128 split ratio, 9µm core size, N2 class transceiver |
| Power | |
| Power Consumption Operational | 2.475 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 167 °F |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 3.2 in |
| Height | 0 in |
| Weight | 2.65 oz |
