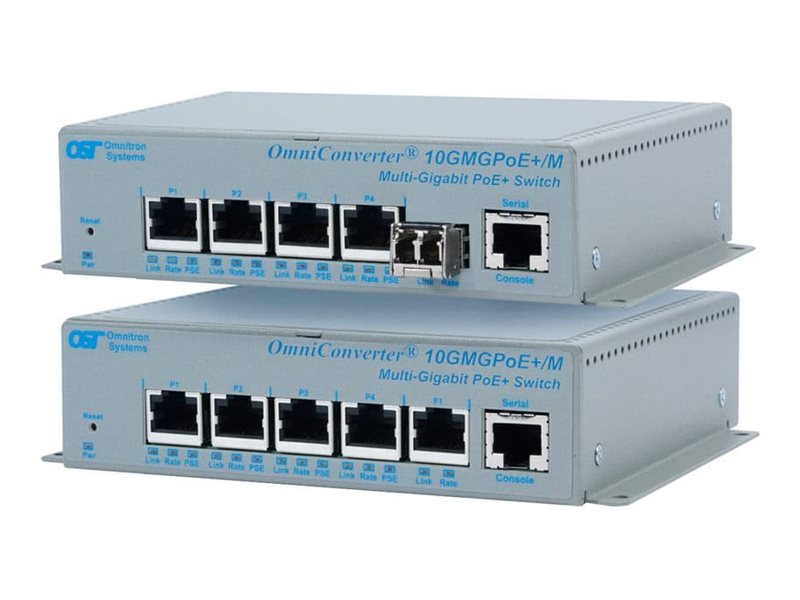

Switch - managed - 1 x 10 Gigabit SFP+ + 2 x 100/1000/2.5G/5G/10GBase-T + 2 x 10/100/1000 - rack-mountable, wall-mountable, DIN rail mountable - PoE+ (30 W) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Omnitron OmniConverter 9656-0-14-9 - switch - 4 ports - managed - rack-mountable - TAA Compliant |
| Device Type | Switch - 4 ports - managed |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 1 x 10 Gigabit SFP+ + 2 x 100/1000/2.5G/5G/10GBase-T + 2 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 30 W |
| Jumbo Frame Support | 10240 bytes |
| Routing Protocol | IGMP, MLD |
| Remote Management Protocol | IPv4, IPv6, DHCP, Telnet, SSH, SNMP 1, SNMP 2, SNMP 3 |
| Features | E-mail notification, ACL support, VLAN Tagging, VLAN Q-in-Q, DHCPv6 relay, rate limit, CoS, Static MAC setting, HeartBeat Technology, SNMP support |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab (LLDP) |
| Dimensions (WxDxH) | 6.3 in x 5.2 in x 1.5 in |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Switch - 4 ports - managed |
| Enclosure Type | Rack-mountable, wall-mountable, DIN rail mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 1 x 10 Gigabit SFP+ + 2 x 100/1000/2.5G/5G/10GBase-T + 2 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 30 W |
| Jumbo Frame Support | 10240 bytes |
| Routing Protocol | IGMP, MLD |
| Remote Management Protocol | IPv4, IPv6, DHCP, Telnet, SSH, SNMP 1, SNMP 2, SNMP 3 |
| Authentication Method | RADIUS, TACACS+ |
| Features | E-mail notification, ACL support, VLAN Tagging, VLAN Q-in-Q, DHCPv6 relay, rate limit, CoS, Static MAC setting, HeartBeat Technology, SNMP support |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab (LLDP) |
| Expansion / Connectivity | |
| Interfaces | 2 x 100/1000/2.5G/5G/10GBase-T RJ-45 PoE+ - 30 W ¦ 2 x 10/100/1000 Base-T RJ-45 30 W ¦ 1 x 10Gbit LAN SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | BAA, NDAA, UL 62368-1, UL 60950-1, IEC 62368-1, IEC 60950-1, EN 62368-1, EN 60950-1, CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1, UKCA, EN 55032/24, IEC 61000-6-4, IEC 61000-6-2, CISPR 32, FCC 47 CFR Part 15 Subpart B Class A, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IP20, REACH, RoHS, WEEE |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 176 °F |
| Dimensions & Weight | |
| Width | 6.3 in |
| Depth | 5.2 in |
| Height | 1.5 in |
