Switch - managed - 2 x 100/1000/2.5G/5G/10GBase-T + 2 x 10/100/1000 + 1 x 10 Gigabit SFP+ - rack-mountable, wall-mountable, DIN rail mountable - TAA Compliant
| Main Specifications | |
|---|---|

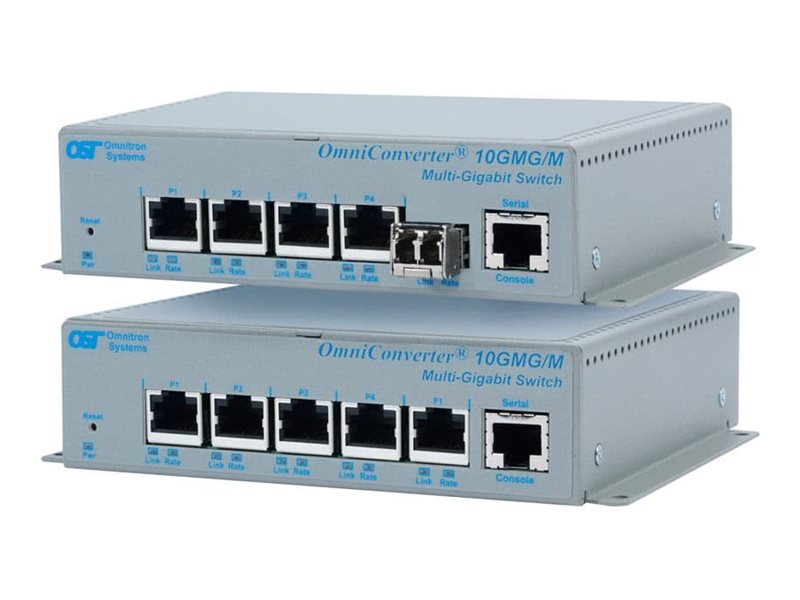

| Product Description | Omnitron OmniConverter 9655-0-14-9 - switch - 5 ports - managed - rack-mountable - TAA Compliant |
| Device Type | Switch - 5 ports - managed |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 2 x 100/1000/2.5G/5G/10GBase-T + 2 x 10/100/1000 + 1 x 10 Gigabit SFP+ |
| Routing Protocol | IGMP, MLD |
| Remote Management Protocol | IPv4, IPv6, DHCP, Telnet, SSH, SNMP 1, SNMP 2, SNMP 3, WEB |
| Features | E-mail notification, ACL support, VLAN Tagging, VLAN Q-in-Q, DHCPv6 relay, rate limit, CoS, Static MAC setting, SNMP support |
| Compliant Standards | IEEE 802.3, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1x |
| Dimensions (WxDxH) | 6.3 in x 5.2 in x 1.5 in |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Switch - 5 ports - managed |
| Enclosure Type | Rack-mountable, wall-mountable, DIN rail mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 2 x 100/1000/2.5G/5G/10GBase-T + 2 x 10/100/1000 + 1 x 10 Gigabit SFP+ |
| Routing Protocol | IGMP, MLD |
| Remote Management Protocol | IPv4, IPv6, DHCP, Telnet, SSH, SNMP 1, SNMP 2, SNMP 3, WEB |
| Authentication Method | RADIUS, TACACS+ |
| Features | E-mail notification, ACL support, VLAN Tagging, VLAN Q-in-Q, DHCPv6 relay, rate limit, CoS, Static MAC setting, SNMP support |
| Compliant Standards | IEEE 802.3, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1x |
| Expansion / Connectivity | |
| Interfaces | 2 x 100/1000/2.5G/5G/10GBase-T RJ-45 ¦ 2 x 10/100/1000 Base-T RJ-45 ¦ 1 x 10Gbit LAN SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | BAA, NDAA, IP20, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-2, IEC 61000-4-3, FCC 47 CFR Part 15 Subpart B Class A, CISPR 32, IEC 61000-6-4, IEC 61000-6-2, EN 55032/24, UKCA, CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1, EN 62368-1, EN 60950-1, IEC 62368-1, IEC 60950-1, UL 62368-1, UL 60950-1 |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 176 °F |
| Dimensions & Weight | |
| Width | 6.3 in |
| Depth | 5.2 in |
| Height | 1.5 in |
