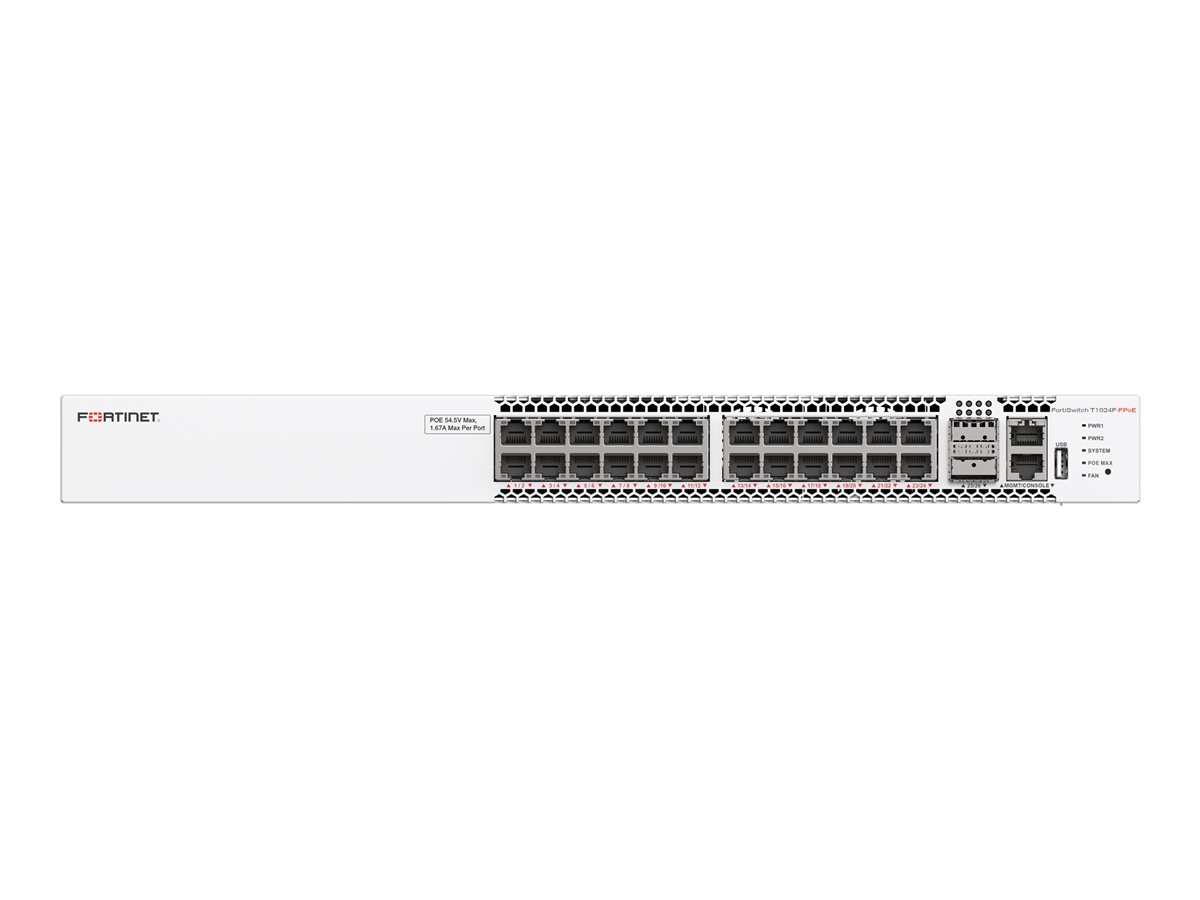

Switch - L3 - managed - 24 x 10/100/1000/2.5G (PoE++) + 2 x 1/10/25/40/100 Gigabit QSFP28 - front to back airflow - rack-mountable - PoE++ (1440 W)
| Main Specifications | |
|---|---|
| Product Description | Fortinet FortiSwitch T1024F-FPOE - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 10/100/1000/2.5G (PoE++) + 2 x 1/10/25/40/100 Gigabit QSFP28 |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 1440 W |
| Performance | Switching capacity: 880 Gbps ¦ Packets per second: 1309 Mpps ¦ Latency: < 1 µs |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ Link aggregation groups: up to 24 ¦ Packet buffer size: 8 MB ¦ ACL: 3000 ¦ Spanning Tree Protocol instances: 64 ¦ IPv4 routing entries: 24000 ¦ IPv6 routing entries: 12000 ¦ IP multicast entries: 8000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, IS-IS, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SSM, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), URPF, MSTP |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, Syslog |
| Features | Auto-negotiation, VLAN support, WOL, IGMP snooping, port mirroring, automatic topology detection, High Availability, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, STP Root Guard, DHCP relay, RSPAN, IP-MAC binding, NAC, IGMP proxy, 802.1x authentication, PTP, MACsec support, Storm Control, IP source guard, ARP inspection, IGMP querier, Loop Guard, Private VLAN, RA guard, STP BPDU Guard, ERSPAN, port trunking, MAB, SPAN mode, MLD querier, Auto MDIX, VLAN / port mapping, MAC black/whitelist, FTP support, RPVST |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3bt |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 16.1 in x 1.7 in |
| Weight | 16.53 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 10/100/1000/2.5G (PoE++) + 2 x 1/10/25/40/100 Gigabit QSFP28 |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 1440 W |
| Performance | Switching capacity: 880 Gbps ¦ Packets per second: 1309 Mpps ¦ Latency: < 1 µs |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ Link aggregation groups: up to 24 ¦ Packet buffer size: 8 MB ¦ ACL: 3000 ¦ Spanning Tree Protocol instances: 64 ¦ IPv4 routing entries: 24000 ¦ IPv6 routing entries: 12000 ¦ IP multicast entries: 8000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, IS-IS, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SSM, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), URPF, MSTP |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, Syslog |
| Features | Auto-negotiation, VLAN support, WOL, IGMP snooping, port mirroring, automatic topology detection, High Availability, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, STP Root Guard, DHCP relay, RSPAN, IP-MAC binding, NAC, IGMP proxy, 802.1x authentication, PTP, MACsec support, Storm Control, IP source guard, ARP inspection, IGMP querier, Loop Guard, Private VLAN, RA guard, STP BPDU Guard, ERSPAN, port trunking, MAB, SPAN mode, MLD querier, Auto MDIX, VLAN / port mapping, MAC black/whitelist, FTP support, RPVST |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3bt |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 MB |
| Status Indicators | System, fan, link/activity/speed, power 1, power 2, PoE max |
| Expansion / Connectivity | |
| Interfaces | 24 x 1/2.5GBase-T RJ-45 ¦ 2 x 40/100GBase-X QSFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | >10 years |
| Compliant Standards | UL, VCCI, BSMI, CB, FCC, RoHS2, RCM |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 16.1 in |
| Height | 1.7 in |
| Weight | 16.53 lbs |
