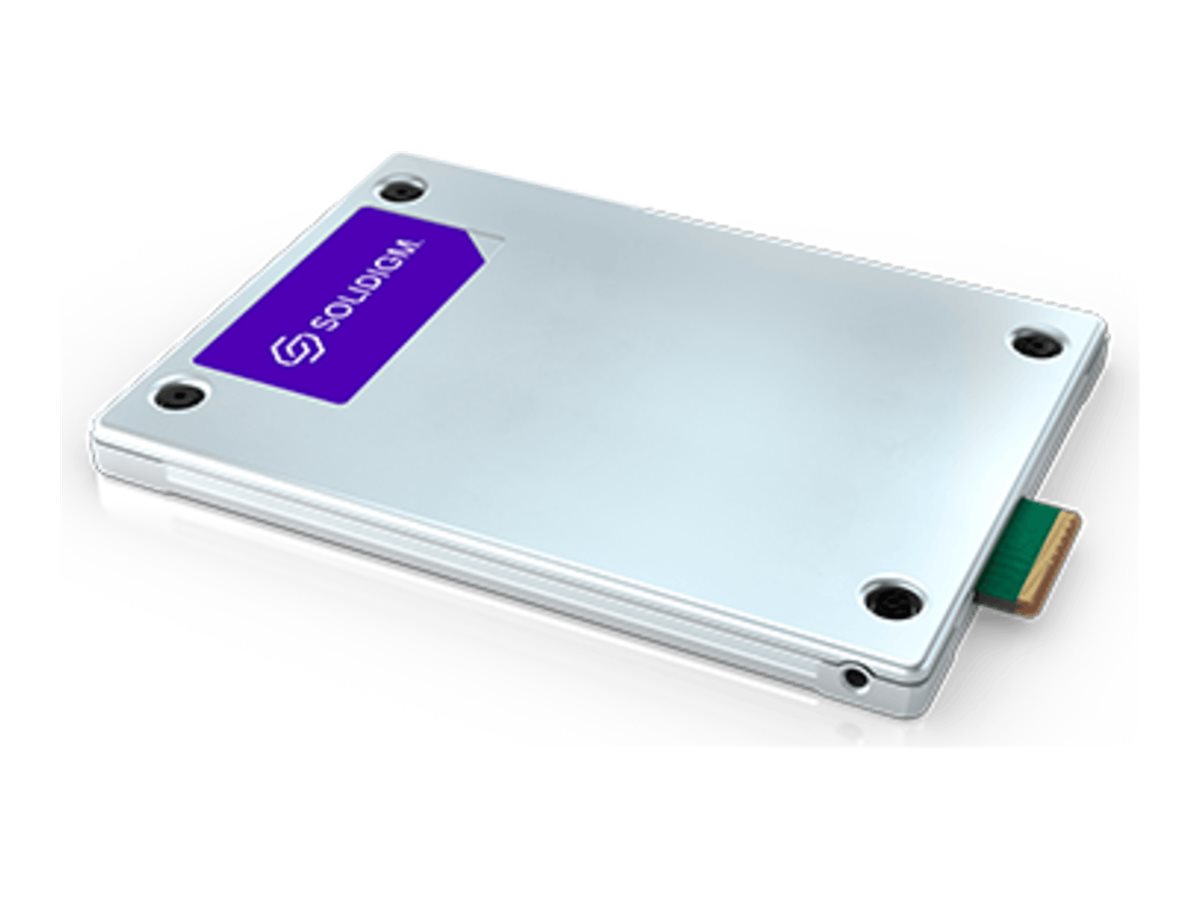

SSD - Enterprise - encrypted - 15.36 TB - internal - E3.S - PCIe 4.0 x4 (NVMe) - FIPS 140-3 Level 2 - FIPS (Federal Information Processing Standards)
| Main Specifications | |
|---|---|
| Product Description | Solidigm D5 Series D5-P5336 - SSD - Enterprise - 15.36 TB - PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 15.36 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | FIPS 140-3 Level 2 |
| NAND Flash Memory Type | 3D quad-level cell (QLC) |
| Form Factor | E3.S |
| Interface | PCIe 4.0 x4 (NVMe) |
| Drive Class | Enterprise |
| Features | 3D QLC NAND, High Endurance, quad-level cell (QLC), NVMe 2.0 |
| Weight | 3.17 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 15.36 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | FIPS 140-3 Level 2 |
| NAND Flash Memory Type | 3D quad-level cell (QLC) |
| Form Factor | E3.S |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | 3D QLC NAND, High Endurance, quad-level cell (QLC), NVMe 2.0 |
| Weight | 3.17 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | EMCD 2014/30/EU, EN 55022:2010, EN 55024:2010+A1:2015, EN 55032:2015+A11:2020, EN 55035:2017/A11:2020, EN 61000-3-2:2014, EN 61000-3-3:2013, LVD 2014/35/EU, EN 62368-1:2020+A11:2020, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, EN 62368-1:2014+A11:2017, ROHS Directive 2011/65/EU, EN/IEC 63000:2018, UK SI 2016 No. 1091, UK SI 2016 No. 1101, UK SI 2012 No. 3032, IEC 61000-4-11:2004, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-8:2009, CISPR 22:2005+AMD 1:2005-07, CISPR 24 Ed 2.1:2015-04, AS/NZS CISPR 32:2015, ICES-003 Class B, FCC Part 15 Subpart B Class B, KS C 9832:2019, KS C 9835:2019, CNS13438:2006, VCCI 32-1:2016 (CISPR 32), ICC, UKCA, cRUus, VCCI, WEEE, RoHS, CAN ICES-3(A)/NMB3(A), CISPR 22, ECCN: 5A992c |
| Power | |
| Power Consumption | 21 watt (active) ¦ 5 watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Shock Tolerance (non-operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 gRMS @ 5-700 Hz |
| Vibration Tolerance (non-operating) | 3.13 gRMS @ 5-800 Hz |
| Performance | |
| Drive Writes Per Day (DWPD) | 0.51 |
| SSD Endurance | 14.11 PB |
| Drive Class | Enterprise |
| Internal Data Rate | 7000 MBps (read) / 3000 MBps (write) |
| 4KB Random Read | 1005000 IOPS |
| 4KB Random Write | 29900 IOPS |
| Maximum 4KB Random Read | 1005000 IOPS |
| Average Latency | 10 ?s |
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| Compatible Bay | E3.S |
