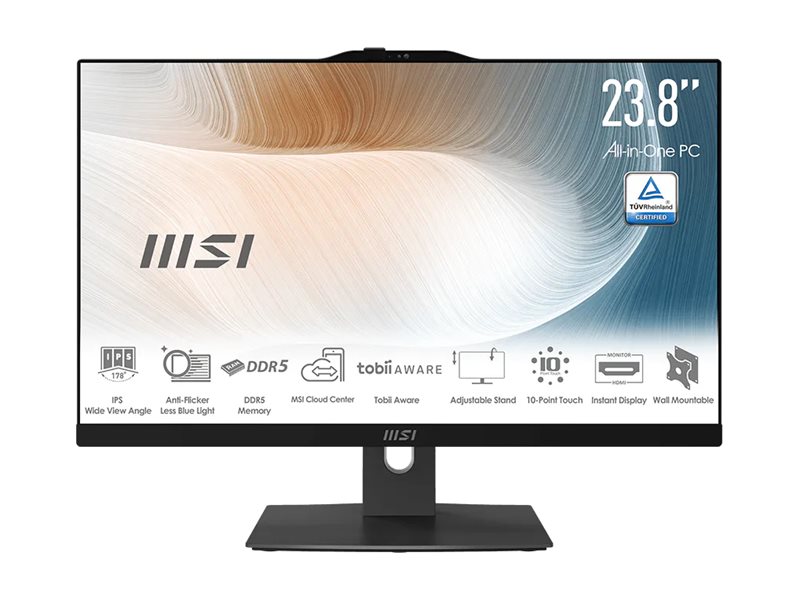

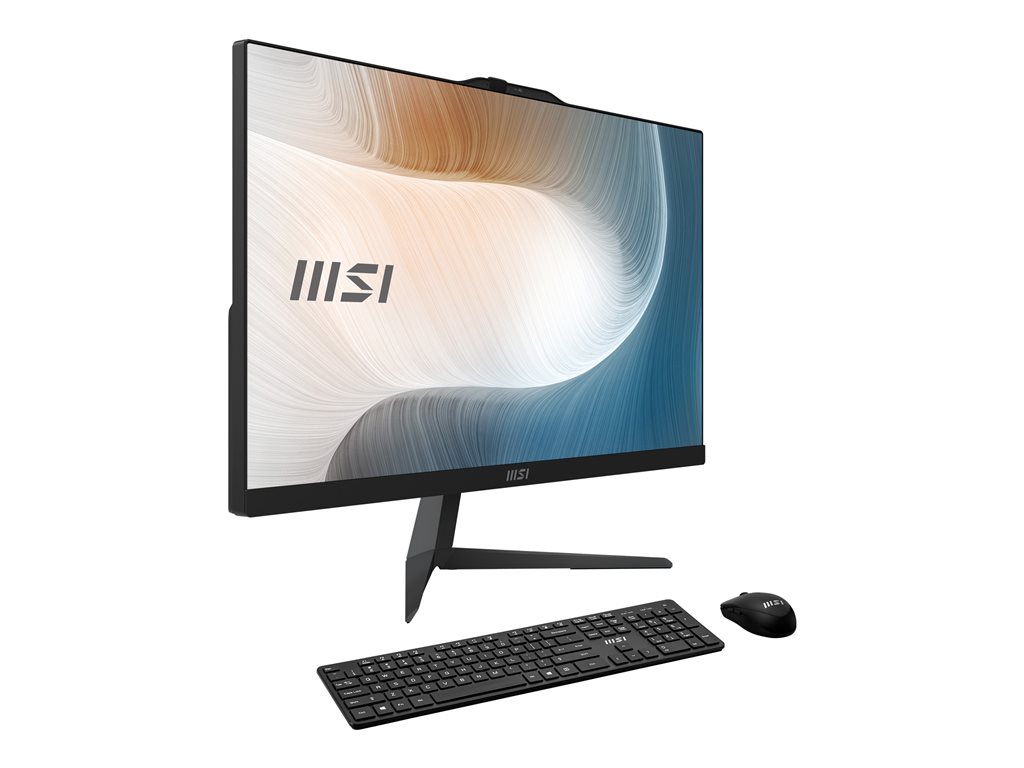

All-in-one Core 5 120U / up to 5 GHz - RAM 16 GB - SSD 1 TB - NVMe - Intel Graphics - IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, Gigabit Ethernet - Win 11 Home - monitor: LED 23.8" 1920 x 1080 (Full HD) touchscreen - black
| Main Specifications | |
|---|---|
| Product Description | MSI Modern AM242TP 1M 1096US - all-in-one Core 5 120U 1.4 GHz - 16 GB - SSD 1 TB - LED 23.8" |
| Type | Personal computer - all-in-one |
| Processor | Intel Core 5 (Series 1) 120U / 1.4 GHz (up to 5 GHz, (10-core) |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 x4 - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Monitor | 23.8" - LED - 1920 x 1080 (Full HD) - touchscreen |
| Graphics Controller | Intel Graphics |
| Camera | Yes |
| Audio Output | Stereo |
| Networking | 802.11a, Wi-Fi 5, Wi-Fi 6E, 802.11b/g/n, Bluetooth 5.3, 1GbE |
| OS Provided | Windows 11 Home |
| Color | Black |
| Dimensions (WxDxH) | 21.3 in x 7.7 in x 7.7 in |
| Weight | 13.56 lbs |
| Manufacturer Warranty | Limited warranty - 1 year |
| General | |
| Type | Personal computer |
| Product Form Factor | All-in-one - with adjustable stand |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x M.2 Card |
| Interfaces | 1 x headphones/microphone ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x HDMI output ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x HDMI input ¦ 2 x USB-C 3.2 Gen 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 75 x 75 mm |
| RAM | |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MHz |
| Rated Memory Speed | 5600 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 0 (empty) |
| Configuration Features | 2 x 8 GB |
| Networking | |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.3, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Power Provided | 120 watt |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED - IPS |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 23.8" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Image Brightness | 250 cd/m² |

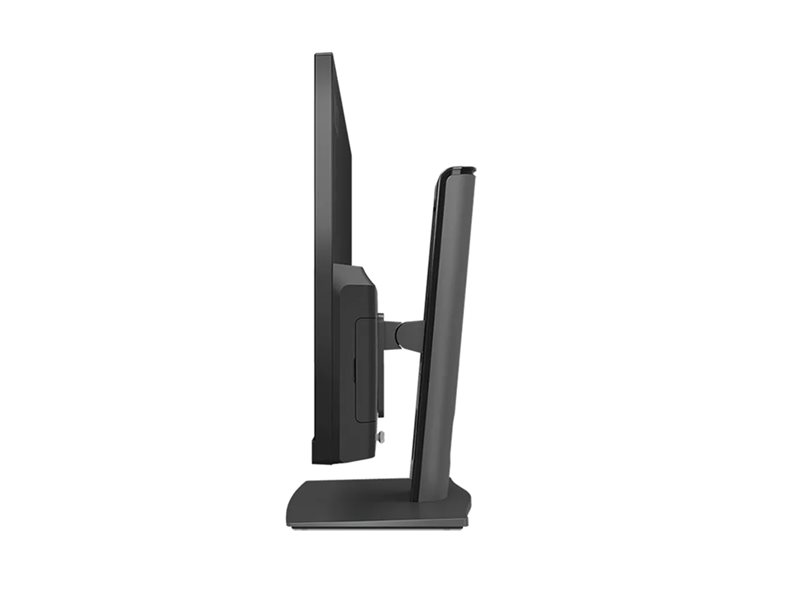

| Monitor Features | Matte, adjustable height (130 mm), tilt stand (-5°- 20°) |
| Graphics Controller | |
| Graphics Processor | Intel Graphics |
| Video Interfaces | HDMI |
| Audio Output | |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Operating System / Software | |
| OS Provided | Windows 11 Home |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 x4 |
| Features | NVM Express (NVMe) |
| Camera | |
| Camera | Yes |
| Resolution | Full HD |
| Features | Windows Hello |
| Input Device | |
| Type | Keyboard, mouse |
| Dimensions & Weight | |
| Width | 21.3 in |
| Depth | 7.7 in |
| Height | 7.7 in |
| Weight | 13.56 lbs |
| Keyboard | |
| Connectivity | Wireless |
| Mouse | |
| Connectivity | Wireless |
| Processor / Chipset | |
| CPU | Intel Core 5 (Series 1) 120U |
| Clock Speed | 1.4 GHz (P-core) / 900 MHz (E-core) |
| Max Turbo Speed | 5 GHz (P-core) / 3.8 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
