Power distribution unit - AC 240/415 V - 22 kW - 3-phase / 1-phase - Ethernet 10/100/1000, USB, RS-232 - input: universal inlet - output connectors: 30 (18 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - black powder coat - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Geist Switched Outlet Level Monitoring DUU5M4W1-30PHB7-2S02A9K00-S-A - power distribution unit - 22 kW - TAA Compliant |
| Device Type | Power distribution unit |
| Rack Size | 0U |
| Input Wiring | 3-phase / 1-phase |
| Input Voltage | AC 240/415 V |
| Power Capacity | 22 kW |
| Input Connectors | 1 x universal inlet |
| Output connectors | 18 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C19 |
| Networking | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP, JSON |
| Color | Black powder coat |
| TAA Compliant | TAA Compliant |
| Dimensions (WxDxH) | 2 in x 2.6 in x 72 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power distribution unit |
| Height (Rack Units) | 0U |
| Color | Black powder coat |
| Expansion / Connectivity | |

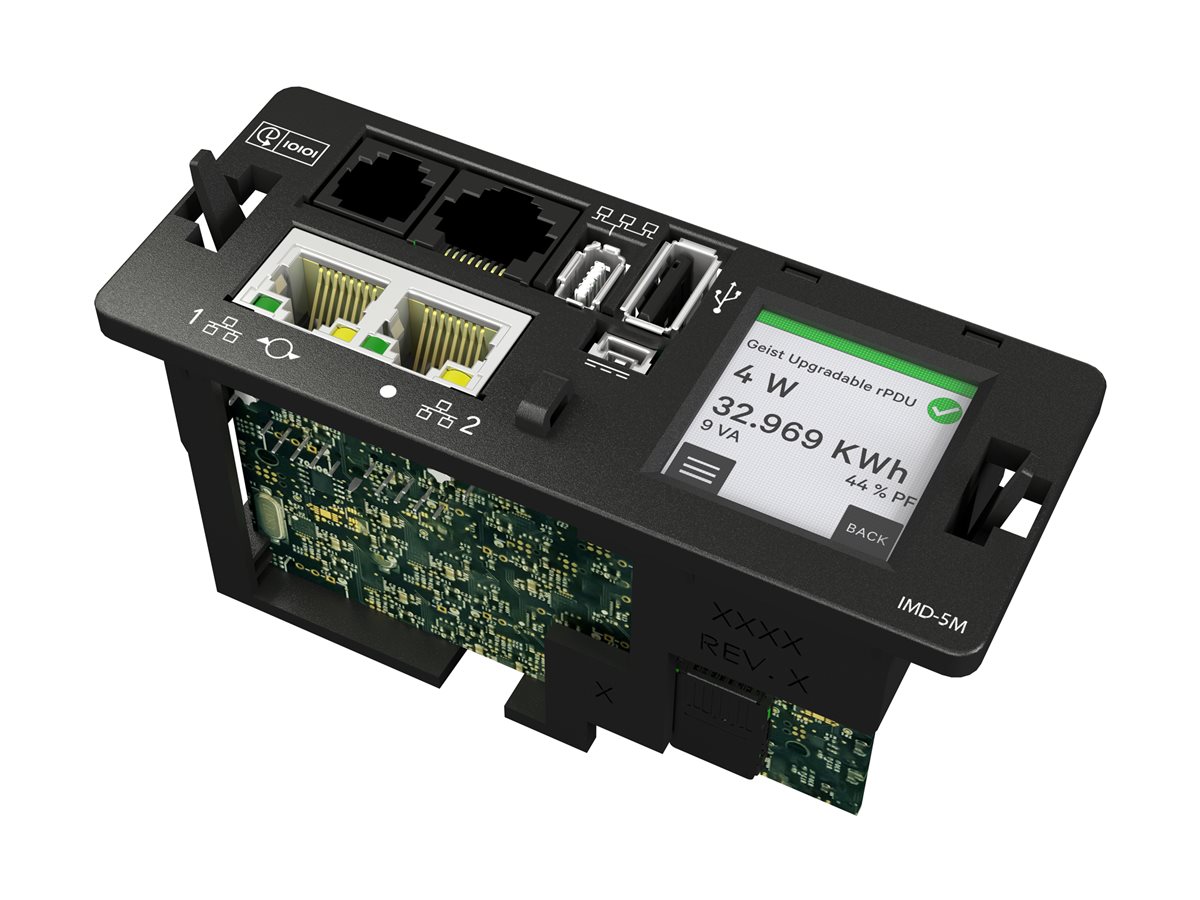

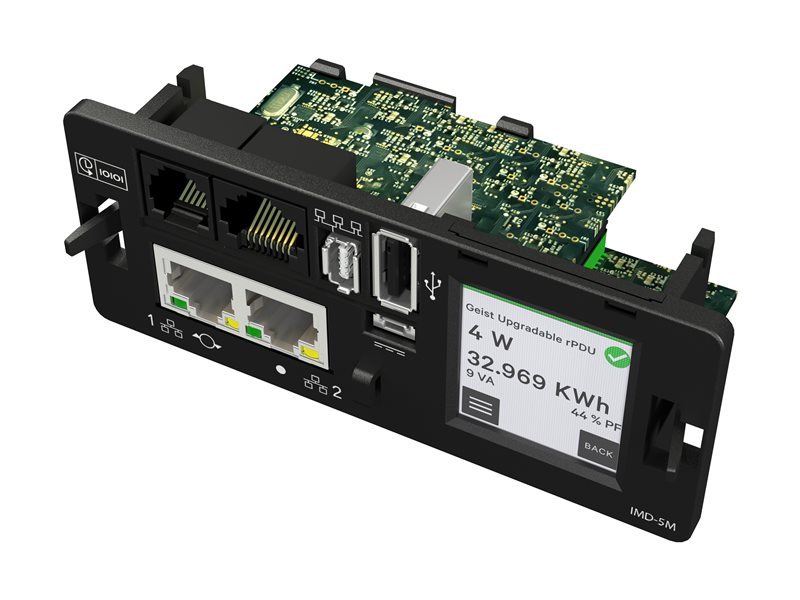

| Interfaces | 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x sensor ¦ 1 x RS-232 - RJ-45 ¦ 1 x USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Features | Vertical orientation, breaker/switch combination, LED display, circuit/breaker current monitoring, IP reset button, hard reboot button, 6 x 16A double pole magnetic breakers |
| Compliant Standards | UKCA, IEC 62368-1, EN 55032, EN 55035, RoHS, FCC Part 15 A, RCM, China RoHS, UL, C-UL, UL 62368-1 |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP, JSON |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Power Device | |
| Input Voltage | AC 240/415 V |
| Input Wiring | 3-phase / 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x universal inlet |
| Power Output Connectors Details | 18 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C19 |
| Max Electric Current | 63 A |
| Power Capacity | 22 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 2.6 in |
| Height | 72 in |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 25 lbs |
