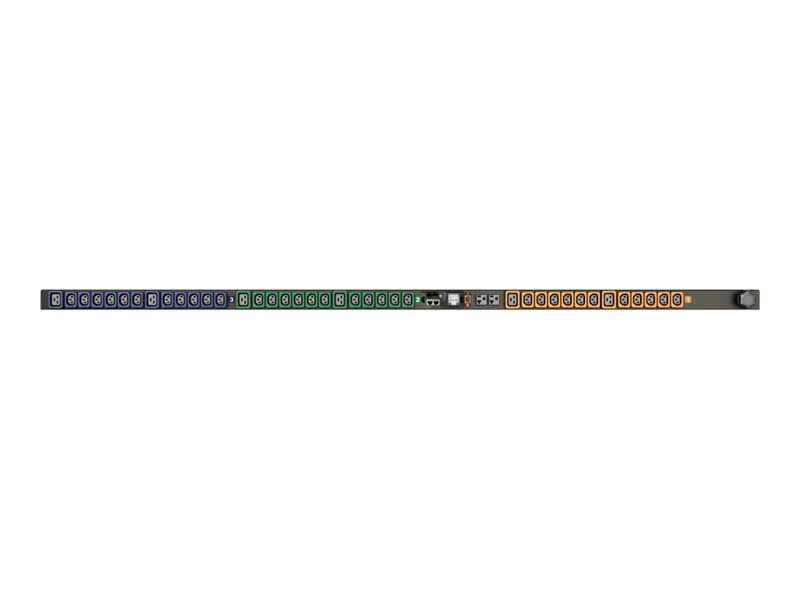

Power distribution unit (rack-mountable) - AC 120/208 V - 5.7 kW - 3-phase WYE - Ethernet 10/100/1000, USB, RS-232 - input: NEMA L21-20P - output connectors: 41 (33 x IEC 60320 C13, 6 x IEC 60320 C19, 2 x NEMA 5-20R) - 10 ft cord - black powder coat - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Geist Monitored Unit Level MN05M4W0-41ML59-2TL21A0A10-S - power distribution unit - 5.7 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Input Wiring | 3-phase WYE |
| Input Voltage | AC 120/208 V |
| Power Capacity | 5.7 kW |
| Input Connectors | 1 x power NEMA L21-20P |
| Output connectors | 33 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 ¦ 2 x power NEMA 5-20R |
| Networking | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP, JSON |
| Color | Black powder coat |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 2 in x 2 in x 72 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Color | Black powder coat |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x sensor ¦ 1 x RS-232 - RJ-45 ¦ 1 x USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Vertical orientation, LED display, internal RMS current sensor, internal RMS voltage sensor, IP reset button, hard reboot button |
| Compliant Standards | RoHS, FCC Part 15 A, C-UL, UL, UL 62368-1 |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP, JSON |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Power Device | |
| Input Voltage | AC 120/208 V |
| Input Voltage Range | AC 100 - 120 / 200 - 240 V |
| Input Wiring | 3-phase WYE |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-20P |
| Power Output Connectors Details | 33 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 ¦ 2 x power NEMA 5-20R |
| Max Electric Current | 20 A |
| Power Capacity | 5.7 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 2 in |
| Height | 72 in |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 16.01 lbs |
