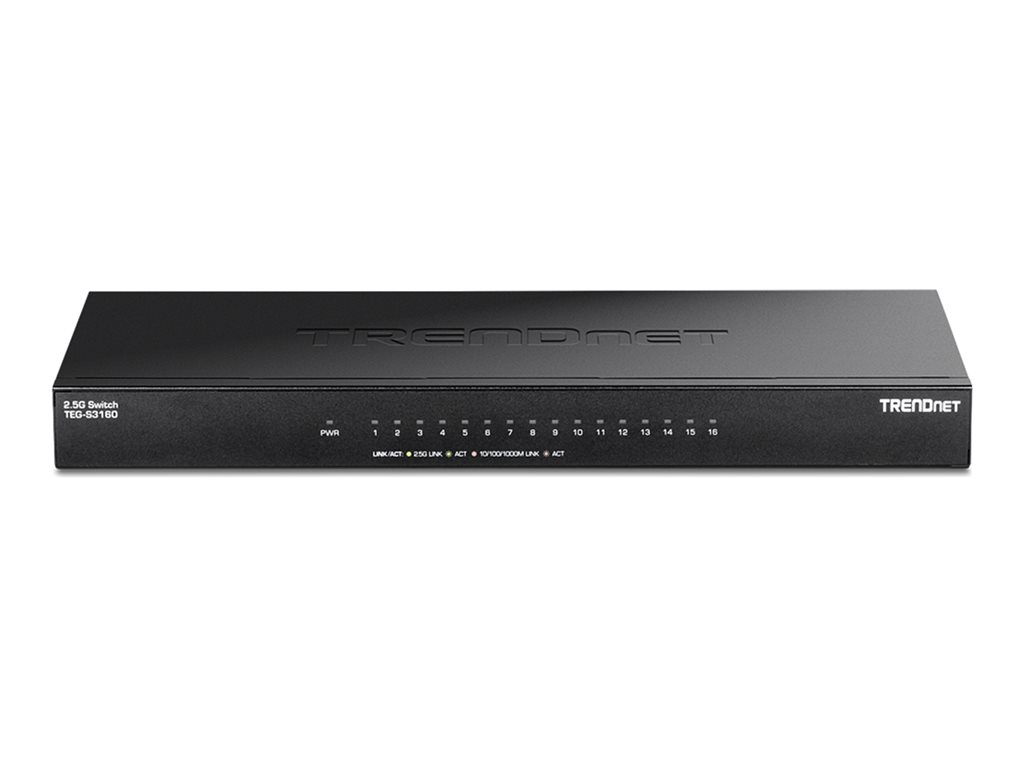

Version v1.0R - switch - unmanaged - 16 x 100/1000/2.5G - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEG-S3160 - Version v1.0R - switch - 16 ports - unmanaged - TAA Compliant |
| Device Type | Switch - 16 ports - unmanaged |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 16 x 100/1000/2.5G |
| Performance | Switching capacity: 80 Gbps ¦ Forwarding rate (64?byte packets): 59.52 Mpps |
| Capacity | RAM buffer: 1.5 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Features | LED status indicators, rack mountable (1RU), wall mountable, fanless, Cat 5e, full duplex mode, metal housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz |
| Power | AC 90-264 V (47/63 Hz) |
| Dimensions (WxDxH) | 11.3 in x 5 in x 1.1 in |
| Weight | 34.64 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 16 ports - unmanaged |
| Enclosure Type | Desktop |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 16 x 100/1000/2.5G |
| Performance | Switching capacity: 80 Gbps ¦ Forwarding rate (64?byte packets): 59.52 Mpps |
| Capacity | RAM buffer: 1.5 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Features | LED status indicators, rack mountable (1RU), wall mountable, fanless, Cat 5e, full duplex mode, metal housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz |
| Status Indicators | Link/activity, power |
| Expansion / Connectivity | |
| Interfaces | 16 x 100/1000/2.5G RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Power adapter |
| Rack Mounting Kit | Included |
| MTBF | 223,000 hours |
| Compliant Standards | NDAA, FCC |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Power Provided | DC 12 V - 3 A |
| Voltage Required | AC 90-264 V (47/63 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 11.3 in |
| Depth | 5 in |
| Height | 1.1 in |
| Weight | 34.64 oz |
