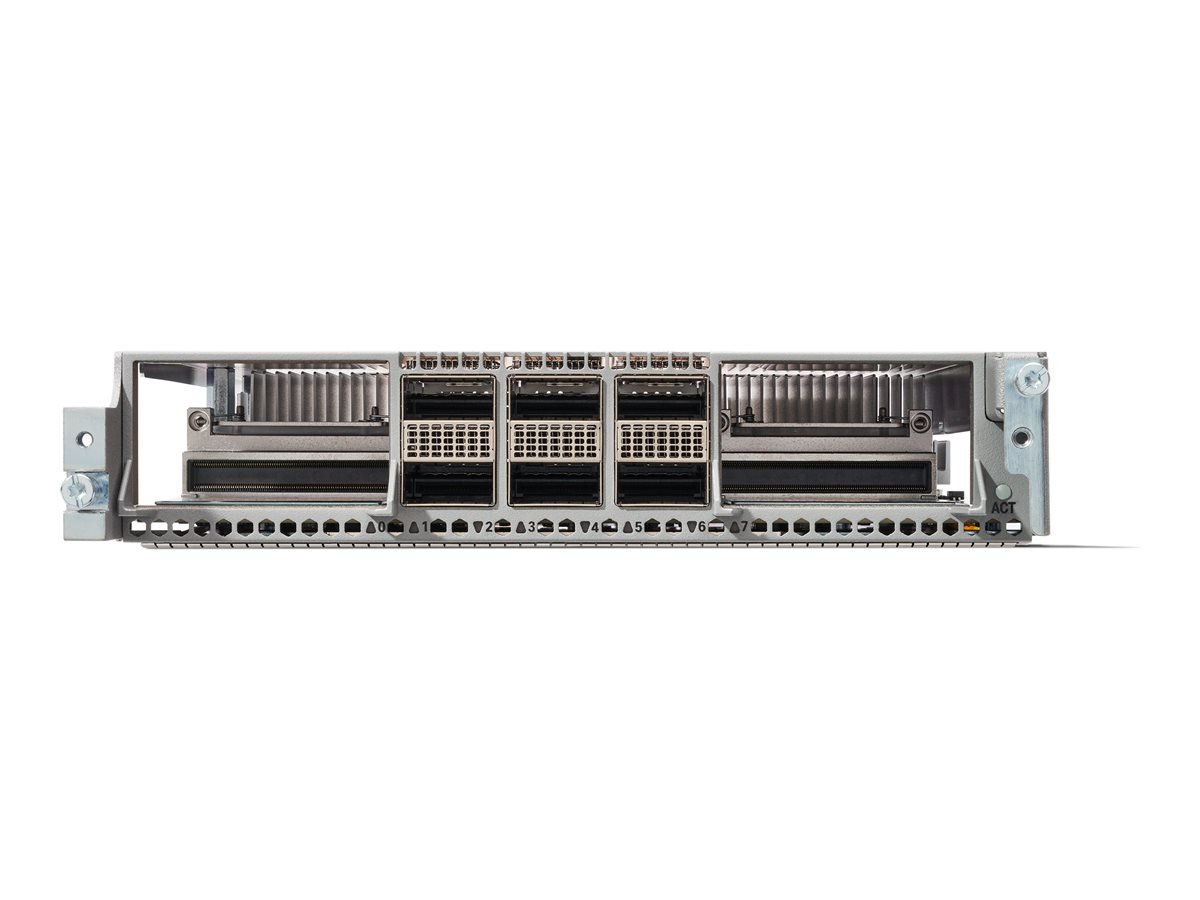

Expansion module - QSFP-DD x 6 + trunk x 2 - for P/N: NCS1K14-2.4TE-F1C=, NCS1K14-2.4TE-F2C=, NCS1K14-2.4TE-F2L=, NCS1K14-SYS
| Main Specifications | |
|---|---|
| Product Description | Cisco - expansion module - QSFP-DD x 6 + trunk x 2 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | QSFP-DD x 6 + trunk x 2 |
| Dimensions (WxDxH) | 7.6 in x 10.9 in x 1.6 in |
| Weight | 7.05 lbs |
| Data Link Protocol | 400GbE, 100GbE |
| Performance | Aggregate bandwidth: 2.4 Tbps |
| Manufacturer Warranty | 5-year warranty |
| Designed For | P/N: NCS1K14-2.4TE-F1C=, NCS1K14-2.4TE-F2C=, NCS1K14-2.4TE-F2L=, NCS1K14-SYS |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 6 x 100Gb Ethernet / 400Gb Ethernet - QSFP56-DD ¦ 2 x trunk |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 5 years |
| Miscellaneous | |
| Compliant Standards | G.7710, AES-256, CISPR 32 Class A, AS/NZS CISPR 32 Class A, CISPR 22 Class A, EN 55032 Class A, ICES-003 Class A, VCCI Class A, KN 61000-3-2, KN 61000-3-3, CNS 13438 Class A, FCC CFR 47 Part 15 Class A, KN32 Class A, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-11, KN35, EN 300 386, EN 55032, EN 55035, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN55022, EN55024, IEC 60950-1, EN 60950-1, AS/NZS 62368.1, LVD 2014/35/EU, IEC 60825-1, IEC 60825-2, ITU-T G.975, WEEE |
| Networking | |
| Ports | QSFP-DD x 6 + trunk x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 400 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | Aggregate bandwidth: 2.4 Tbps |
| Remote Management Protocol | SNMP, CLI, NETCONF, RESTCONF, gRPC, YANG, RMON |
| Status Indicators | Active, port status |
| Features | OpenConfig support, Alarm reporting for LOS, LOF, LOM, AIS, BDI, TCAs, LLDP snooping, iPXE, ZTP |
| Power | |
| Power Consumption Operational | 271 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.6 in |
| Depth | 10.9 in |
| Height | 1.6 in |
| Weight | 7.05 lbs |
| Compatibility Information | |
| Designed For | P/N: NCS1K14-2.4TE-F1C=, NCS1K14-2.4TE-F2C=, NCS1K14-2.4TE-F2L=, NCS1K14-SYS |
