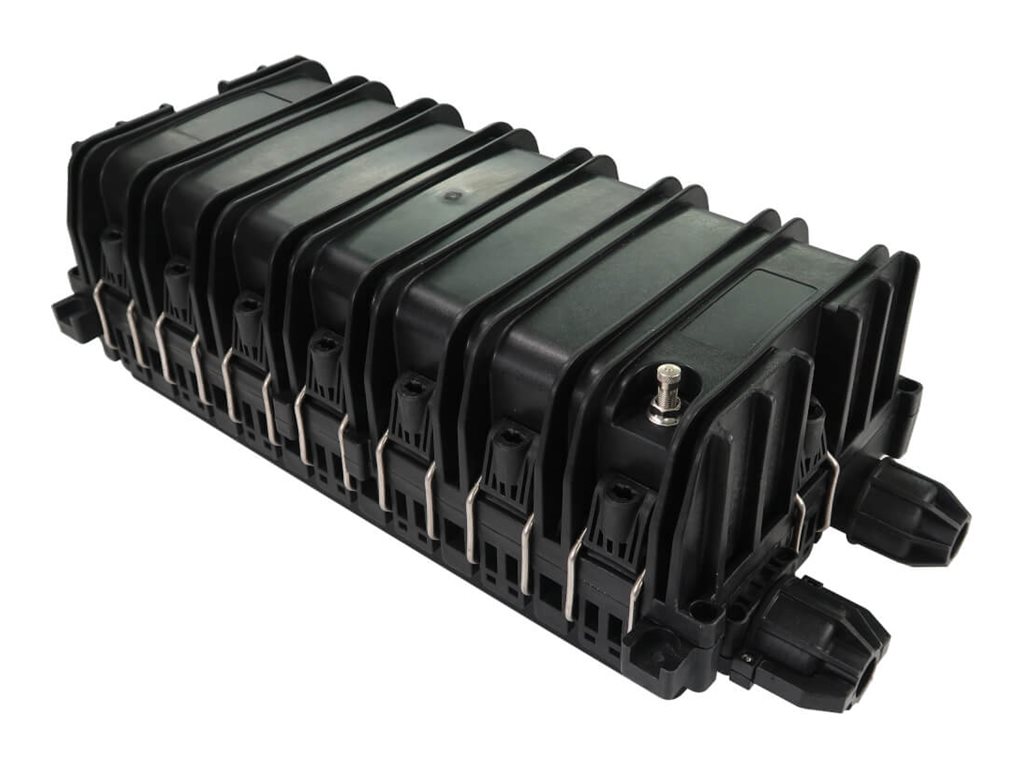

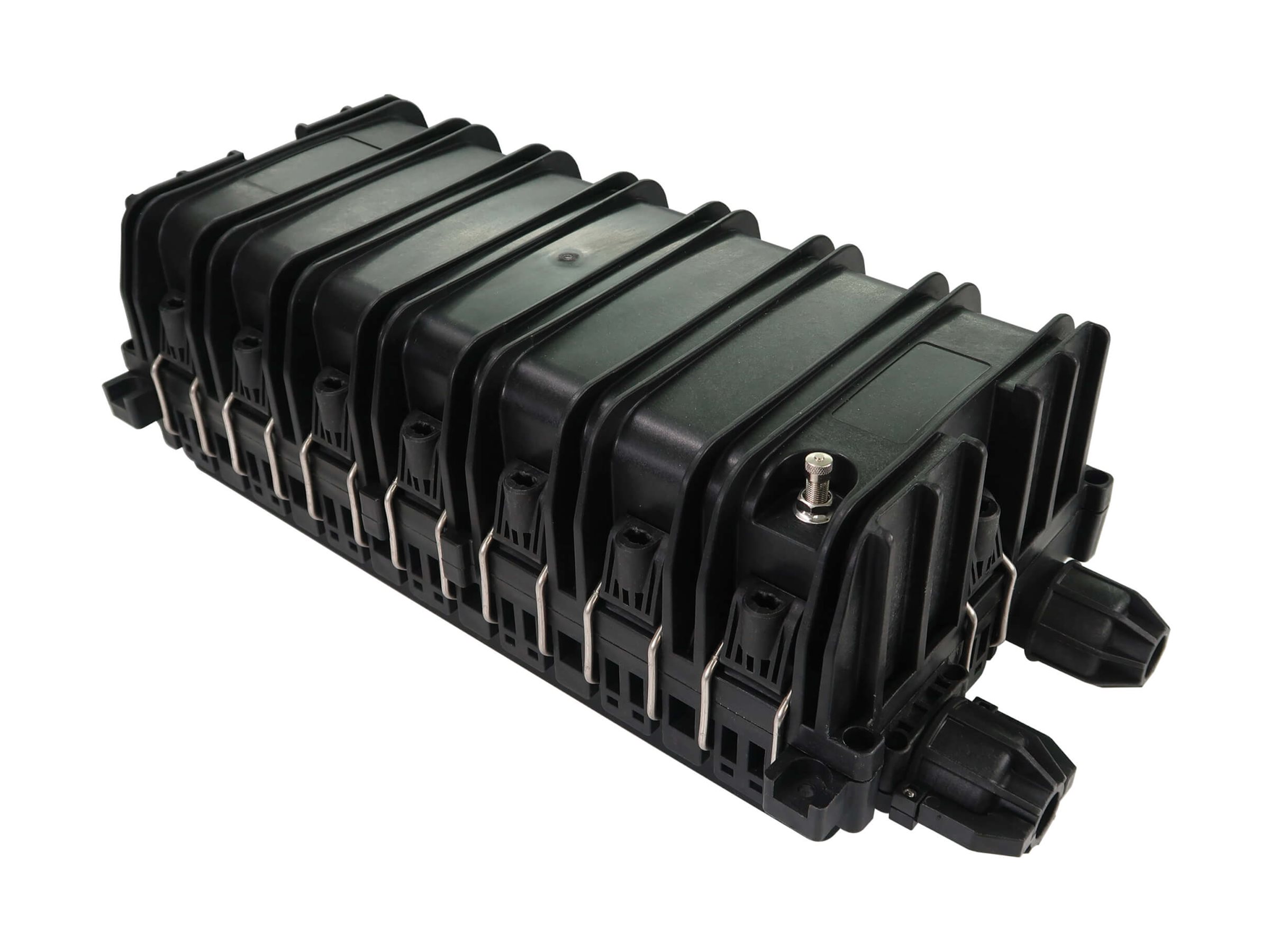

6 Splicing Trays, 288 Fiber Capacity, IP68 Rated - Fiber-optic splice enclosure (horizontal) - pole mountable, wall mountable, aerial mountable, underground mountable - outdoor - black - 4 ports
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Fiber Splice Horizontal Enclosure - 6 Splicing Trays, 288 Fiber Capacity, IP68 Rated - fiber-optic splice enclosure (horizontal) |
| Product Type | Fiber-optic splice enclosure (horizontal) |
| Placing / Mounting | Pole mountable, wall mountable, aerial mountable, underground mountable |
| Indoor / Outdoor | Outdoor |
| Package Content | 288 splicing tubes, 20 cable ties, 6 choke plugs, 12 cable grommets, EVA tube, silicon oil, insulation tape, cleaning paper, aerial mounting hardware |
| Dimensions (WxDxH) | 8.5 in x 20.7 in x 6 in |
| Weight | 9.26 lbs |
| Product Material | Plastic |
| Color | Black |
| Port Qty | 4 ports |
| Compliant Standards | RoHS, REACH, IP68 / OM1/OM2/OM3/OM4/OM5/OS2 |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Product Type | Fiber-optic splice enclosure horizontal |
| Placing / Mounting | Pole mountable, wall mountable, aerial mountable, underground mountable |
| Indoor / Outdoor | Outdoor |
| Package Content | 288 splicing tubes, 20 cable ties, 6 choke plugs, 12 cable grommets, EVA tube, silicon oil, insulation tape, cleaning paper, aerial mounting hardware |
| Product Material | Plastic |
| Width | 8.5 in |
| Depth | 20.7 in |
| Height | 6 in |
| Weight | 9.26 lbs |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Mounting Kit | Included |

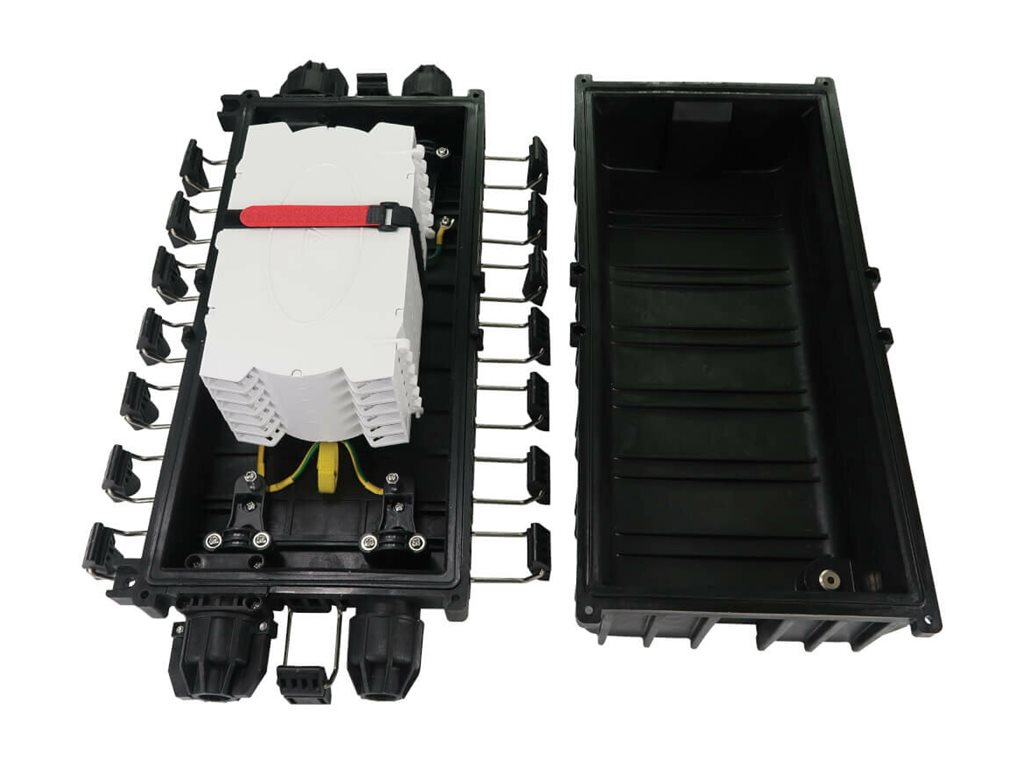

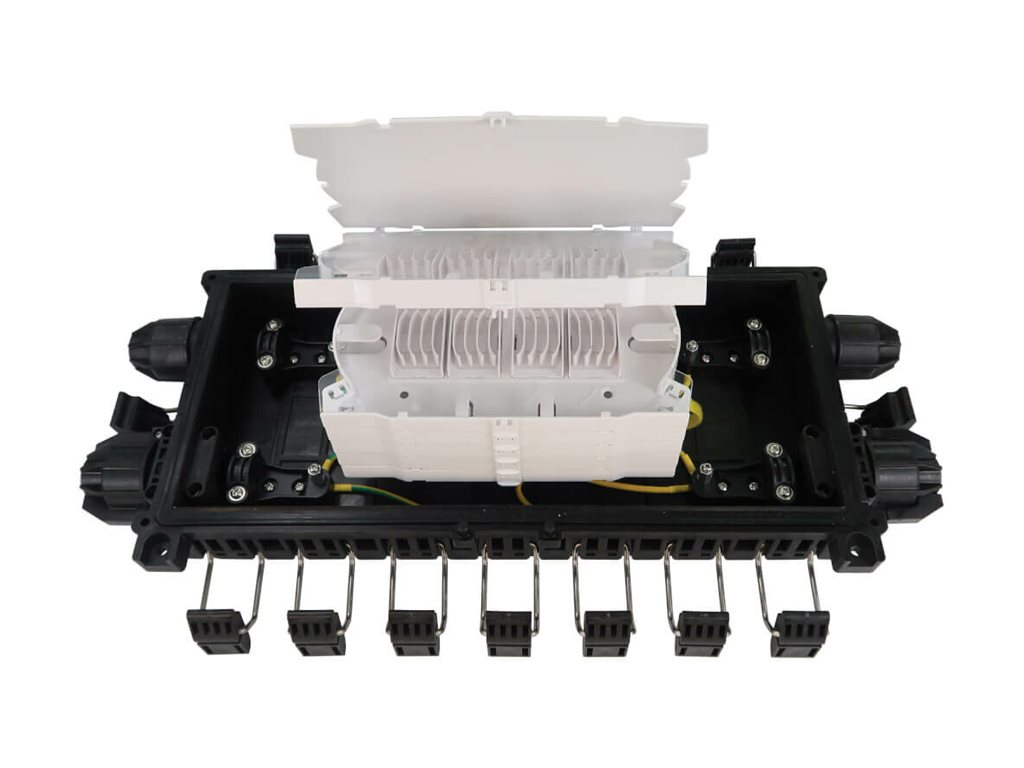

| Features | 6 splicing trays, up to 288 fibers, hinged splicing trays, dust protection, water protection, built-in labels log |
| Compliant Standards | RoHS, REACH, IP68 |
| Environmental Parameters | |
| Min Operating Temperature | -49 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
| Cabling & Wiring | |
| Port Qty | 4 ports |
| Technology | Fiber optic |
| Features | Single-mode, multimode |
| Compliant Standards | OM1/OM2/OM3/OM4/OM5/OS2 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.1 in |
| Shipping Depth | 22.4 in |
| Shipping Height | 9.4 in |
| Shipping Weight | 10.36 lbs |
