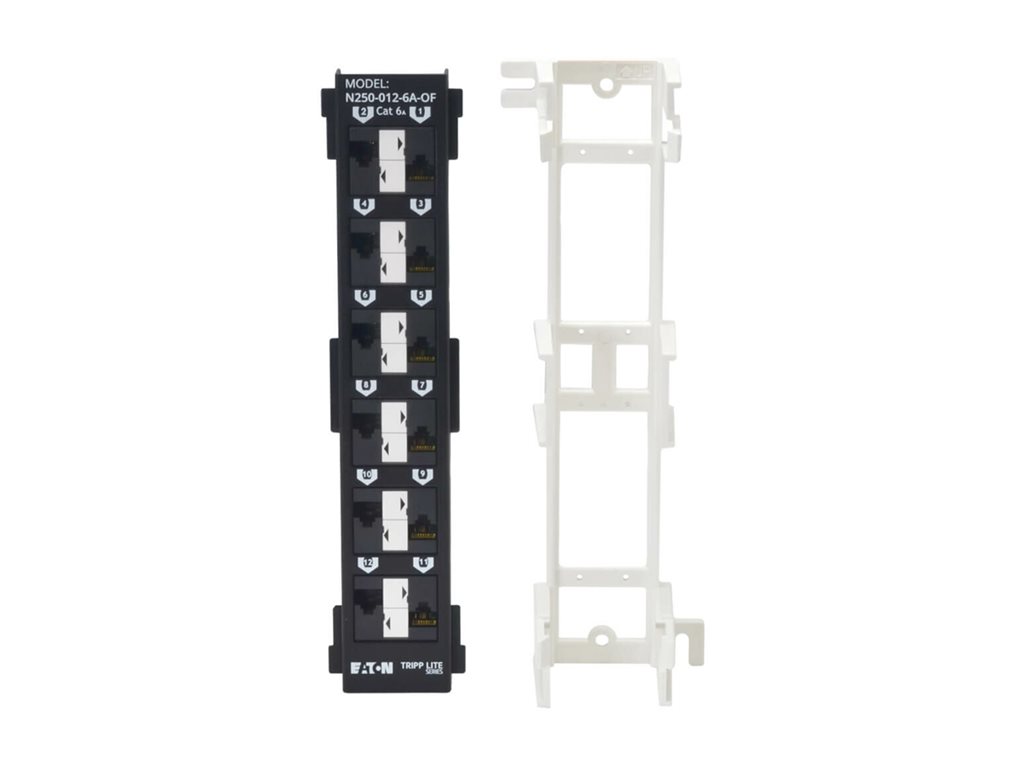

PoE+ Compliant, 110, 568A/B, RJ45 Ethernet, Offset Ports, TAA - Patch panel (horizontal / vertical) - wall mountable - CAT 6a - black - 12 ports - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 12-Port Cat6a Wall-Mount Patch Panel - PoE+ Compliant, 110, 568A/B, RJ45 Ethernet, Offset Ports, TAA - patch panel (horizontal / vertical) - TAA Compliant |
| Product Type | Patch panel (horizontal / vertical) - CAT 6a |
| Placing / Mounting | Wall mountable |
| Package Content | Cable ties |
| Dimensions (WxDxH) | 10 in x 2.7 in x 2.6 in |
| Product Material | SECC steel |
| Color | Black |
| Port Qty | 12 ports |
| Wiring Scheme | T568A/B |
| Compliant Standards | EIA/TIA 568A, GSA, UL 94, REACH, RoHS / IEEE 802.3at |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Product Type | Patch panel horizontal / vertical - CAT 6a |
| Placing / Mounting | Wall mountable |
| Package Content | Cable ties |
| Product Material | SECC steel |
| Width | 10 in |
| Depth | 2.7 in |
| Height | 2.6 in |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compatible Connector Type | RJ-45 |
| Mounting Kit | Included |
| Features | Spark-gap erosion prevention, offset, numbered ports |
| Compliant Standards | EIA/TIA 568A, GSA, UL 94, REACH, RoHS |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Cabling & Wiring | |
| Port Qty | 12 ports |

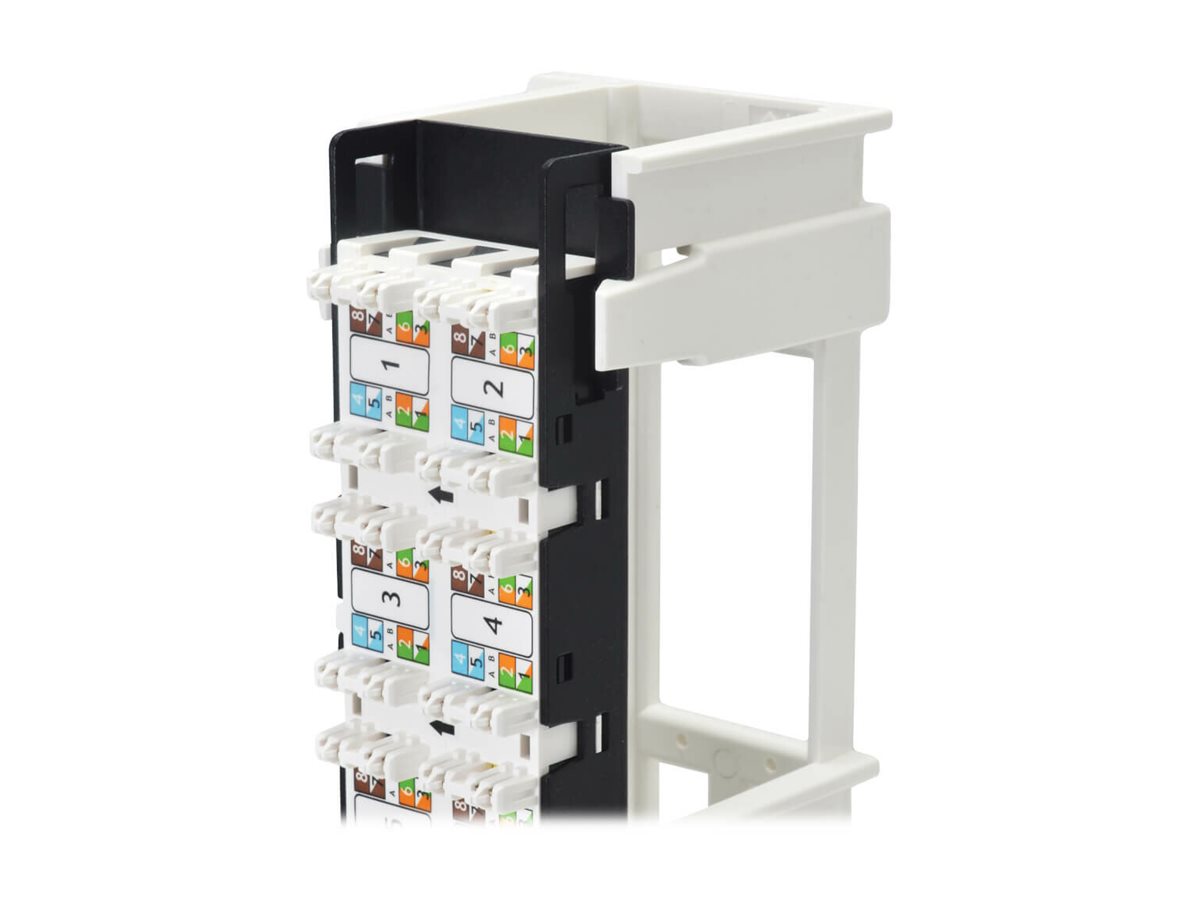

| Termination Type | 110 type termination, IDC |
| Wiring Scheme | T568A/B |
| Features | PoE+ support, color-coded, punchdown termination |
| Compliant Standards | IEEE 802.3at |
| Connector Provided | 12 x RJ-45 female |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.2 in |
| Shipping Depth | 3.1 in |
| Shipping Height | 3 in |
| Shipping Weight | 14.11 oz |
