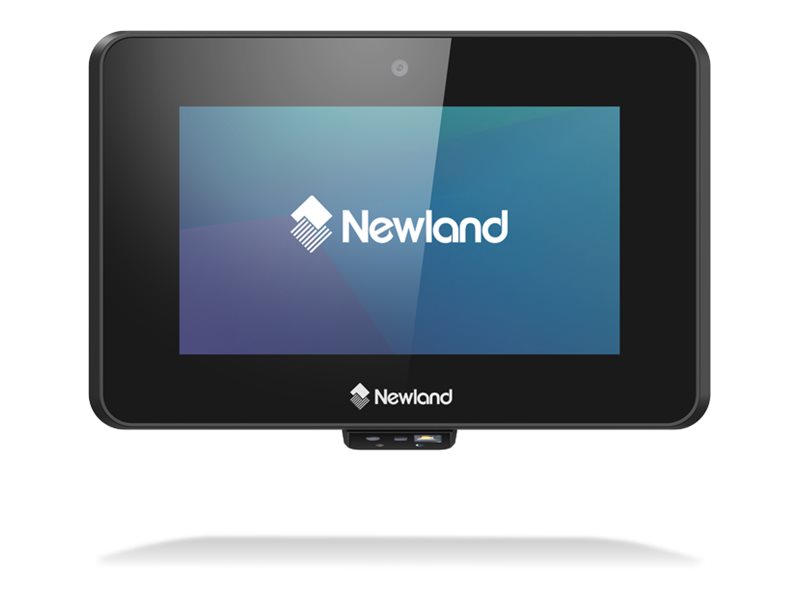

Landscape - micro kiosk 1 up to 2 GHz - RAM 4 GB - flash 64 GB - Bluetooth 5.2, Gigabit Ethernet - Android 13 GMS - monitor: LED 5" 854 x 480 (WVGA) touchscreen
| Main Specifications | |
|---|---|
| Product Description | Newland NQuire 500 Skate II - Landscape - micro kiosk - 4 GB - flash 64 GB - LED 5" |
| Type | Kiosk - micro kiosk |
| Processor | 1 (up to 2 GHz, (8-core) |
| RAM | 4 GB |
| Hard Drive | Flash 64 GB |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Monitor | 5" - LED - 854 x 480 (WVGA) - touchscreen |
| Camera | Yes |
| Networking | 802.11a, Wi-Fi 5, 802.11b/g/n, Bluetooth 5.2, 1GbE |
| Mobile Broadband | 4G |
| OS Provided | Android 13 GMS |
| Software Included | Ndevor |
| Dimensions (WxDxH) | 6.2 in x 1.1 in x 4 in |
| Manufacturer Warranty | Limited warranty - 2 years |
| General | |
| Type | Kiosk |
| Product Form Factor | Micro kiosk |
| Built-in Devices | Stereo speakers, 1D/2D barcode reader, GPS / GLONASS / Galileo / Beidou |
| Sensors | Gravity sensor, infrared (IR) sensor |
| Expansion / Connectivity | |
| Slots | Nano-SIM card |
| Interfaces | 2 x GPIO ¦ 1 x USB-C - Type C ¦ 1 x LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Wall mount |
| VESA Mounting Interface | 75 x 75 mm |
| Compliant Standards | IP54 |
| RAM | |
| Installed Size | 4 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11n, Bluetooth 5.2, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Power-over-Ethernet (POE) |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Power | |
| Device Type | Power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes |
| Diagonal Size | 5" |
| Native Resolution | 854 x 480 (WVGA) |
| Widescreen Display | Yes |
| Monitor Features | Capacitive touch screen |
| Operating System / Software | |
| OS Provided | Android 13 GMS |
| Software | Ndevor |
| Hard Drive | |
| Type | Flash |
| Capacity | 64 GB |
| Camera | |
| Camera | Yes |
| Resolution (MP) | 8 Megapixel (front) |
| Dimensions & Weight | |
| Width | 6.2 in |
| Depth | 1.1 in |
| Height | 4 in |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | microSDHC, microSD |
| Processor / Chipset | |
| Max Turbo Speed | 2 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
