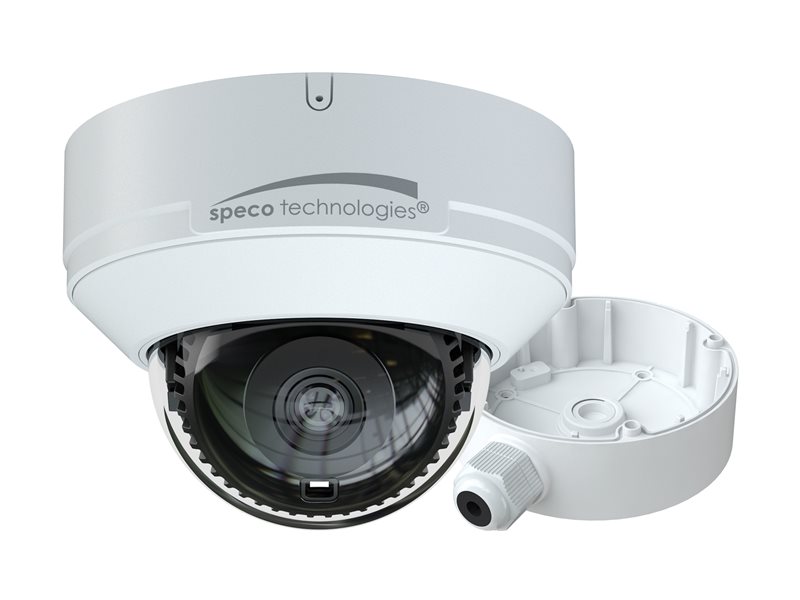

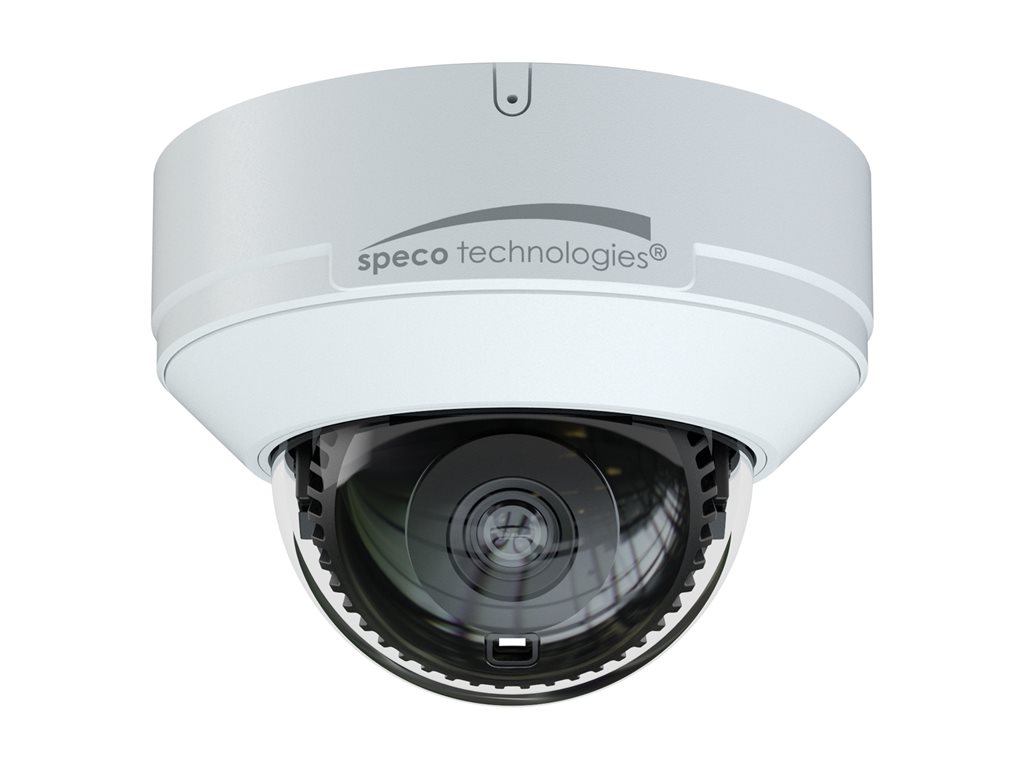

Network surveillance camera - dome - indoor, outdoor - vandal resistant / weather resistant - color (Day&Night) - 8 MP - 3840 x 2160 - 4K, 720p - audio - H.265, H.264, MJPEG - DC 12 V / PoE
| Main Specifications | |
|---|---|
| Product Description | Speco O8VD3 - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - indoor, outdoor - vandal resistant / weather resistant |
| Audio | Yes: built-in microphone |
| Dimensions (WxDxH) | 4.7 in x 4.7 in x 3.5 in |
| Weight | 22.57 oz |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 4K, 720p |
| Optical Sensor Type | Progressive Scan CMOS - 1/2.8" - 8 MP |
| Minimum Illumination | 0.02 lux F1.6 - AGC on ¦ 0 lux - infrared LEDs on |
| Focal Length | 2.8 mm |
| Panning Range (degree) | 0 to 355 |
| Tilting Range (degree) | 0 to 180 |
| Voltage | DC 12 V / PoE |
| Features | Line Crossing support, intrusion detection, IR-cut filter, People Detection, True Wide Dynamic Range (TWDR), Vehicle Detection, region intrusion, video blurring detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Backlight Compensation (BLC), Highlight Compensation (HLC), 3D digital noise reduction (DNR), brightness control, contrast control, Corridor mode, Defog, noise reduction, Region of Interest (ROI), saturation control, sharpening, Variable Bitrate (VBR), Constant Bitrate (CBR), watermark, IP address filtering, masking, password protection, 10 access users, digest authentication, MAC filtering |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -40 °F - 140 °F; 0 - 95% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | G.711a, G.711u |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.7 in |
| Depth | 4.7 in |
| Height | 3.5 in |
| Weight | 22.57 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in - 3.5 mm jack |
| Supported Memory Cards | microSD Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | IK07, IP67, IEEE 802.3af, NDAA Section 889 Part B, FCC, RoHS |
| Color | White |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Power Device | Power adapter / PoE 7 Watt |
| Software / System Requirements | |
| Software Included | SecureGuard VMS, SecureGuard CMS, SecureGuard, Speco Blue |
| OS Required | Android, Apple iOS, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - indoor, outdoor - vandal resistant / weather resistant |
| Digital Video Format | H.265, H.264, MJPEG |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K, 720p |
| Exposure Range | 1 sec - 1/100000 sec |
| Minimum Illumination | 0.02 lux F1.6 - AGC on ¦ 0 lux - infrared LEDs on |
| Infrared Distance | 100 ft |
| Digital Video Capture Resolution | 3840 x 2160, 480 x 240 |
| Frame Rate (max) | 30 frames per second |
| Features | Line Crossing support, intrusion detection, IR-cut filter, People Detection, True Wide Dynamic Range (TWDR), Vehicle Detection, region intrusion, video blurring detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Backlight Compensation (BLC), Highlight Compensation (HLC), 3D digital noise reduction (DNR), brightness control, contrast control, Corridor mode, Defog, noise reduction, Region of Interest (ROI), saturation control, sharpening, Variable Bitrate (VBR), Constant Bitrate (CBR), watermark, IP address filtering, masking, password protection, 10 access users, digest authentication, MAC filtering |
| Lens Construction | |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 108.9 |
| Vertical Field of View (degree) | 76.4 |
| Diagonal Field of View (degree) | 116.2 |
| Image Sensor | |
| Type | 8 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Protocols | UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, UPnP, HTTP, HTTPS, QOS |
| Panning | |
| Range (degree) | 0 to 355 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Tilting | |
| Range (degree) | 0 to 180 |
