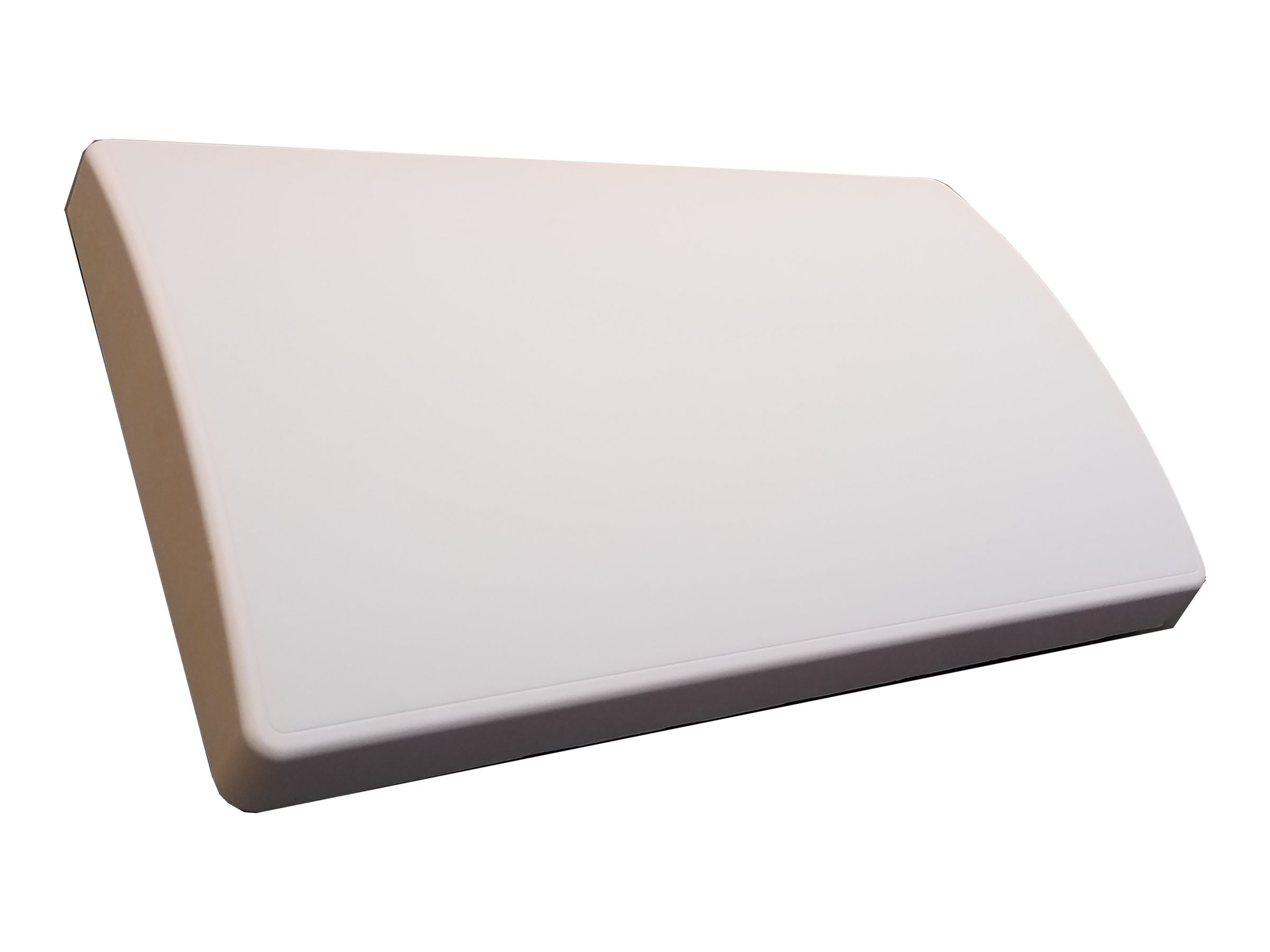

Antenna - 2.4/5 GHz, with 4 N female connectors - panel - Wi-Fi - 13 dBi - directional - wall-mountable, mast, indoor
| Main Specifications | |
|---|---|
| Product Description | Ventev M6130130MP1D0006W - antenna - 2.4/5 GHz, with 4 N female connectors |
| Product Type | Antenna - 2.4/5 GHz, with 4 N female connectors |
| Package Content | Antenna mounting arm |
| Dimensions (WxDxH) | 24 in x 2.8 in x 14 in |
| Weight | 9.5 lbs |
| Form Factor | Panel |
| Intended For | Wi-Fi |
| Antenna Placing / Mounting | Wall-mountable, mast, indoor |
| Compatibility | 802.11ac |
| Frequency Range | 2.4 GHz, 5 GHz |
| Gain | 13 dBi |
| Directivity | Directional |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Antenna - 2.4/5 GHz, with 4 N female connectors |
| Package Content | Antenna mounting arm |
| Width | 24 in |
| Depth | 2.8 in |
| Height | 14 in |
| Weight | 9.5 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Vertical polarisation |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Cabling & Wiring | |
| Connector Provided | 4 x N-Series connector female |
| Antenna | |
| Form Factor | Panel |
| Intended For | Wi-Fi |
| Antenna Placing / Mounting | Wall-mountable, mast, indoor |
| Compatibility | 802.11ac |
| Frequency Range | 2.4 GHz, 5 GHz |
| Gain | 13 dBi |
| Directivity | Directional |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Horizontal Beamwidth | 115° |
| Vertical Beamwidth | 11° |
| Impedance | 50 Ohm |
