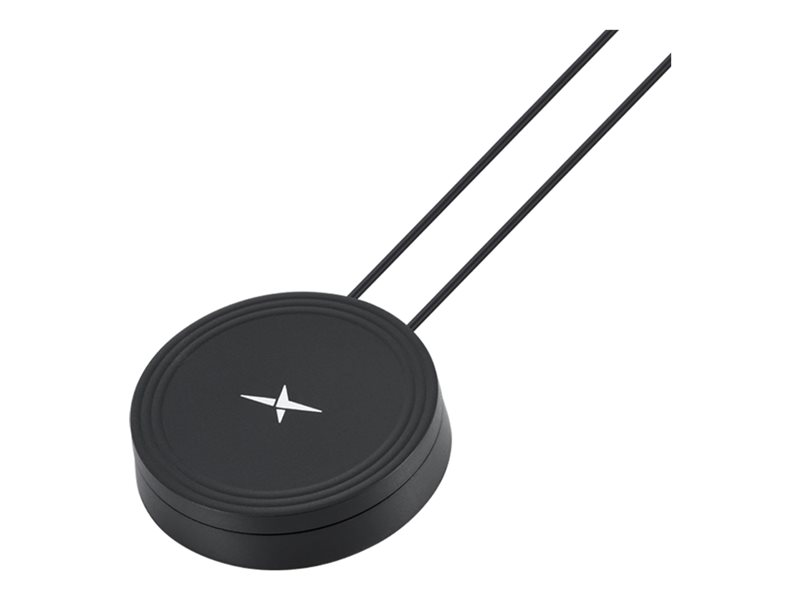

Antenna - puck - cellular - 4.2 dBi (for 617 - 5925 MHz) - magnetic mountable, adhesive mount - for P/N: GW.05.0ZZ23, GW.05.AE23, MA1609.A.001, TG.55.8723, TGX.04.W.A.001, TGX.08.A.001
| Main Specifications | |
|---|---|
| Product Description | Taoglas Comet MA322 - antenna |
| Device Type | Antenna |
| Form Factor | Puck |
| Intended For | Cellular |
| Antenna Placing / Mounting | Magnetic mountable, adhesive mount |
| Dimensions (WxDxH) | 0.7 in 0.7 in |
| Weight | 3.99 oz |
| Compatibility | 4G, 5G |
| Frequency Range | 617 - 5925 MHz |
| Gain | 4.2 dBi (for 617 - 5925 MHz) |
| Features | Waterproof, low profile, IP67, linear polarization, MIMO technology, RoHS |
| Designed For | P/N: GW.05.0ZZ23, GW.05.AE23, MA1555.A.001, MA1559.A.001, MA1609.A.001, TG.55.8723, TG.66.0723, TGX.04.W.A.001, TGX.08.A.001 |
| General | |
| Product Type | Antenna |
| Form Factor | Puck |
| Intended For | Cellular |
| Antenna Placing / Mounting | Magnetic mountable, adhesive mount |
| Width | 0.7 in |
| Height | 0.7 in |
| Length / Max Length | 3.1 in |
| Weight | 3.99 oz |
| Product Material | ASA plastic, 3M Adhesive |
| Miscellaneous | |
| Cables Included | Antenna cable - 6.6 ft |
| Antenna | |
| Compatibility | 4G, 5G |
| Frequency Range | 617 - 5925 MHz |
| Impedance | 50 Ohm |
| Gain | 4.2 dBi (for 617 - 5925 MHz) |
| Features | Waterproof, low profile, IP67, linear polarization, MIMO technology, RoHS |
| Compatibility Information | |
| Designed For | P/N: GW.05.0ZZ23, GW.05.AE23, MA1555.A.001, MA1559.A.001, MA1609.A.001, TG.55.8723, TG.66.0723, TGX.04.W.A.001, TGX.08.A.001 |
| Connector Provided | |
| Type | 2 x antenna - SMA (male) |
