Video/audio/infrared/serial/USB/network/power extender - 1GbE, HDMI, HDBaseT 3.0 - USB - 1000Base-T - up to 328 ft
| Main Specifications | |
|---|---|

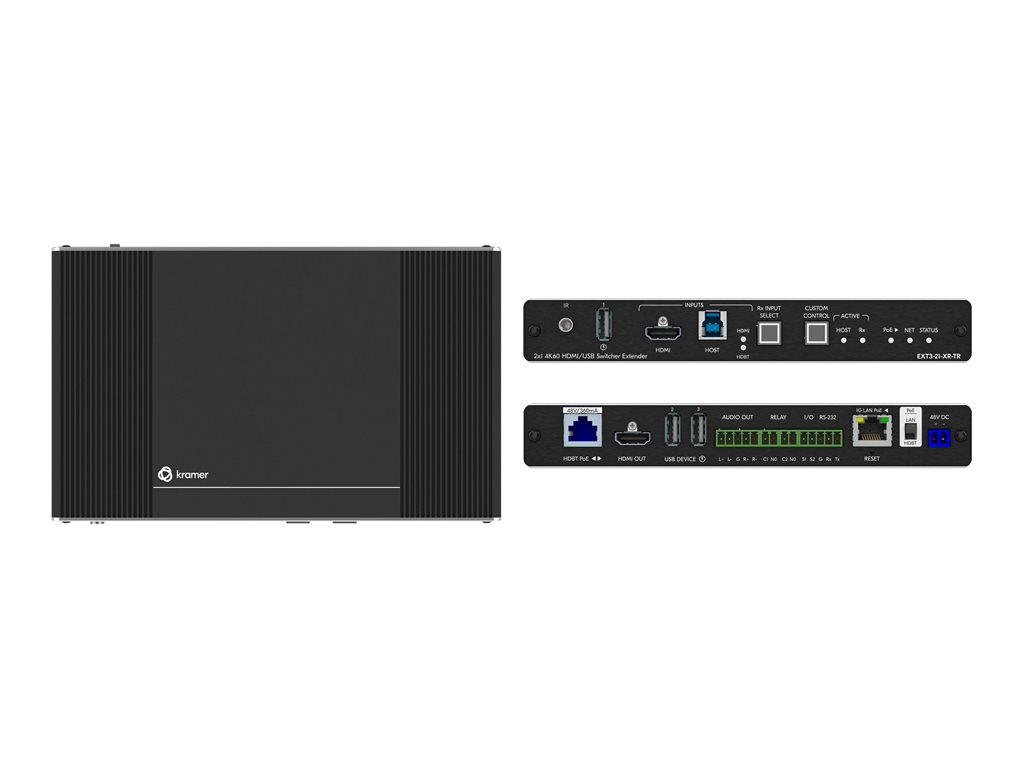

| Product Description | Kramer EXT3-21-XR-TR - video/audio/infrared/serial/USB/network/power extender - 1GbE, HDMI, HDBaseT 3.0 |
| Device Type | Video/audio/infrared/serial/USB/network/power extender - USB |
| Form Factor | External |
| Cabling Type | 1000Base-T |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | 1GbE, HDMI, HDBaseT 3.0 |
| Max Transfer Distance | 328 ft |
| Power | 48 V |
| Dimensions (WxDxH) | 7.5 in x 4.6 in x 1.1 in |
| Weight | 21.16 oz |
| General | |
| Device Type | Video/audio/infrared/serial/USB/network/power extender |
| Form Factor | External |
| Built-in Devices | USB hub |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (receiver input) - 19 pin HDMI Type A female ¦ 1 x HDBaseT (receiver input) - RJ-45 female ¦ 1 x HDBaseT (transmitter output) - RJ-45 female ¦ 1 x HDMI (Tx LOOP) - 19 pin HDMI Type A ¦ 1 x HDMI (receiver output) - 19 pin HDMI Type A female ¦ 1 x audio (transmitter output) - 5 pin terminal block ¦ 1 x audio (receiver output) - 5 pin terminal block ¦ 1 x USB 3.1 (host) - Type B female ¦ 3 x USB 3.1 (device) - Type A female ¦ 1 x Ethernet 10/100/1000Base-T - RJ-45 female ¦ 1 x RS-232 - 3 pin terminal block ¦ 1 x IR - mini jack ¦ 2 x GPIO - 2 pin terminal block ¦ 2 x relay - 4 pin terminal block |
| Miscellaneous | |
| Included Accessories | Rubber feet, power adapter, bracket kit, power cable |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T |
| Data Link Protocol | 1GbE, HDMI, HDBaseT 3.0 |
| Data Transfer Rate | 18 Gbps |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 328 ft |
| Status Indicators | Status, PoE, USB host, network |
| Features | 3D support, 4K resolution support, HDBaseT technology, EDID Pass-Through, 2K resolution support, CEC passthrough, Dolby TrueHD support, bidirectional, x.v.Color support, DTS-HD support, HDR10 support, aluminum housing, 4:4:4 chroma subsampling support, Deep Color support, LED status indicators, convection ventilation cooling |
| Compliant Standards | USB 1.1, USB 2.0, HDCP 2.3 |
| Power | |
| Voltage Required | 48 V |
| Power Consumption Operational | 35 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 7.5 in |
| Depth | 4.6 in |
| Height | 1.1 in |
| Weight | 21.16 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.6 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 2 in |
| Shipping Weight | 2.43 lbs |
