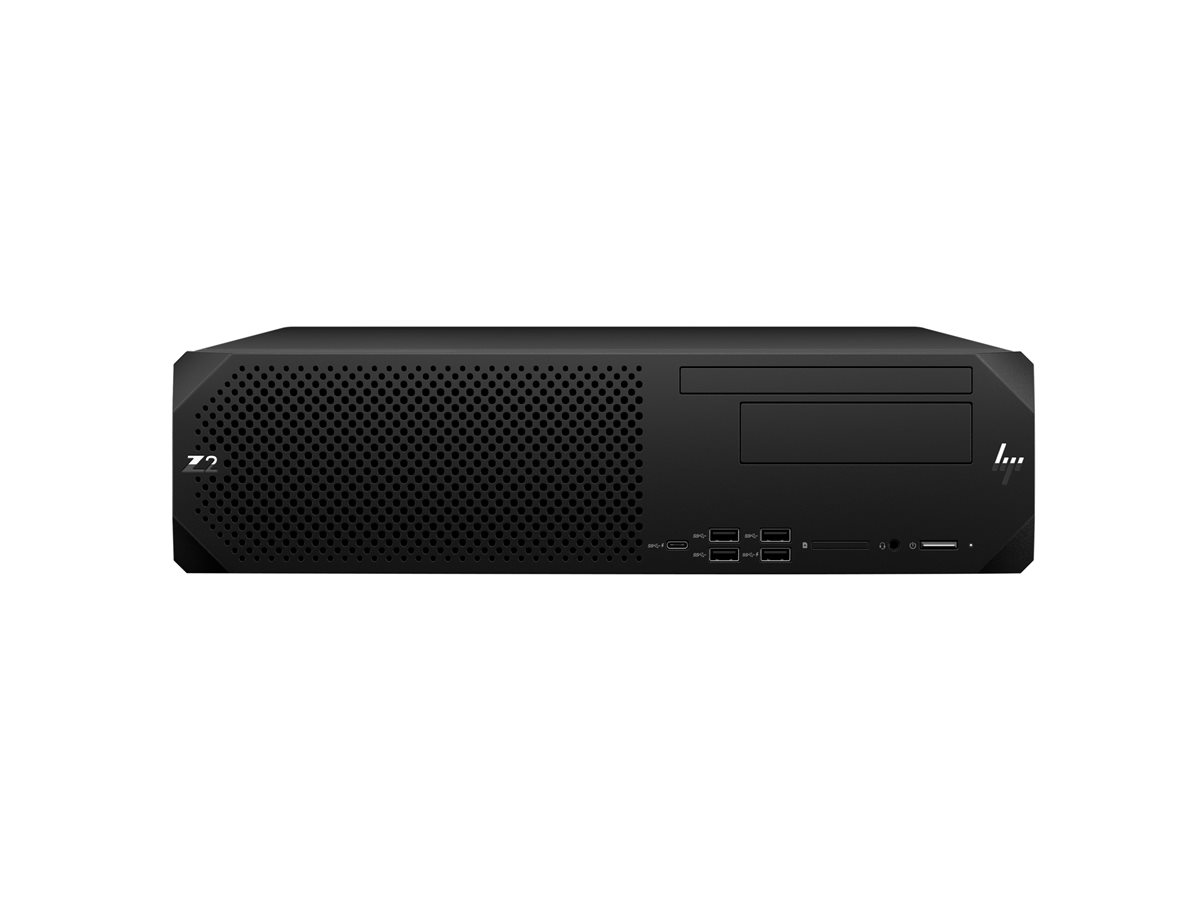

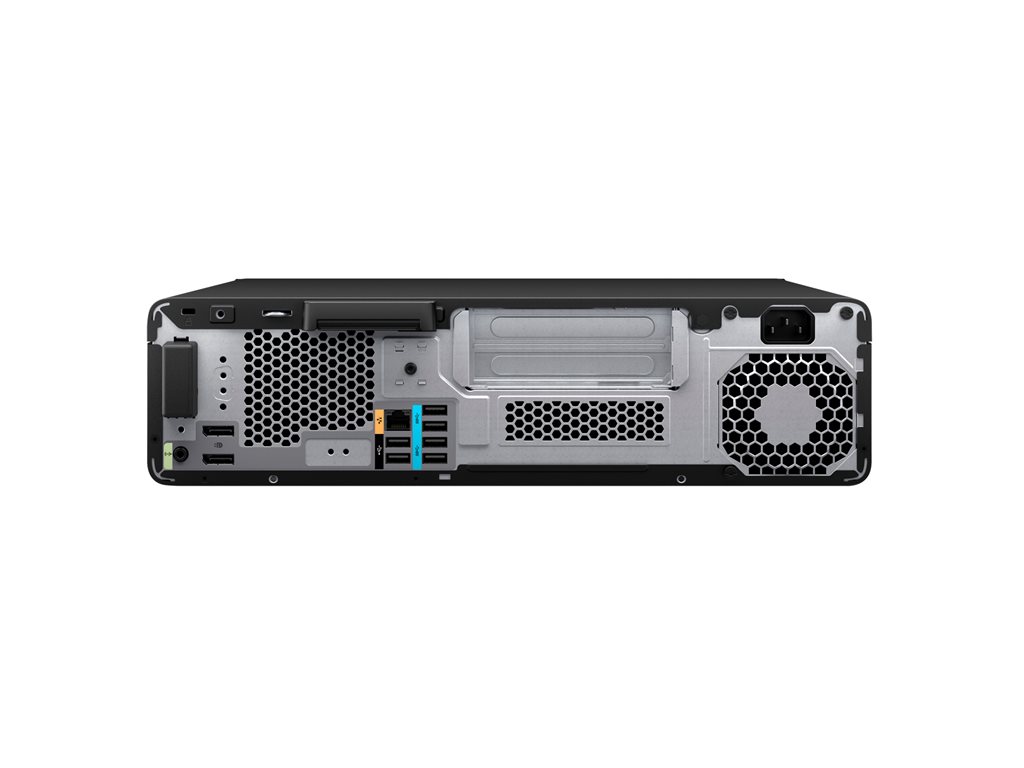

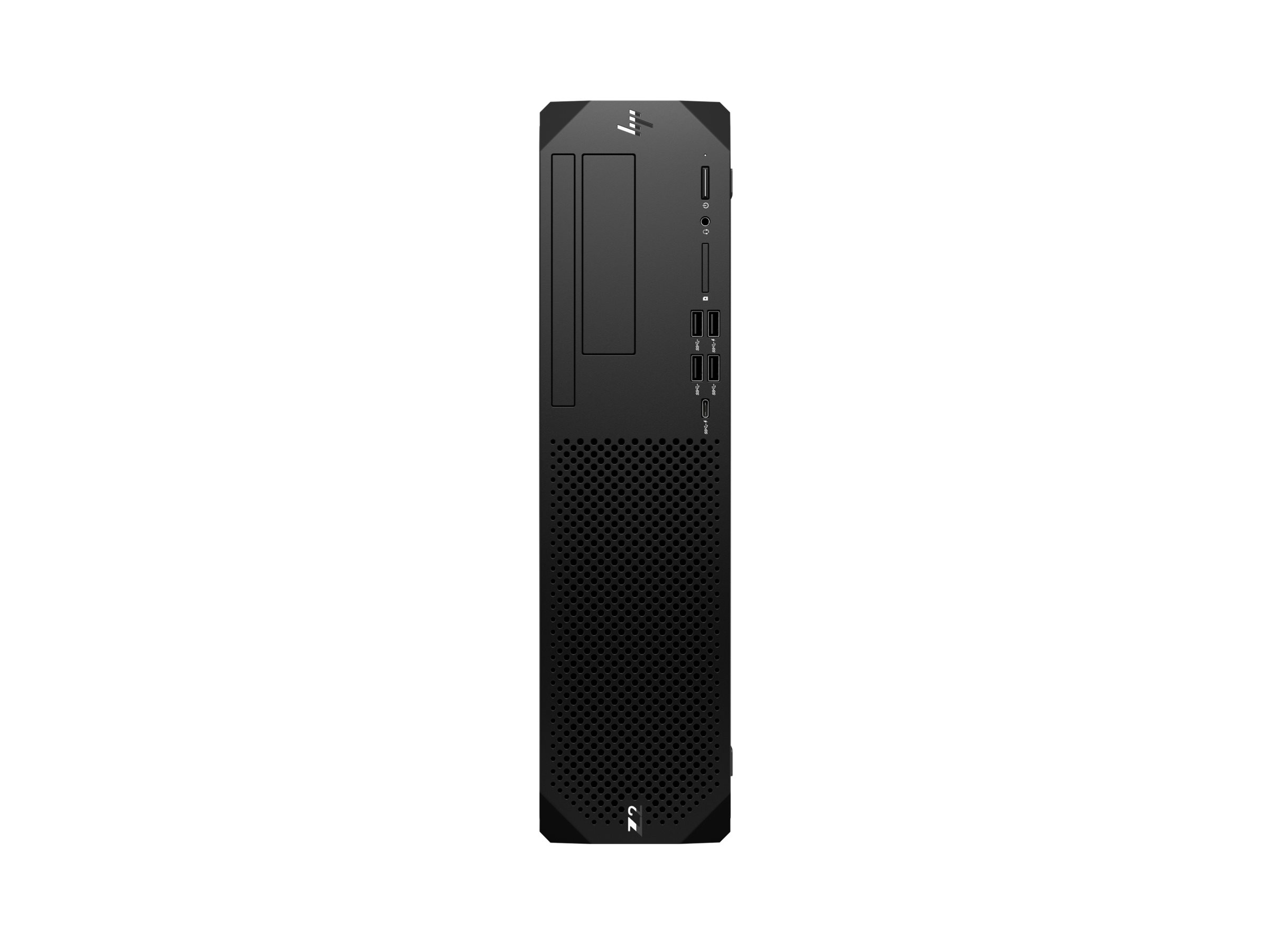

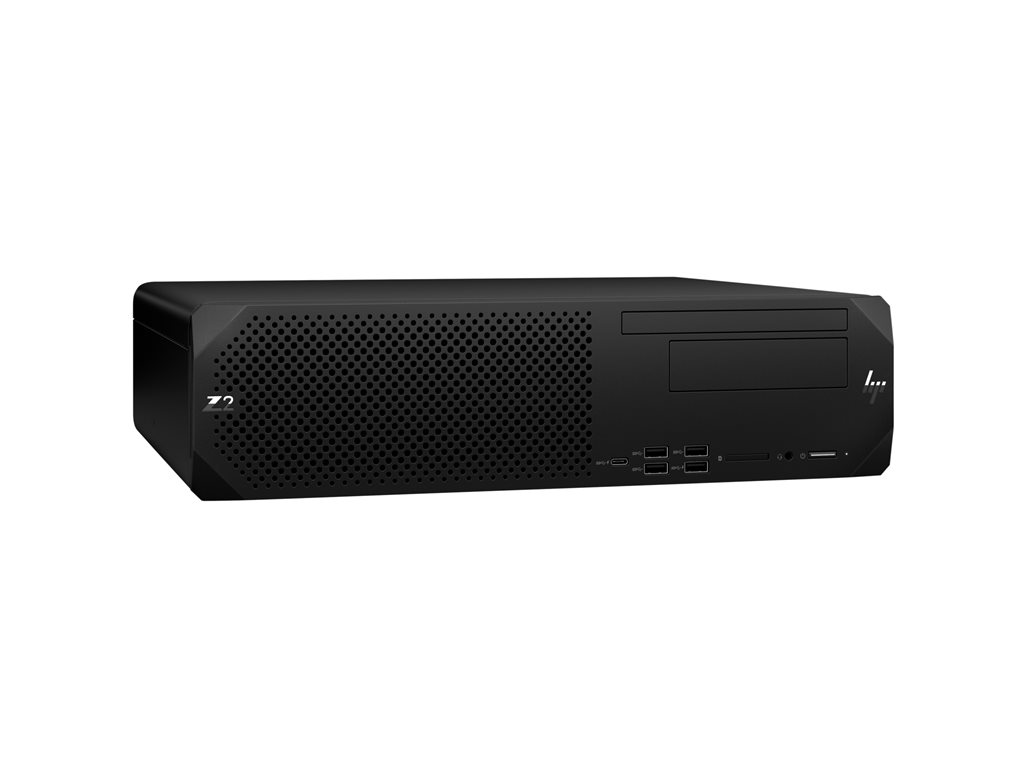

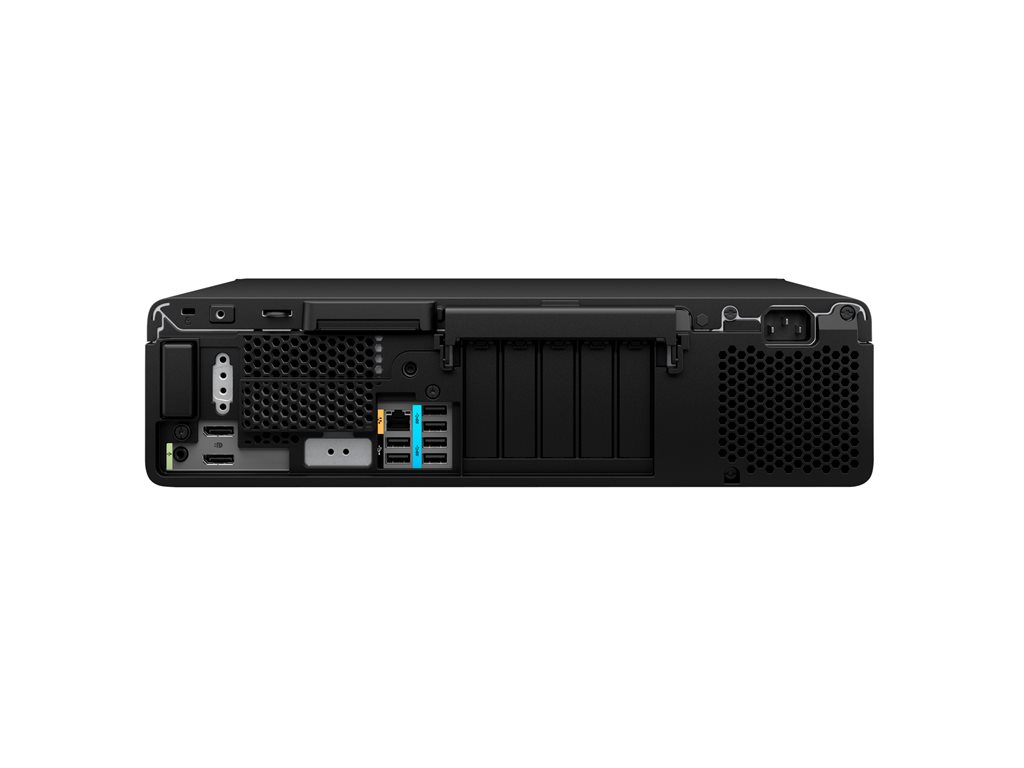

AI Workstation - SFF 1 x Core i5 12500 / up to 4.6 GHz - RAM 32 GB - SSD 256 GB - HP Z Turbo Drive G2, NVMe - UHD Graphics 770 - Gigabit Ethernet - Linux - monitor: none - black
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z2 G9 - SFF - AI Workstation - Core i5 12500 3 GHz - 32 GB - SSD 256 GB |
| Type | Workstation - SFF - AI Workstation |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Core i5 (12th Gen) 12500 / 3 GHz (up to 4.6 GHz, (6-core) |
| Processor Socket | LGA1700 Socket |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache |
| Cache Memory | 18 MB L3 cache |
| Cache Per Processor | 18 MB |
| RAM | 32 GB (installed) / 64 GB (max) - DDR5 SDRAM - non-ECC |
| Storage Controller | SATA/NVMe (SATA 6Gb/s / PCIe 4.0 x4 (NVMe)) |
| Hard Drive | SSD 256 GB - PCI Express - M.2 2280 - HP Z Turbo Drive G2, NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 Unified Memory Architecture (UMA) |
| Networking | 1GbE |
| OS Provided | Linux |
| Color | Black |
| Dimensions (WxDxH) | 15.1 in x 12.1 in x 3.9 in |
| Weight | 11.02 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Workstation |
| AI Level | AI Workstation |
| Product Form Factor | SFF |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 1 (total) / 1 (free) x internal 3.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (PCIe 3.0 x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 ¦ 3 (total) / 2 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (PCIe 3.0 x1 mode and Intel CNVi wireless module) |
| Interfaces | 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) ¦ 4 x USB 3.2 Gen 2 (4 in front) (one of them is charging) ¦ 1 x USB-C 3.2 Gen 2x2 (1 in front) (charging) ¦ 1 x audio line-out ¦ 2 x DisplayPort 1.4 ¦ USB 2.0 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FIPS 140-2, WEEE, CECP, low halogen |
| RAM | |
| Installed Size | 32 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM - non-ECC |
| Effective Memory Speed | 4800 MT/s |
| Rated Memory Speed | 4800 MT/s |
| Form Factor | SO-DIMM 262-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az |
| Power | |
| Device Type | Power supply |
| Power Provided | 450 Watt |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA/NVMe |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| Channel Qty | 4 |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | L3 cache - 18 MB |
| Cache Per Processor | 18 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 Unified Memory Architecture (UMA) |
| Video Interfaces | DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Linux |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| Features | HP Z Turbo Drive G2, NVM Express (NVMe) |
| Input Device | |
| Type | No keyboard, no mouse |
| Dimensions & Weight | |
| Width | 15.1 in |
| Depth | 12.1 in |
| Height | 3.9 in |
| Weight | 11.02 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.8 in |
| Shipping Depth | 19.3 in |
| Shipping Height | 20.2 in |
| Shipping Weight | 13.01 lbs |
| Processor / Chipset | |
| CPU | Intel Core i5 (12th Gen) 12500 |
| Clock Speed | 3 GHz |
| Max Turbo Speed | 4.6 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 7.5 MB |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache |
| CPU Socket | LGA1700 Socket |
| Chipset Type | Intel W680 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
