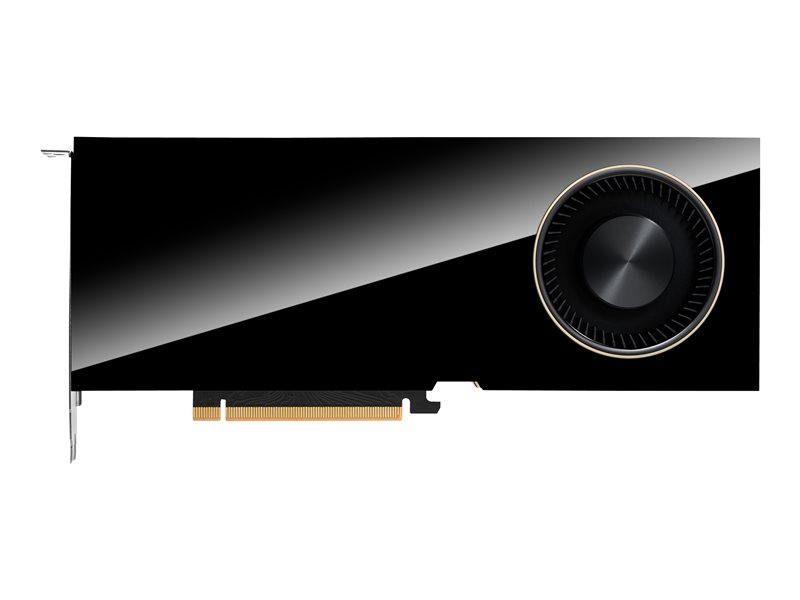

Graphics card - NVIDIA RTX 6000 Ada - 48 GB GDDR6 - PCIe 4.0 x16 - 4 x DisplayPort
| Main Specifications | |
|---|---|
| Product Description | NVIDIA RTX 6000 Ada - graphics card - NVIDIA RTX 6000 Ada - 48 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA RTX 6000 Ada |
| Memory | 48 GB GDDR6 |
| CUDA Cores | 18176 |
| Memory Interface | 384-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 4 x DisplayPort |
| API Supported | DirectX 12, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3 |
| Dimensions (WxDxH) | 10.5 in x 4.4 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA RTX 6000 Ada |
| CUDA Cores | 18176 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 at 60 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 4 x DisplayPort |
| API Supported | DirectX 12, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3 |
| Features | Active Thermal Solution, Error Correcting Codes (ECC) Memory, full-height dual-slot, HDCP |
| Memory | |
| Size | 48 GB |
| Technology | GDDR6 SDRAM |
| Bus Width | 384-bit |
| Bandwidth | 960 GBps |
| Miscellaneous | |
| Power Consumption Operational | 300 Watt |
| Compliant Standards | DisplayPort 1.4a |
| Depth | 10.5 in |
| Height | 4.4 in |
| Weight | 2.7 lbs |
