Wireless bridge - 1GbE
| Main Specifications | |
|---|---|

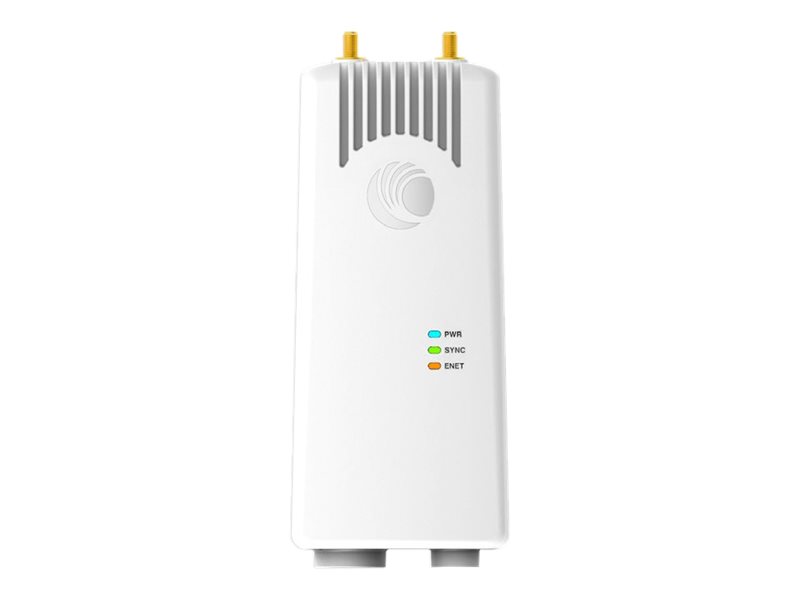

| Product Description | Cambium Networks 450b - wireless bridge |
| Device Type | Wireless bridge |
| Form Factor | External |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet |
| Frequency Band | 5 GHz |
| Included Accessories | Mounting bracket |
| Power | DC 20 - 32 V |
| Dimensions (WxDxH) | 1.6 in x 3.5 in x 9.4 in |
| Weight | 31.74 oz |
| General | |
| Device Type | Wireless bridge |
| Width | 1.6 in |
| Depth | 3.5 in |
| Height | 9.4 in |
| Weight | 31.74 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T ¦ 1 x audio - mini-jack |
| Miscellaneous | |
| Included Accessories | Mounting bracket |
| MTBF | 40 years |
| Compliant Standards | FCC-ID, IEC 61000-4-2, IEC 61000-4-5, IP67, EN 302 502 V2.1.1, EN 301 893 V2.1.1, ISED |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | 16 QAM, 256 QAM, 64 QAM, QPSK |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet |
| Spread Spectrum Method | OFDM |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, FTP |
| Remote Management Protocol | HTTP, Telnet, SNMP, HTTPS, SNMP 2c, SNMP 3 |
| Frequency Band | 5 GHz |
| Max Range Open Space | 40 miles |
| Features | 2T2R MIMO technology, auto-negotiation, full duplex mode, IPv4 support, IPv6 support, Quality of Service (QoS), GPS sync compatible, VLAN support, Auto Repeat reQuest (ARQ), 30KV ESD Protector |
| Encryption Algorithm | 128-bit AES, FIPS 197 |
| Compliant Standards | IEEE 802.3, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1Q |
| Power | |
| Voltage Required | DC 20 - 32 V |
| Power Consumption Operational | 9 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 100% (non-condensing) |
