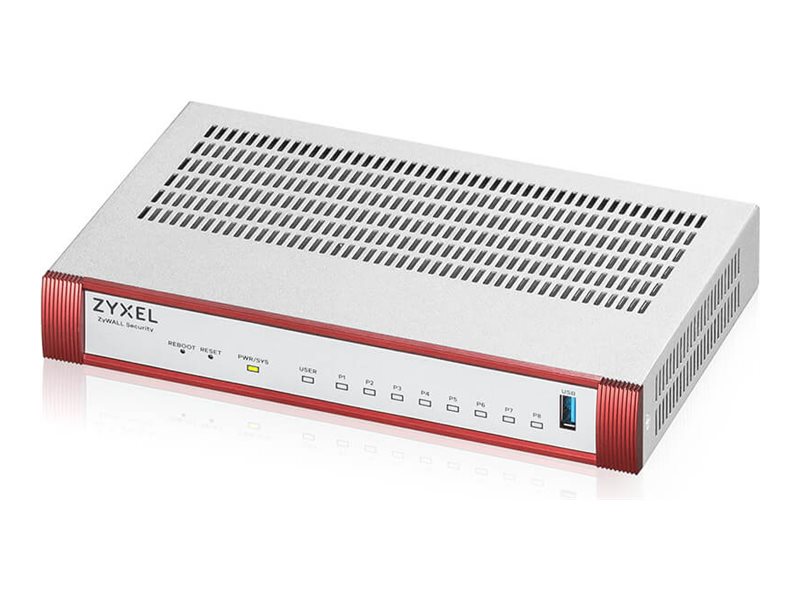

Firewall - with 2 years Gold Security Pack - 8 ports - 1GbE - cloud-managed - for USG Flex 200, 500, 700
| Main Specifications | |
|---|---|
| Product Description | Zyxel USG Flex H Series 100H - firewall - cloud-managed - with 2 years Gold Security Pack |
| Device Type | Firewall |
| Bundled Services | 2 years Gold Security Pack |
| Form Factor | External |
| Ports Qty | 8 |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet |
| Performance | SPI firewall throughput: 4000 Mbps ¦ VPN throughput: 900 Mbps ¦ IPS throughput: 1500 Mbps ¦ Anti-malware throughput: 1000 Mbps ¦ Unified Threat Management (UTM) throughput: 1000 Mbps ¦ NGFW throughput: 1500 Mbps |
| Capacity | Concurrent TCP sessions: 300000 ¦ Concurrent IPSec VPN tunnels: 50 ¦ Gateway to gateway IPSec VPN Tunnels: 20 ¦ VLANs supported: 16 ¦ Concurrent SSL VPN users: 25 ¦ Concurrent devices: 64 |
| Power | DC 12 V |
| Dimensions (WxDxH) | 8.5 in x 5.6 in x 1.3 in |
| Weight | 2.29 lbs |
| Designed For | USG Flex 200, 500, 700 |
| General | |
| Device Type | Firewall |
| Bundled Services | 2 years Gold Security Pack |
| Width | 8.5 in |
| Depth | 5.6 in |
| Height | 1.3 in |
| Weight | 2.29 lbs |
| Expansion / Connectivity | |
| Interfaces | 8 x 100/1000Base-T - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45 |
| Miscellaneous | |
| Cables Included | 1 x RJ-45 to RS-232 cable |
| MTBF | 602,150.9604 hours |
| Compliant Standards | FCC Part 15 Class B, EMC Class B, RCM Class B, BSMI, LVD |
| Networking | |
| Form Factor | External |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Cloud-Managed | Yes |
| Performance | SPI firewall throughput: 4000 Mbps ¦ VPN throughput: 900 Mbps ¦ IPS throughput: 1500 Mbps ¦ Anti-malware throughput: 1000 Mbps ¦ Unified Threat Management (UTM) throughput: 1000 Mbps ¦ NGFW throughput: 1500 Mbps |
| Capacity | Concurrent TCP sessions: 300000 ¦ Concurrent IPSec VPN tunnels: 50 ¦ Gateway to gateway IPSec VPN Tunnels: 20 ¦ VLANs supported: 16 ¦ Concurrent SSL VPN users: 25 ¦ Concurrent devices: 64 |
| Features | Fanless, anti-malware protection, Intrusion Prevention System (IPS), Application Patrol, Web Filtering, DNS reputation filtering, sandboxing, SecuReporter, collaborative detection & response, device insight, security profile synchronize, SSL inspection, 2-factor authentication, load balancing, critical applications prioritization, Tailscale encryption, Link Aggregation Group (LAG) |
| Encryption Algorithm | IKEv2, SSL |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10.9 in |
| Shipping Depth | 7.4 in |
| Shipping Height | 3.9 in |
| Shipping Weight | 3.57 lbs |
| Compatibility Information | |
| Designed For | Zyxel USG Flex 200, 500, 700 |
