180-degree hinge design - Intel Core Ultra 7 - 155H / up to 4.8 GHz - Win 11 Pro - Intel Arc Graphics - 32 GB RAM - 512 GB SSD NVMe, Performance - 14" 2560 x 1600 (WQXGA) - Gigabit Ethernet - Wi-Fi 6E, Bluetooth - star black
| Main Specifications | |
|---|---|
| Product Description | ASUS ExpertBook B5 B5404CMA-XS76T - 14" - Intel Core Ultra 7 - 155H - 32 GB RAM - 512 GB SSD |
| Product Type | Notebook - 180-degree hinge design |
| Operating System | Win 11 Pro |
| Processor | Intel Core Ultra 7 (Series 1) - 155H / 1.4 GHz, up to 4.8 GHz / 24 MB Cache |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Memory | 32 GB DDR5 (2 x 16 GB) |
| Storage | 512 GB SSD - NVMe, Performance |
| Display | 14" 2560 x 1600 / WQXGA |
| Graphics | Intel Arc Graphics |
| Keyboard Backlight | Yes |
| Integrated Webcam | Yes |
| Networking | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, Gigabit Ethernet |
| Battery | 3-cell |
| Security | Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader, smart card reader |
| Color | Star black |
| Dimensions (WxDxH) | 12.4 in x 8.9 in x 0.7 in |
| Weight | 3.24 lbs |
| Environmental Standards | TCO Certified Notebooks 9, ENERGY STAR Qualified EPEAT Gold |
| General | |
| Product Type | Notebook - 180-degree hinge design |
| Operating System | Windows 11 Pro |
| Memory | |
| RAM | 32 GB (2 x 16 GB) |
| Max RAM Supported | 64 GB |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots Qty | 2 |
| Empty Slots | 0 |
| Miscellaneous | |
| Color | Star black |
| Security | Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader, smart card reader |
| Features | Hard drive password, MIL-STD-810H tested, BIOS protection, Absolute Persistence 2.0 (Computrace) technology |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington nano security slot |
| Included Accessories | USB-C power adapter |
| Compliant Standards | RoHS, REACH, FSC |
| Storage | |
| Main Storage | 512 GB SSD M.2 2280 PCIe 4.0 - NVM Express (NVMe), Performance |
| Battery | |
| Technology | 3-cell lithium ion |
| Capacity | 63 Wh |
| Display | |
| Type | 14" |
| Resolution | 2560 x 1600 (WQXGA) |
| Widescreen | Yes |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 500 cd/m² |
| Color Gamut | 100% DCI-P3 |
| Features | Anti-glare, WideView, 84% screen-to-body ratio |
| Communications | |
| Wireless | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Network Interface | Gigabit Ethernet |
| Features | Dual stream (2x2) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 12.4 in x 8.9 in x 0.7 in |
| Weight | 3.24 lbs |
| Processor / Chipset | |
| CPU | Intel Core Ultra 7 (Series 1) 155H / 1.4 GHz |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 16-core |
| Cache | 24 MB |
| Audio & Video | |
| Graphics Processor | Intel Arc Graphics |
| Camera | Yes - 1080p |
| Camera Features | Privacy shutter, IR camera, Windows Hello |
| Sound | Dual speakers, array microphone |
| Compliant Standards | Dolby Atmos |
| Audio Features | Input: AI noise cancelling |
| Input | |
| Type | Keyboard, touchpad |
| Keyboard Backlight | Yes |
| Features | Spill-resistant, chiclet keyboard, 1.5mm travel distance |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 65 watt, 20 V, 3.25 A |
| Connections & Expansion | |
| Slots | 1 x M.2 (PCI Express 4.0 x4) (1 available) |

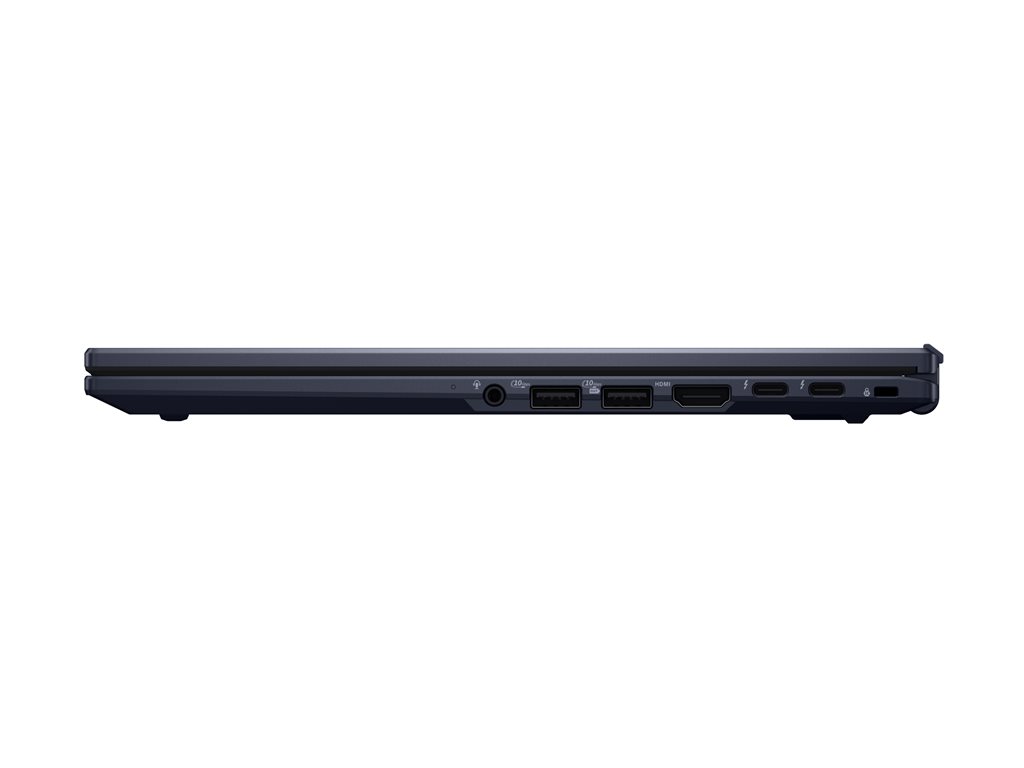

| Interfaces Details | 2 x USB 3.2 Gen 2 ¦ 2 x USB4 (supports Thunderbolt 4, DisplayPort Alt Mode) (Power Delivery) ¦ LAN ¦ Headphone/microphone combo jack ¦ HDMI |
| Sustainability Information | |
| TCO Certified | - TCO Certified Notebooks 9 |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
