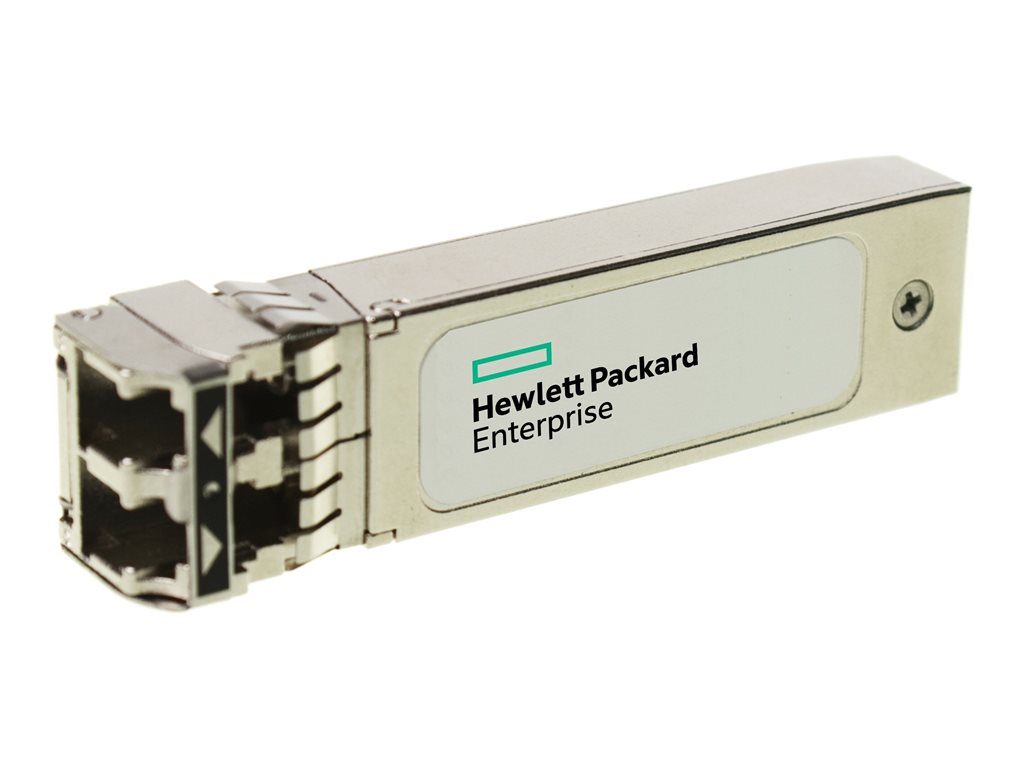

SFP+ transceiver module - 10GbE - 10GBase-SR - LC multi-mode - up to 1310 ft - 850 nm / 1310 nm
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking C-Class - SFP+ transceiver module - 10GbE |
| Device Type | SFP+ transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-SR |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm / 1310 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 1310 ft |
| Dimensions (WxDxH) | 0.6 in x 2.2 in x 0.5 in |
| Weight | 0.74 oz |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-SR - LC multi-mode female |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SR |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm / 1310 nm |
| Max Transfer Distance | 1310 ft |
| Features | 400 m transmission distance on OM4 MMF |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 2.2 in |
| Height | 0.5 in |
| Weight | 0.74 oz |
