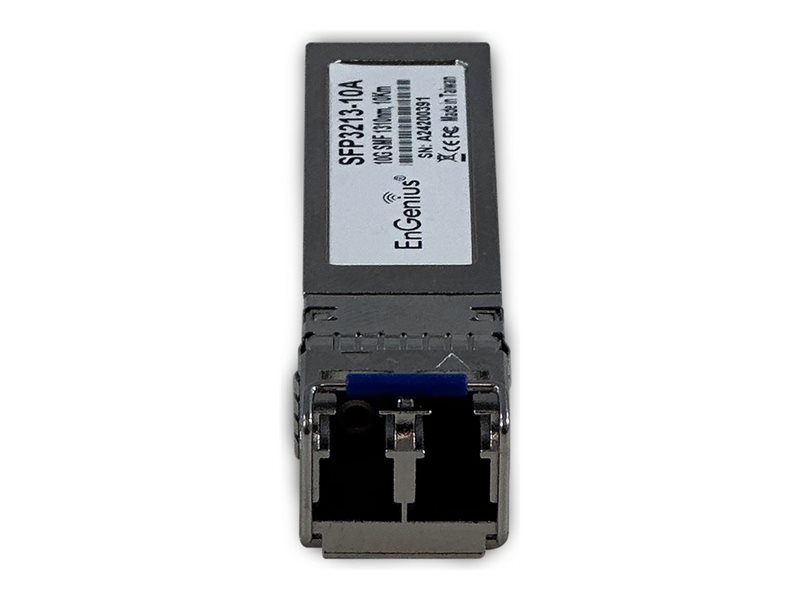

SFP+ transceiver module - 10GbE - 10GBase-LX - LC single-mode - up to 6.2 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | EnGenius - SFP+ transceiver module - 10GbE |
| Device Type | SFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-LX |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 6.2 miles |
| Power | DC 3.13 - 3.46 V |
| Dimensions (WxDxH) | 0.5 in x 2.3 in x 0.5 in |
| Weight | 0.88 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-LX - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-LX |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 6.2 miles |
| Features | Hot swappable, Rx power max 1.5 dBm, -12.6 dBm sensitivity (Rx) |
| Compliant Standards | IEEE 802.3az |
| Power | |
| Voltage Required | DC 3.13 - 3.46 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.3 in |
| Height | 0.5 in |
| Weight | 0.88 oz |
