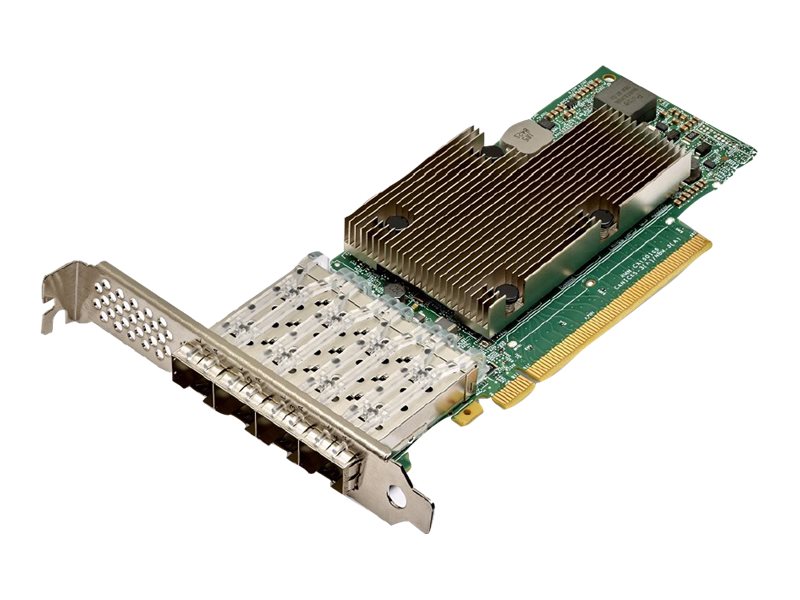

Network adapter - PCIe 4.0 x16 - 10Gb Ethernet / 25Gb Ethernet SFP28 x 4
| Main Specifications | |
|---|---|
| Product Description | Broadcom BCM57504 - network adapter - PCIe 4.0 x16 - 10Gb Ethernet / 25Gb Ethernet SFP28 x 4 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 4.0 |
| Ports | 10Gb Ethernet / 25Gb Ethernet SFP28 x 4 |
| Data Link Protocol | 10GbE, 25GbE, RoCE v2 |
| Data Transfer Rate | 25 Gbps |
| Processor | 1 x Broadcom BCM57504 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 4 x 10Gb Ethernet/25Gb Ethernet - SFP28 |
| Networking | |
| Ports | 10Gb Ethernet / 25Gb Ethernet SFP28 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v2) |
| Data Transfer Rate | 25 Gbps |
| Features | UEFI PXE Boot, legacy BIOS PXE Boot, IPv4 support, IPv6 support, UEFI support, VXLAN, NVGRE, RSS, GENEVE support, Mware NetQueue and Microsoft VMQ, NPAR, SR-IOV, DPDK, firmware root of trust, secure boot, audit logs, sanitization, tunnel offload |
| Power | |
| Power Consumption Operational | 15.2 Watt |
| Processor / Memory | |
| Processor | 1 x Broadcom BCM57504 |
