DLP projector - 4000 ANSI lumens - WXGA (1280 x 800) - 16:10 - 720p - zoom lens - with 1 year Express Exchange Service with product registration
| Main Specifications | |
|---|---|
| Product Description | ViewSonic PA504W - DLP projector - zoom lens |
| Device Type | DLP projector - 720p |
| Built-in Devices | Keypad |
| Bundled Services | 1 year Express Exchange Service with product registration |
| Microdisplay | DMD Chip |
| Brightness | 4000 ANSI lumens |
| Contrast Ratio | 22000:1 (dynamic) |
| Resolution | WXGA (1280 x 800) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Lens | Zoom lens |
| Lamp Life Cycle | Up to 5000 hours - normal mode ¦ Up to 15000 hours - economic mode |
| Video Modes | 480p, 480i, 576i, 576p, 1080i, 1080p, 720p |
| Speakers | Speaker(s) - internal |
| Power | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 255 watt |
| Dimensions (WxDxH) | 11.6 in x 8.6 in x 4.3 in |
| Weight | 5.14 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | DLP projector - 720p |
| Built-in Devices | Keypad |
| Bundled Services | 1 year Express Exchange Service with product registration |
| Expansion / Connectivity | |

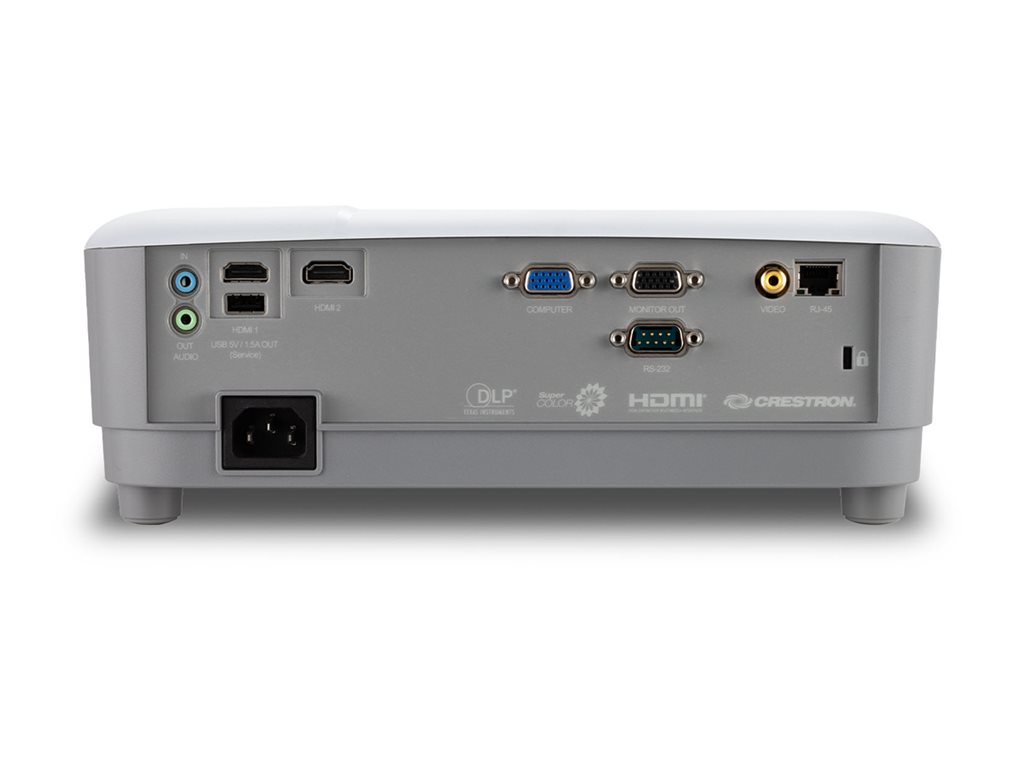

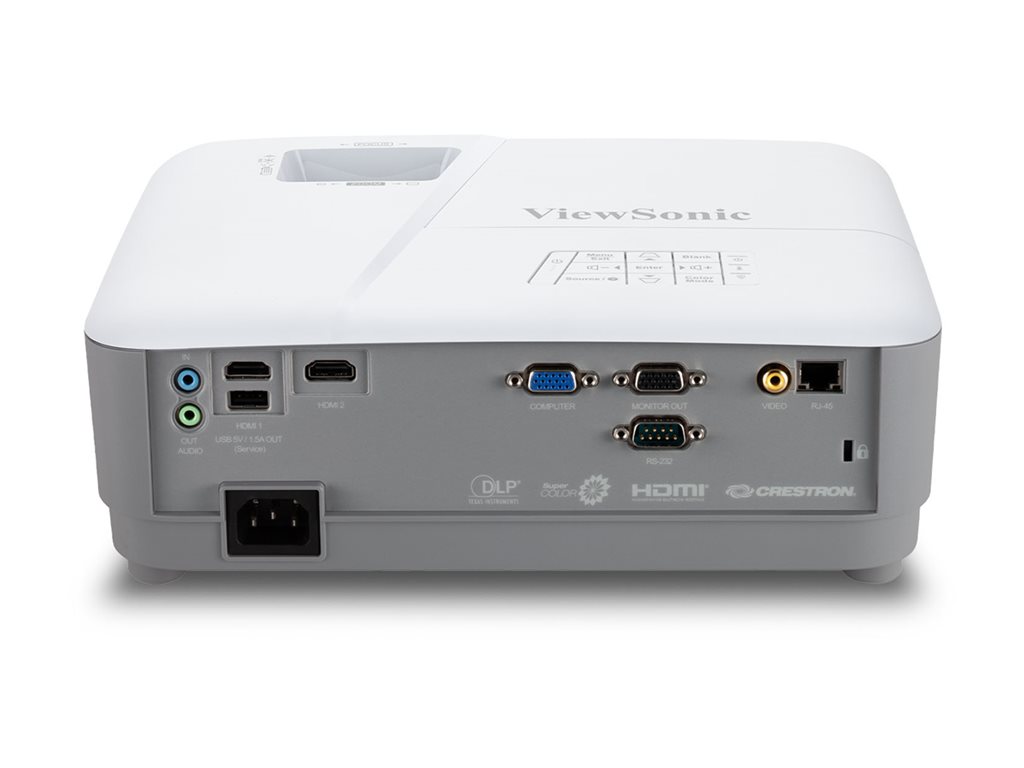

| Interfaces | 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x USB - 4 pin USB Type A ¦ 1 x serial RS-232 ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-in - mini-phone 3.5 mm ¦ 1 x audio line-out - mini-phone 3.5 mm ¦ 1 x HDBaseT - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years ¦ Limited warranty - lamp - 1 year |
| Miscellaneous | |

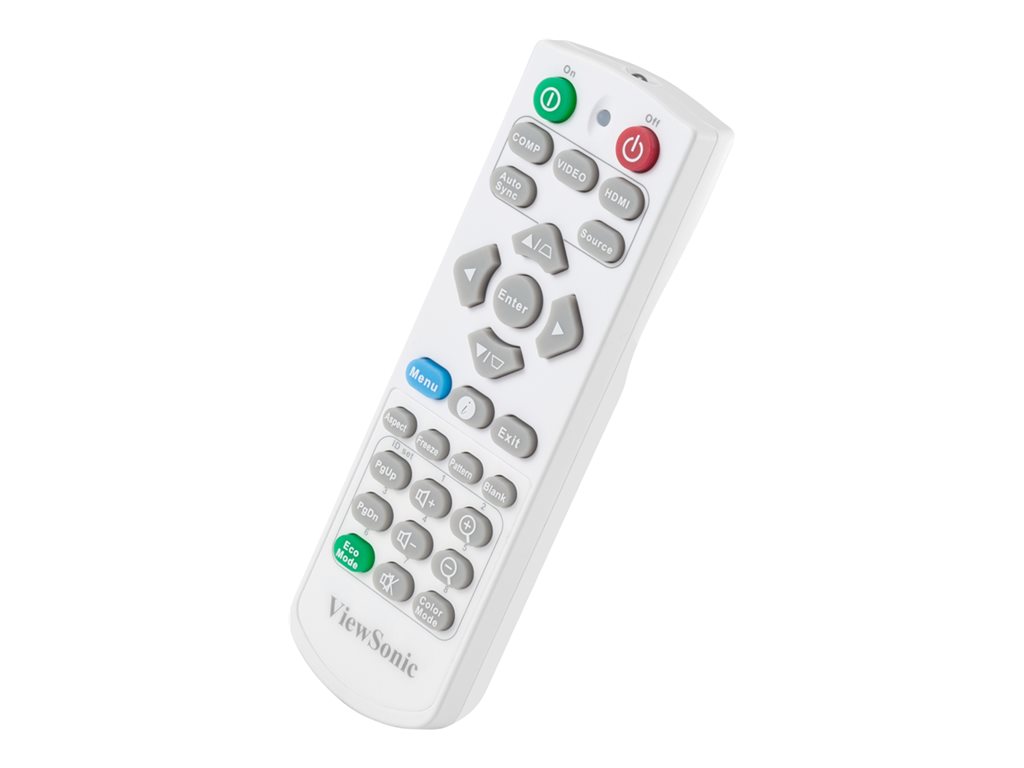

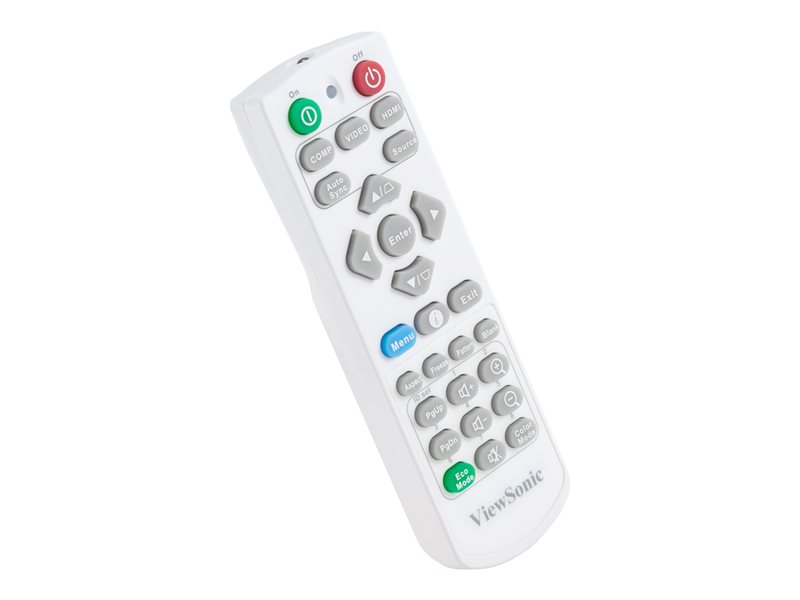

| Included Accessories | Remote control |
| Security Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | cTUVus |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 255 watt |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video Input | |
| Video Interfaces | Composite video, HDMI, VGA |
| Video Modes | 480p, 480i, 576i, 576p, 1080i, 1080p, 720p |
| Dimensions & Weight | |
| Width | 11.6 in |
| Depth | 8.6 in |
| Height | 4.3 in |
| Weight | 5.14 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16.3 in |
| Shipping Depth | 6.6 in |
| Shipping Height | 11.7 in |
| Shipping Weight | 7.8 lbs |
| Projector | |
| Microdisplay | DMD Chip |
| Brightness | 4000 ANSI lumens |
| Contrast Ratio | 22000:1 (dynamic) |
| Image Size | 29.9 in - 300 in |
| Throw Ratio | 1.21 - 1.57:1 |
| Resolution | WXGA - WXGA (1280 x 800) (native) / 1920 x 1080 (resized) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Max Sync Rate (V x H) | 120 Hz x 102 kHz |
| Lamp Life Cycle | Up to 5000 hours - normal mode ¦ Up to 15000 hours - economic mode |
| Controls & Adjustments | Keystone correction, zoom |
| Features | Eco Mode, Crestron Connected |
| Lens | |
| Type | Zoom lens |
| Zoom Factor | 1.3x |
| Keystone Correction Direction | Vertical |
| Vertical Keystone Correction | -40 / +40 |
| Speakers | |
| Type | Internal |
| Output Power / Channel | 10 watt |
