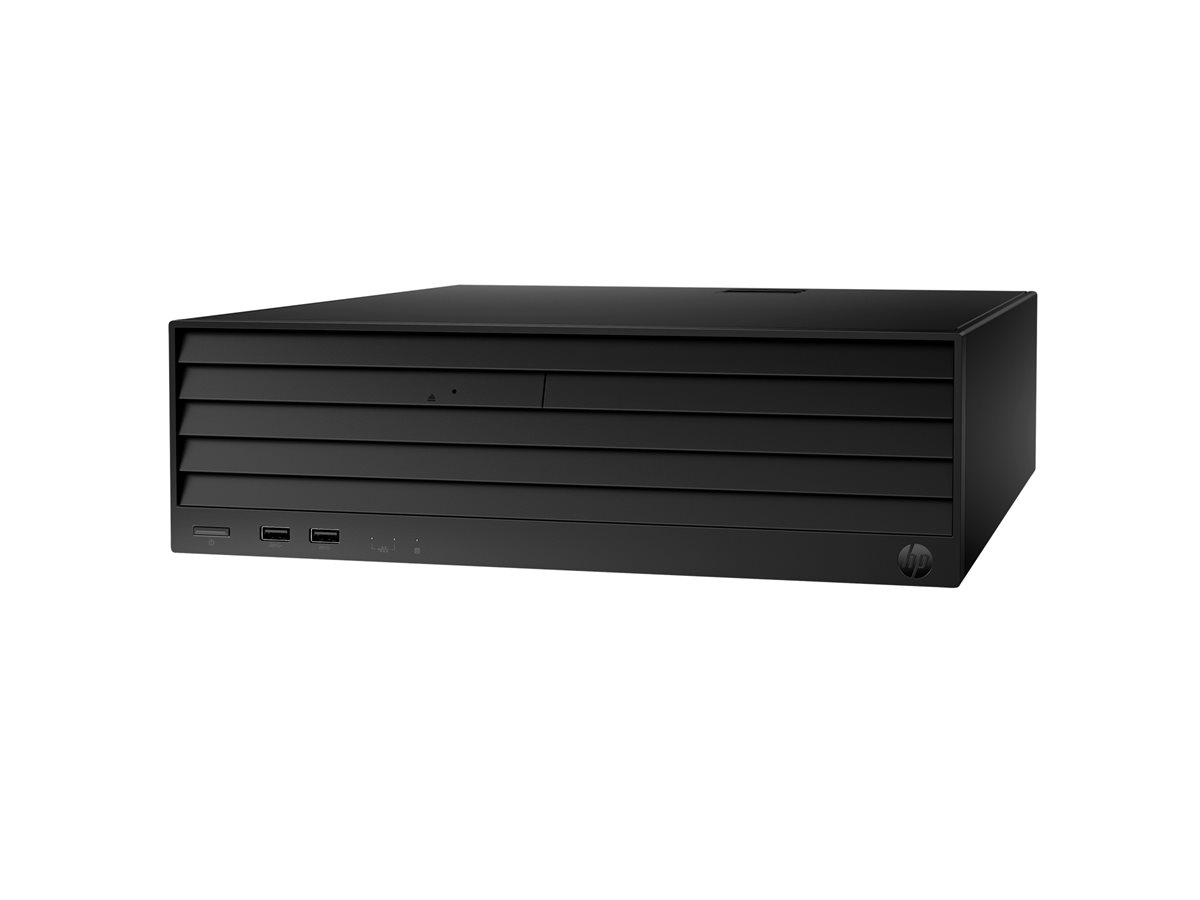

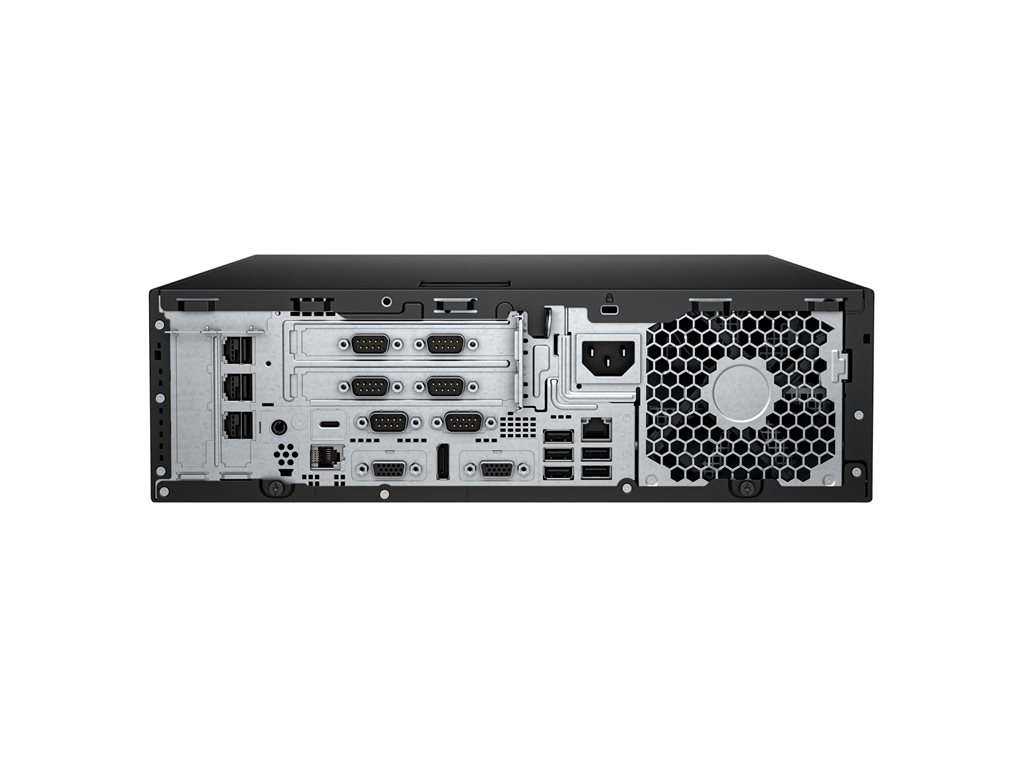

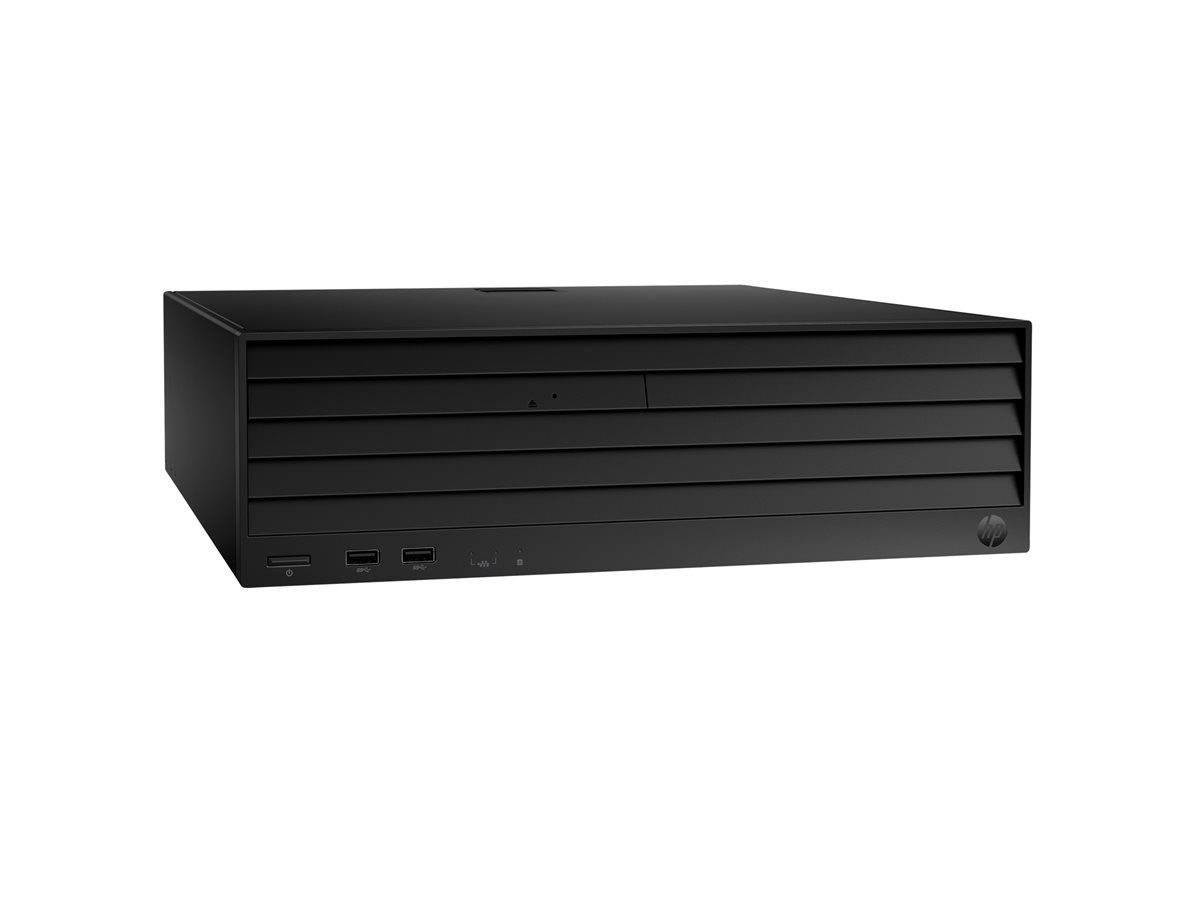

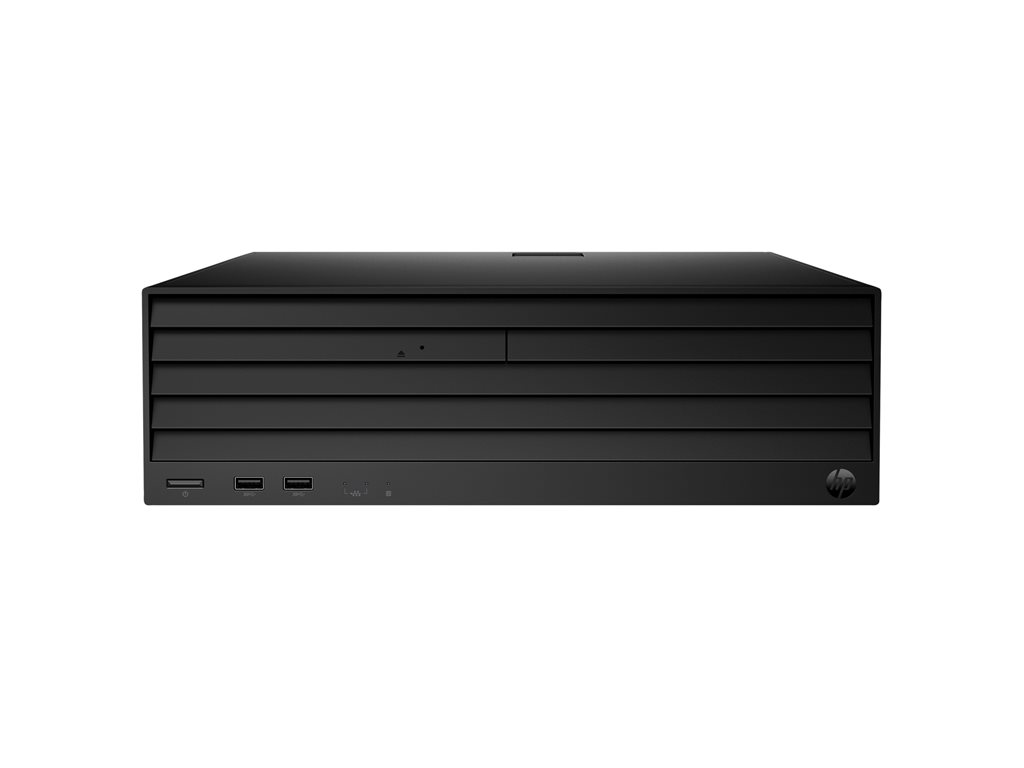

SFF 1 x Core i3 i3-13100E / up to 4.4 GHz - RAM 16 GB - SSD 2 x 256 GB - NVMe - DVD-Writer - UHD Graphics 730 - Gigabit Ethernet - Win 11 Pro - monitor: none - Smart Buy
| Main Specifications | |
|---|---|
| Product Description | HP Engage Flex Pro G2 Retail System - SFF Core i3 i3-13100E 3.3 GHz - 16 GB - SSD 2 x 256 GB |
| Type | Point of sale terminal - SFF |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Core i3 (13th Gen) i3-13100E / 3.3 GHz (up to 4.4 GHz, (Quad-Core) |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 12 MB L3 cache |
| Cache Per Processor | 12 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR5 SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | 2 x SSD 256 GB - PCI Express - M.2 - NVM Express (NVMe) |
| Optical Storage | DVD-Writer |
| Graphics Controller | Intel UHD Graphics 730 Dynamic Video Memory Technology |
| Audio Output | Stereo |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP PC Hardware Diagnostics UEFI, Intel Active Management Technology, HP Secure Erase, HP BIOSphere, HP Image Assistant, HP Sure Click, HP Privacy Settings, HP Sure Sense, Device Guard, HP QuickDrop, myHP, Touchpoint Customizer for Commercial, HSA Fusion for Commercial, HSA Telemetry for Commercial, HP Tamper Lock, HP Client Security Manager Gen7, HP Easy Clean, HP Sure Recover Gen5, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Easy Clean Keyboard Driver, HP Sure Start Gen7, Self Encrypting Drives, HP Sure Admin Gen2, HP Driver Packs (free download), HP Manageability Integration Kit Gen4 (free download) |
| Dimensions (WxDxH) | 13.3 in x 15 in x 3.9 in |
| Weight | 14.2 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | ENERGY STAR Qualified EPEAT Gold |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | SFF |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal 3.5" |
| Slots | 2 (total) / 2 (free) x PCIe - full-height (x1 mode) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - half-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - half-height (x4 mode) ¦ 2 (total) / 0 (free) x M.2 Card |
| Interfaces | 3 x USB 3.2 Gen 1 (charging) ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x DisplayPort 1.4 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x headphones/microphone |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | VCCI, BSMI, GS, FCC, RoHS, KCC, WEEE, ICES, cULus, Common Criteria EAL4+, EAC, RCM, BIS, low halogen, IEC 950, Ukraine |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM - non-ECC |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 16 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 2 |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Power Provided | 250 watt |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | L3 cache - 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | DVD-Writer |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 730 Dynamic Video Memory Technology |
| Video Interfaces | DisplayPort |
| HDCP Compatible | Yes |
| Audio Output | |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 192 kHz |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP PC Hardware Diagnostics UEFI, Intel Active Management Technology, HP Secure Erase, HP BIOSphere, HP Image Assistant, HP Sure Click, HP Privacy Settings, HP Sure Sense, Device Guard, HP QuickDrop, myHP, Touchpoint Customizer for Commercial, HSA Fusion for Commercial, HSA Telemetry for Commercial, HP Tamper Lock, HP Client Security Manager Gen7, HP Easy Clean, HP Sure Recover Gen5, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Easy Clean Keyboard Driver, HP Sure Start Gen7, Self Encrypting Drives, HP Sure Admin Gen2, HP Driver Packs (free download), HP Manageability Integration Kit Gen4 (free download) |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 2 x 256 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | No keyboard, no mouse |
| Dimensions & Weight | |
| Width | 13.3 in |
| Depth | 15 in |
| Height | 3.9 in |
| Weight | 14.2 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.4 in |
| Shipping Depth | 9.4 in |
| Shipping Height | 19.3 in |
| Shipping Weight | 16.31 lbs |
| Processor / Chipset | |
| CPU | Intel Core i3 (13th Gen) i3-13100E |
| Clock Speed | 3.3 GHz |
| Max Turbo Speed | 4.4 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 5 MB |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology |
| Chipset Type | Intel Q670 |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
