Thin client - SFF 1 x Ryzen Embedded V2546 / up to 3.95 GHz - RAM 16 GB - SSD 256 GB - NVMe - Radeon Graphics - Gigabit Ethernet - Win 10 IoT Enterprise - monitor: none - with HP 3 years Offsite Thin Client Support Bundling
| Main Specifications | |
|---|---|
| Product Description | HP Elite t755 - SFF Ryzen Embedded V2546 3 GHz - 16 GB - SSD 256 GB |
| Type | Thin client - SFF |
| Bundled Services | HP 3 years Offsite Thin Client Support Bundling |
| Localization | Language: English / region: United States |
| Processor | 1 x AMD Ryzen Embedded V2546 / 3 GHz (up to 3.95 GHz, (6-core) |
| Processor Main Features | AMD Memory Guard |
| Cache Memory | 8 MB L3 cache |
| Cache Per Processor | 8 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Hard Drive | SSD 256 GB - PCI Express - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | AMD Radeon Graphics |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| OS Provided | Windows 10 IoT Enterprise |
| Software Included | Mozilla Firefox, HP Device Manager, HP ThinUpdate, HP True Graphics, HP Easy Shell, Microsoft SCCM/EDM-agent, HP USB Port Manager, HP Smart Zero Client Services, HP Write Manager, HP User State Tool, HP Easy Update |
| Dimensions (WxDxH) | 2 in x 8.3 in x 8.3 in |
| Weight | 3.09 lbs |
| Environmental Standards | TCO Certified, generation 10, for desktops, ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 1 year |
| General | |
| Type | Thin client |
| Bundled Services | HP 3 years Offsite Thin Client Support Bundling |
| Product Form Factor | SFF |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Slots | 2 (total) / 1 (free) x M.2 Card (for internal storage) ¦ 1 (total) / 1 (free) x PCIe x16 (half-height) |

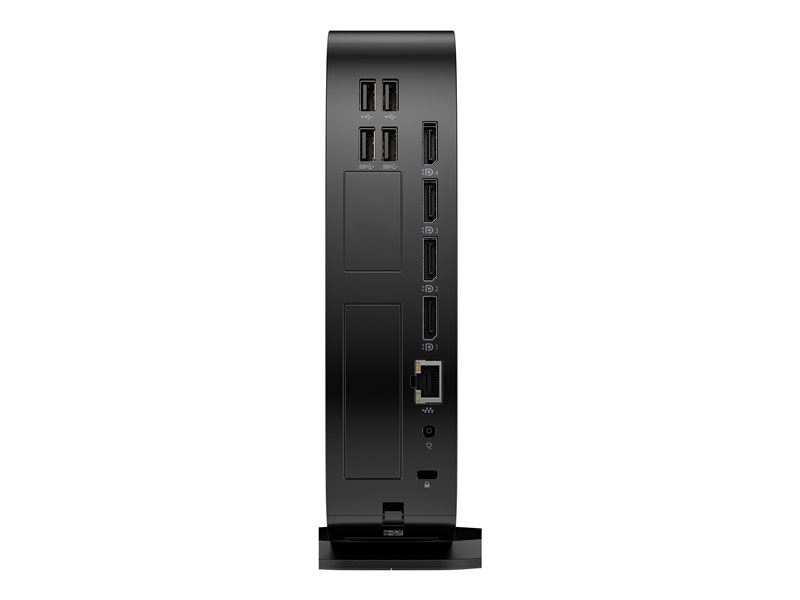

| Interfaces | 4 x USB 3.2 Gen 1 (2 front, 2 rear) ¦ 1 x USB-C 3.2 Gen 2 (1 front) ¦ 1 x audio line-out/line-in - mini-jack (1 front) ¦ 4 x DisplayPort 1.2 (4 rear) ¦ 2 x USB 2.0 - Type A (2 rear) ¦ 1 x LAN (Gigabit Ethernet) (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, VESA |
| Compliant Standards | FCC Class B certified, UL, BSMI, GS, CB, CCC, EMC, ICES Class B, WEEE, KCC Class B, CECP, RoHS2, VCCI Class B, SEPA, low halogen, Energy-Related Products (ErP) Lot 3, HP GSE, EN60601-1-2, AS/NZS Class B, CNS Class B |
| RAM | |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 0 (empty) |
| Features | Dual channel memory architecture |
| Configuration Features | 2 x 8 GB |
| Networking | |
| Ethernet Controller | Realtek RTL8111HSH-CG |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Power Device Name | HP Smart AC Adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 90 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Cache Memory | |
| Installed Size | L3 cache - 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | AMD Radeon Graphics |
| Video Interfaces | DisplayPort |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise English |
| Software | Mozilla Firefox, HP Device Manager, HP ThinUpdate, HP True Graphics, HP Easy Shell, Microsoft SCCM/EDM-agent, HP USB Port Manager, HP Smart Zero Client Services, HP Write Manager, HP User State Tool, HP Easy Update |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | No keyboard, no mouse |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 8.3 in |
| Height | 8.3 in |
| Weight | 3.09 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 8.37 lbs |
| Processor / Chipset | |
| CPU | AMD Ryzen Embedded V2546 |
| Clock Speed | 3 GHz |
| Max Turbo Speed | 3.95 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 3 MB |
| CPU Upgradability | Not upgradable |
| Processor Main Features | AMD Memory Guard |
| Sustainability Information | |
| TCO Certified | TCO Certified, generation 10, for desktops |
| ENERGY STAR Certified | Yes |
