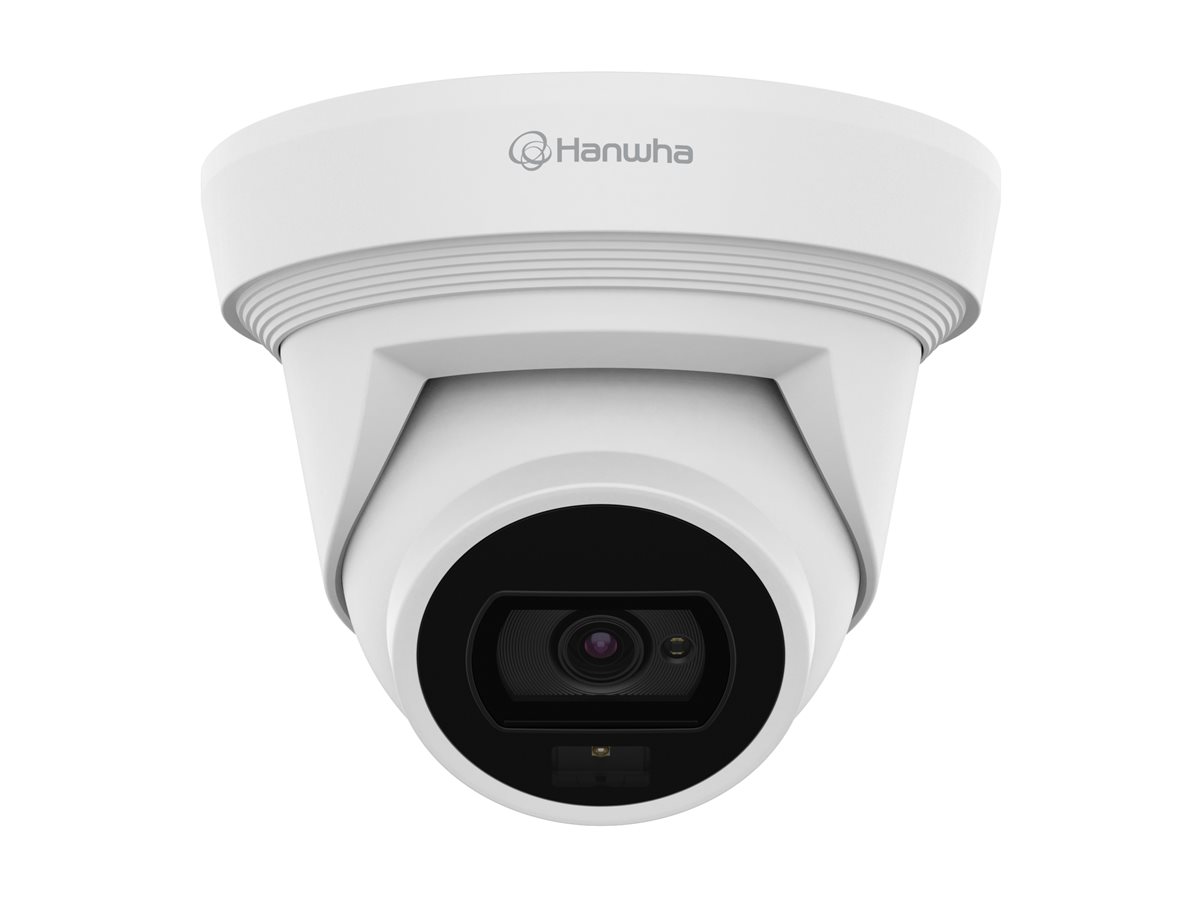

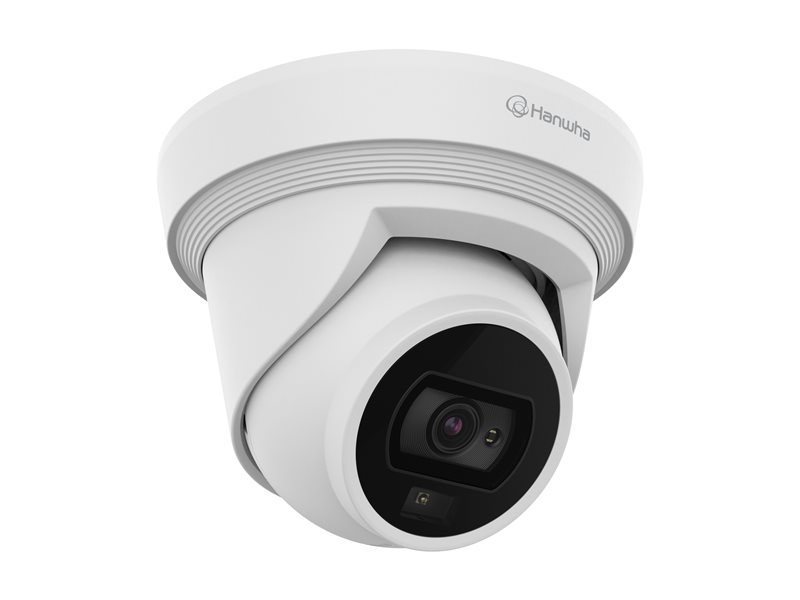

Network surveillance camera - pan / tilt - dome - color (Day&Night) - 5 MP - 2592 x 1944 - M12 mount - fixed iris - fixed focal - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision WiseNet Q QNE-C8013RL - network surveillance camera - dome |
| Device Type | Network surveillance camera - pan / tilt - dome |
| Dimensions (WxDxH) | 5.5 in x 5.5 in x 3.9 in |
| Weight | 27.86 oz |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2592 x 1944 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/2.8" - 5 MP |
| Minimum Illumination | 0.022 lux - color - F1.2 - shutter 1/30 sec ¦ 0.0022 lux - B&W - F1.2 - 30 IRE - shutter 1/30 sec ¦ 0 lux - infrared LEDs on |
| Focal Length Control | Fixed focal |
| Focal Length | 3 mm |
| Lens Mounting | M12 mount |
| Focus Adjustment | Fixed focus (min distance 6.6 ft) |
| Lens Iris | F/1.2 - fixed iris |
| Panning Range (degree) | 0 to 350 |
| Tilting Range (degree) | 0 to 75 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | Auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, WiseNR II, Lens Distortion Compensation (LDC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, anti-flicker, digital PTZ function, image flip, image mirror, Hallway View, Object Detection, Person Detection, Vehicle Detection, Virtual Line detection, vehicle type classification, loitering detection, intrusion detection, entrance / exit detection, Defocus Detection, tamper-detection, people counting, vehicle counting, queue management, Heat Map, network disconnection trigger, notification picture to FTP, notification picture to E-mail, Handover, strobe light alarm, WiseStream III support, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, secure boot, signed firmware, firmware encryption, digest authentication, brute force delay protection, 802.1x authentication, Gain Control |
| Environmental Parameters (operating) | -40 °F - 140 °F; 0 - 95% RH relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 5.5 in |
| Depth | 5.5 in |
| Height | 3.9 in |
| Weight | 27.86 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | EAP-TLS, LEAP, PEAP, MSCHAPv2 |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3af Class 3, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, cULus, NDAA |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 10 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% RH |
| Camera | |
| Type | Color - Day&Night - pan / tilt |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.022 lux - color - F1.2 - shutter 1/30 sec ¦ 0.0022 lux - B&W - F1.2 - 30 IRE - shutter 1/30 sec ¦ 0 lux - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Features | Auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, WiseNR II, Lens Distortion Compensation (LDC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, anti-flicker, digital PTZ function, image flip, image mirror, Hallway View, Object Detection, Person Detection, Vehicle Detection, Virtual Line detection, vehicle type classification, loitering detection, intrusion detection, entrance / exit detection, Defocus Detection, tamper-detection, people counting, vehicle counting, queue management, Heat Map, network disconnection trigger, notification picture to FTP, notification picture to E-mail, Handover, strobe light alarm, WiseStream III support, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, secure boot, signed firmware, firmware encryption, digest authentication, brute force delay protection, 802.1x authentication, Gain Control |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 3 mm |
| Lens Iris | F/1.2 fixed iris |
| Focus Adjustment | Fixed focus |
| Min Focus Distance | 6.6 ft |
| Horizontal Field of View (degree) | 97 |
| Vertical Field of View (degree) | 53 |
| Diagonal Field of View (degree) | 113 |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Effective Pixels | 2592 x 1944 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, LLDP, SRTP, MQTT, Bonjour, TCP, CDP |
| Panning | |
| Range (degree) | 0 to 350 |
| Tilting | |
| Range (degree) | 0 to 75 |
