Wireless router 1GbE - WAN ports: 4 - Wi-Fi 5 - Dual Band - 4G, 5G - TAA Compliant - for Peplink ACW-232, ACW-341, ACW-756; Pepwave ACW-630
| Main Specifications | |
|---|---|
| Product Description | Pepwave MAX MBX Mini - wireless router - Wi-Fi 5 - 4G, 5G - desktop - TAA Compliant |
| Device Type | Wireless router |
| Enclosure Type | Desktop |
| Cellular Protocol | LTE, 5G |
| Generation | 4G, 5G |
| Cellular Band | 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71 |
| WAN Ports Qty | 4 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Routing throughput: 2.5 Gbps ¦ PepVPN/SpeedFusion throughput: 600 Mbps ¦ PepVPN/SpeedFusion throughput (256-bit AES): 500 Mbps |
| Capacity | Number of PepVPN peers: 3 (upgradeable to 20) ¦ Recommended users: 50 - 500 |
| Features | 2x2 MIMO technology, hot failover, bandwidth bonding, Ignition Sense, SpeedFusion Smoothing technology, LED status indicators |
| Compliant Standards | IEEE 802.3at |
| Dimensions (WxDxH) | 7.3 in x 8.1 in x 1.6 in |
| Weight | 4.19 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| Designed For | Peplink ACW-232, ACW-341, ACW-756; Pepwave ACW-630 |
| General | |
| Device Type | Wireless router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Routing throughput: 2.5 Gbps ¦ PepVPN/SpeedFusion throughput: 600 Mbps ¦ PepVPN/SpeedFusion throughput (256-bit AES): 500 Mbps |
| Capacity | Number of PepVPN peers: 3 (upgradeable to 20) ¦ Recommended users: 50 - 500 |
| Encryption Algorithm | 256-bit AES |
| Features | 2x2 MIMO technology, hot failover, bandwidth bonding, Ignition Sense, SpeedFusion Smoothing technology, LED status indicators |
| Compliant Standards | IEEE 802.3at, FCC, RoHS, E Mark, EN 61373, EN 50155, EN 61000 |
| Status Indicators | Power, status, cellular mode |
| Expansion / Connectivity | |
| Interfaces | WAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 ¦ WAN: 2 x 4 pin USB Type A ¦ Antenna: 8 x SMA ¦ Antenna: 4 x RP-SMA ¦ Antenna: 1 x SMA - GPS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

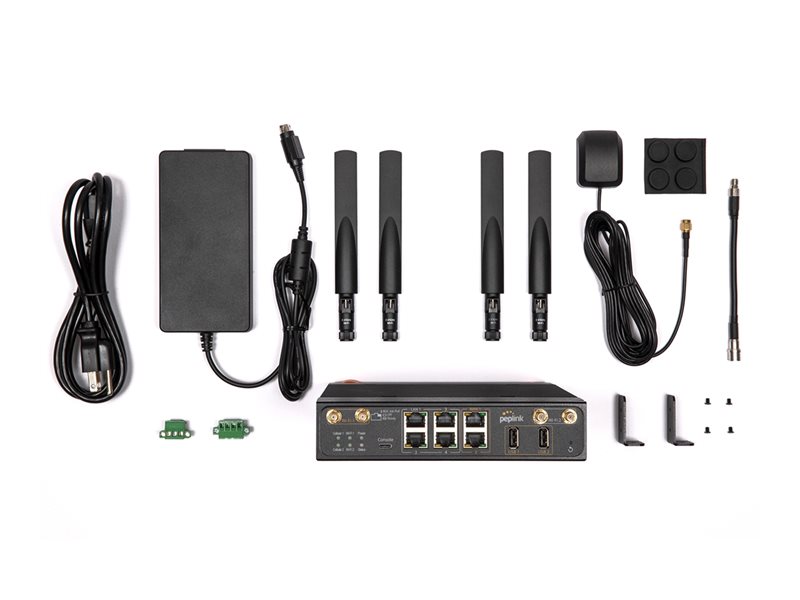

| Included Accessories | GPS antenna, mounting brackets, power supply, rubber feet set, 3-pin terminal block connector (ignition sense), 4-pin terminal block connector (power supply) |
| Mounting Kit | Included |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 45 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Communications | |
| Cellular Protocol | LTE, 5G |
| Generation | 4G, 5G |
| Cellular Band | 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71 |
| Max Transfer Rate | 3.4 Gbps |
| Dimensions & Weight | |
| Width | 7.3 in |
| Depth | 8.1 in |
| Height | 1.6 in |
| Weight | 4.19 lbs |
| Antenna | |
| Antenna | External detachable |
| Compatibility Information | |
| Designed For | Peplink ACW-232, ACW-341, ACW-756 ¦ Pepwave ACW-630 |
