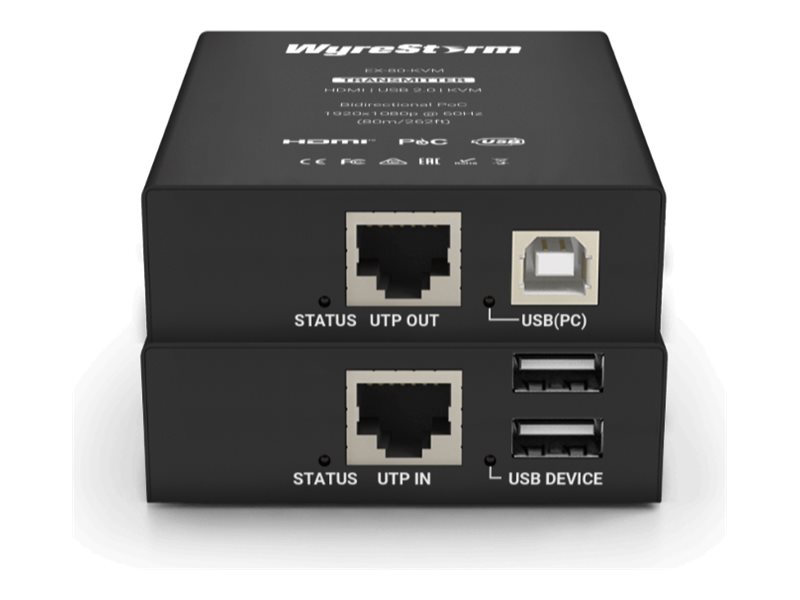

Transmitter and receiver - KVM / USB extender - HDMI, USB 2.0 - over UTP - USB - up to 262 ft - 1U
| Main Specifications | |
|---|---|
| Product Description | WyreStorm - transmitter and receiver - KVM / USB extender - HDMI, USB 2.0 |
| Device Type | KVM / USB extender - USB |
| Form Factor | External - 1U |
| Data Transfer Rate | 6.75 Gbps |
| Data Link Protocol | HDMI, USB 2.0 |
| Transmission Medium | UTP |
| Max Transfer Distance | 262 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | 12 V |
| Dimensions (WxDxH) | 3 in x 3.9 in x 0.9 in |
| Weight | 7.76 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | KVM / USB extender |
| Form Factor | External - 1U |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (transmitter input) - 19 pin HDMI Type A ¦ 1 x USB (transmitter input) - Type B ¦ 1 x network (transmitter output) - RJ-45 ¦ 1 x network (receiver input) - RJ-45 ¦ 2 x USB (receiver input) - Type A ¦ 1 x HDMI (receiver output) - 19 pin HDMI Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Power supply, 4 mounting brackets |
| Cables Included | 1 x USB-A to USB-B cable |
| Compliant Standards | DCI (Digital Cinema Initiatives), FCC, RoHS, RCM, EAC |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, USB 2.0 |
| Data Transfer Rate | 6.75 Gbps |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 1920 x 1080 @ 60 Hz |
| Max Transfer Distance | 262 ft |
| Status Indicators | Status |
| Features | DTS:X support, Dolby Atmos support, EDID Management |
| Compliant Standards | HDCP 1.4, IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | 12 V |
| Power Consumption Operational | 3.6 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 3.9 in |
| Height | 0.9 in |
| Weight | 7.76 oz |
