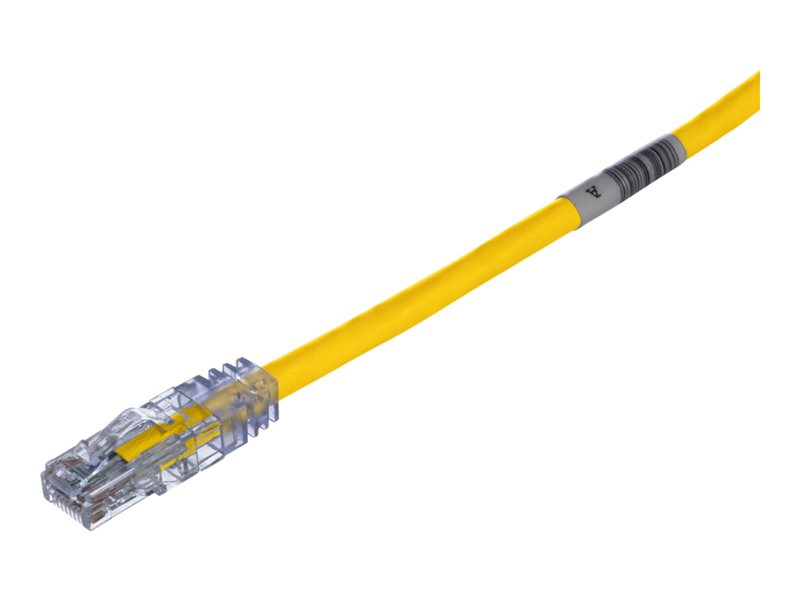

Patch cable - RJ-45 (M) to RJ-45 (M) - 3.3 ft - 0.2 in - UTP - CAT 6 - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt type 3 and type 4 - booted, halogen-free, stranded - yellow
| Main Specifications | |
|---|---|
| Product Description | Panduit Pan-Net TX6 PLUS patch cable - 3.3 ft - yellow |
| Type | Patch cable - CAT 6 - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt type 3 and type 4 |
| Technology | UTP |
| Wiring Scheme | T568B |
| Features | Booted, halogen-free, stranded, strain relief, minimized Near-End Crosstalk (NEXT), clear connector boots, tangle-free latch, polycarbonate housing plug |
| Length | 3.3 ft |
| Diameter | 0.2 in |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | Yellow |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Network Cable Type | Patch cable - CAT 6 - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt type 3 and type 4 |
| Technology | UTP |
| Wiring Scheme | T568B |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 24 |
| Features | Booted, halogen-free, stranded, strain relief, minimized Near-End Crosstalk (NEXT), clear connector boots, tangle-free latch, polycarbonate housing plug |
| Length | 3.3 ft |
| Diameter | 0.2 in |
| Color | Yellow |
| Manufacturer Warranty | |
| Service & Support | 1-year warranty |
| Miscellaneous | |
| Compliant Standards | UL 1863, IEC 60603-7, RoHS, ISO/IEC 11801 Class E, ANSI/TIA-1096-A, ANSI/TIA-568.2-D Cat 6, CAN/CSA-C22.2 - up to 250 MHz |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
