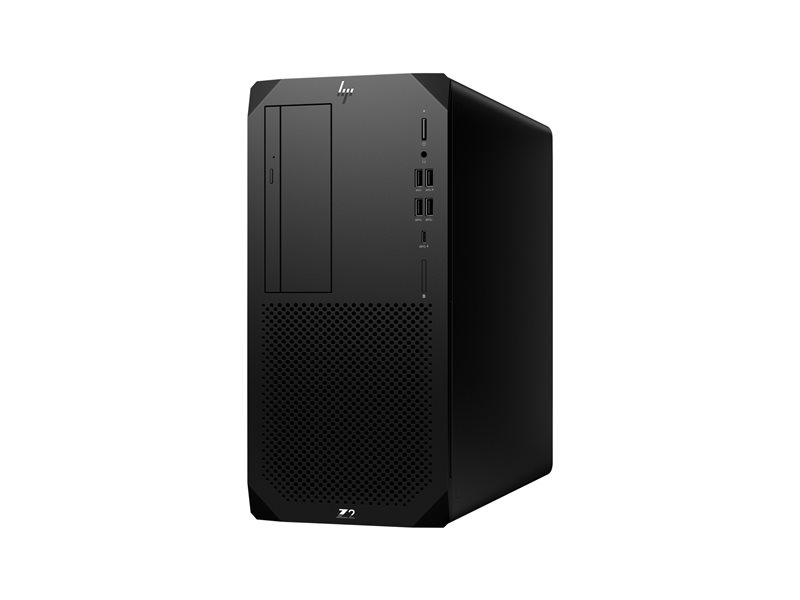

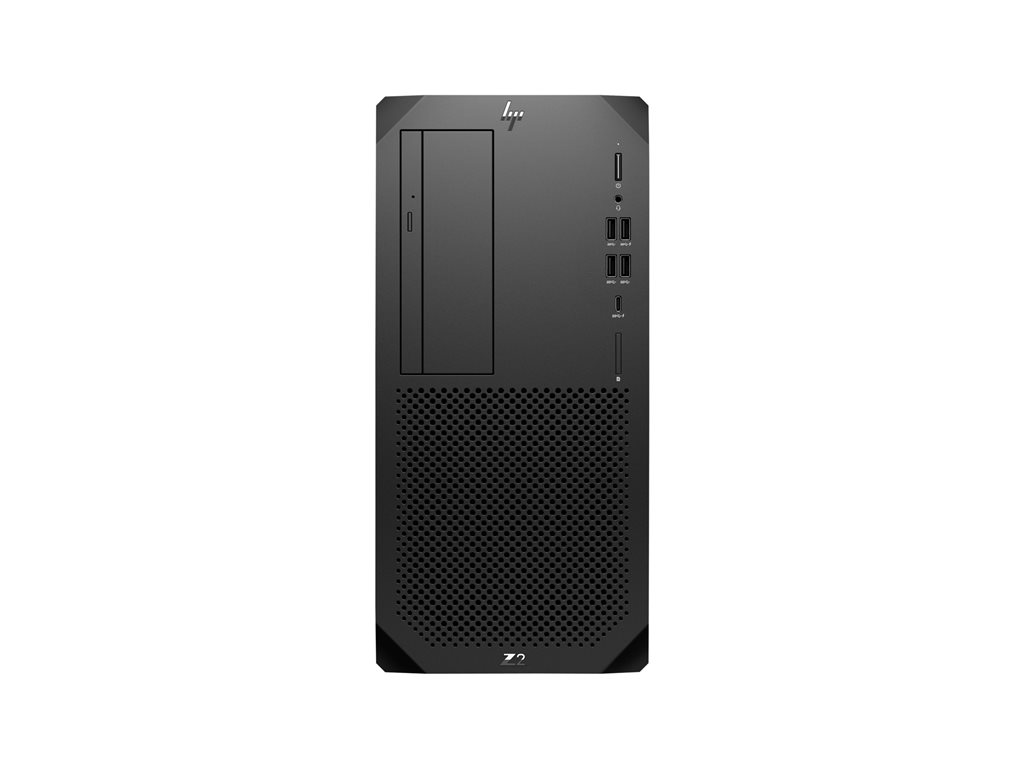

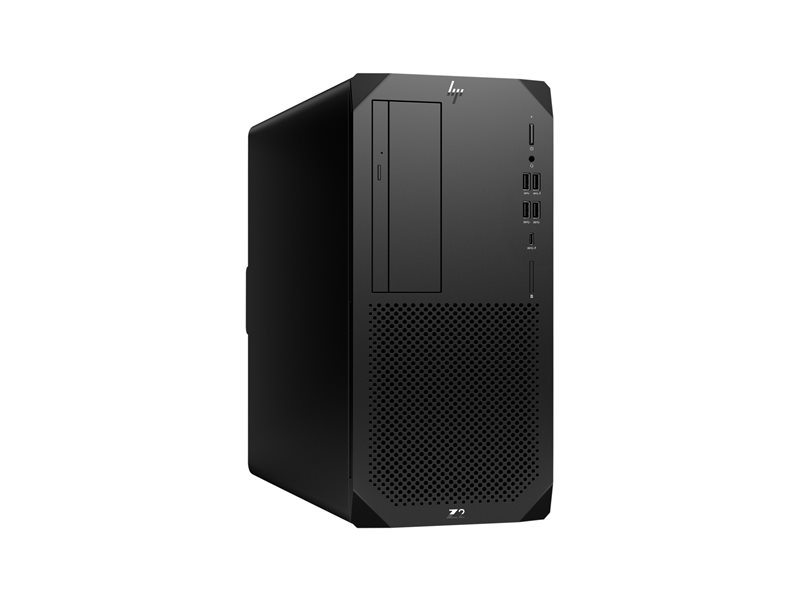

AI Workstation - tower 4U - 1 x Core i9 13900K / up to 5.8 GHz - RAM 64 GB - SSD 4 TB - HP Z Turbo Drive, NVMe, SSD 4 TB, SSD 2 TB - RTX A5000 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - black
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z2 G9 - tower - AI Workstation - Core i9 13900K 3 GHz - 64 GB - SSD 4 TB, SSD 4 TB, SSD 2 TB |
| Type | Workstation - tower - AI Workstation |
| Height (Rack Units) | 4U |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Core i9 (13th Gen) 13900K / 3 GHz (up to 5.8 GHz, (24-core) |
| Processor Socket | LGA1700 Socket |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 36 MB L3 cache |
| Cache Per Processor | 36 MB |
| RAM | 64 GB (installed) / 128 GB (max) - DDR5 SDRAM - non-ECC |
| Storage Controller | SATA/NVMe (SATA 6Gb/s / PCIe 4.0 x4 (NVMe)) |
| Hard Drive | SSD 4 TB - PCI Express - M.2 - HP Z Turbo Drive, NVM Express (NVMe) |
| Hard Drive (2nd) | SSD 4 TB - PCI Express 4.0 - M.2 |
| Hard Drive (3rd) | SSD 2 TB - PCI Express 4.0 |
| Optical Storage | No optical drive |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Controller | PCIe 4.0 x16 - NVIDIA RTX A5000 / Intel UHD Graphics 770 |
| Video Memory | 24 GB GDDR6 SDRAM |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3 |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP Secure Erase, HP BIOS Configuration Utility (free download), HP Client Catalog (free download), HP Driver Packs, HP Image Assistant, HP Image Assistant (free download), HP Documentation, HP Notifications, HP System Software Manager (free download), HP Sure Click, HP Manageability Integration Kit, HP Privacy Settings, HP Cloud Recovery, HP Sure Admin, WPS Office, HP Client Security Manager Gen6, HP Client Management Script Library (free download), HP BIOSphere Gen6, myHP, Touchpoint Customizer for Commercial, HP Desktop Support Utilities, HP Sure Recover Gen4, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Sure Start Gen7 |
| Color | Black |
| Dimensions (WxDxH) | 14 in x 6.7 in x 15.2 in |
| Weight | 13.67 lbs |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Workstation |
| AI Level | AI Workstation |
| Product Form Factor | Tower - 4U |
| Built-in Devices | Speaker |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external 5.25" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x PCIe 5.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 (x1 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 ¦ 3 (total) / 2 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (PCIe 3.0 x1 mode and Intel CNVi wireless module) |

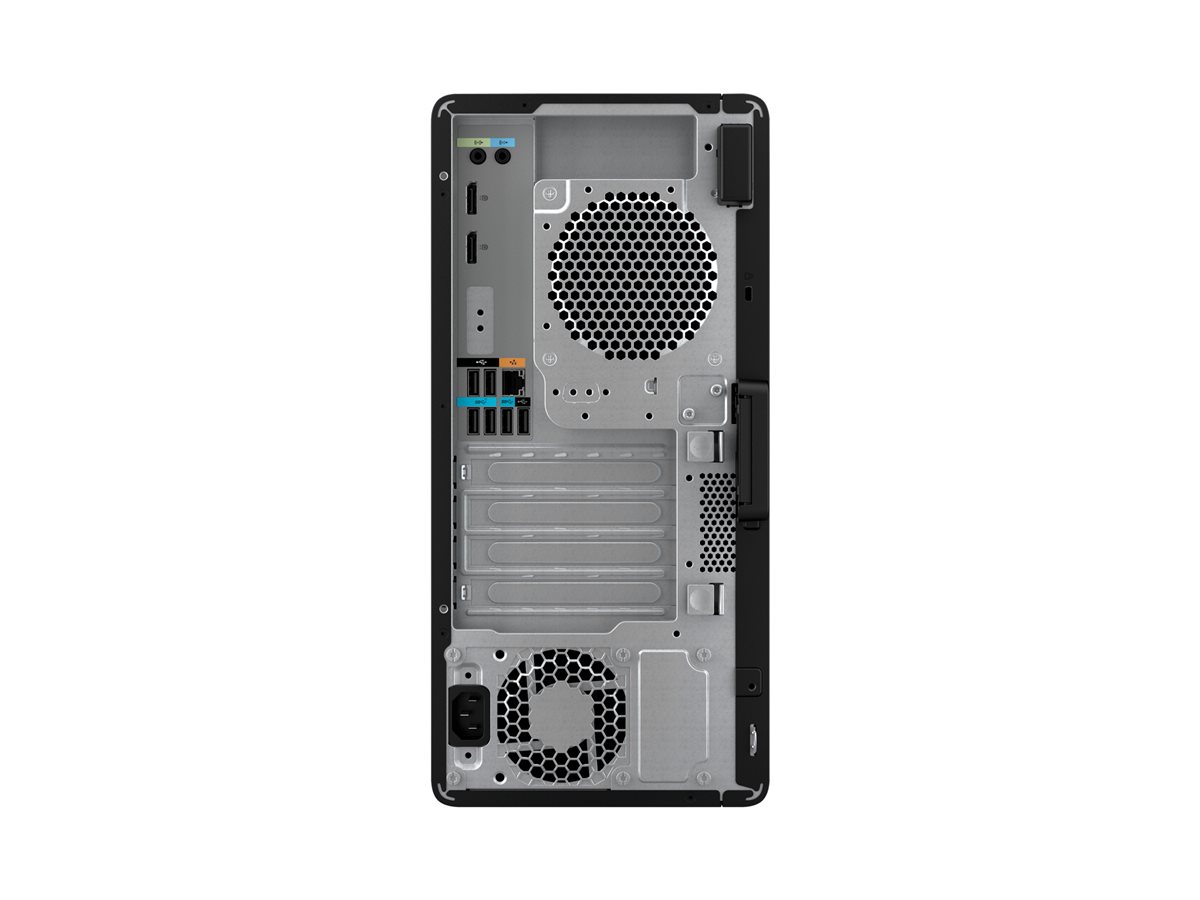

| Interfaces | 1 x headphones/microphone (1 front) (CTIA and OMTP headset support) ¦ 6 x USB 3.2 Gen 2 (4 front, 2 rear) (one of them is charging) ¦ 1 x audio line-in (1 rear) ¦ 1 x audio line-out (1 rear) ¦ 2 x DisplayPort 1.4 (2 rear) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x USB 3.2 Gen 1 (1 rear) ¦ 3 x USB 2.0 - Type A (3 rear) ¦ 1 x USB-C 3.1 Gen 2 (1 rear) (Power Delivery) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | UL, GS, CB, CCC, EMC, FCC, RoHS, FIPS 140-2, ICES, Energy-Related Products (ErP) Lot 6, CEC, ERP, CECP, CEL, BIS, low halogen, FEMP |
| RAM | |
| Installed Size | 64 GB (installed) / 128 GB (max) |
| Technology | DDR5 SDRAM - non-ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 2 (empty) |
| Features | Unbuffered |
| Configuration Features | 2 x 32 GB |
| Networking | |
| Interface (Bus) Type | PCI Express Mini Card (M.2) |
| Ethernet Controller | Intel I219-LM, Mellanox ConnectX-6 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2), Intel Active Management Technology (AMT) 16 |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-269 V (50/60 Hz) |
| Power Provided | 700 watt |
| Efficiency | 92% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 85% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA/NVMe |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| Channel Qty | 4 |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | L3 cache - 36 MB |
| Cache Per Processor | 36 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Interface Type | PCIe 4.0 x16 |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Processor | NVIDIA RTX A5000 / Intel UHD Graphics 770 |
| Video Memory | 24 GB GDDR6 SDRAM |
| Bandwidth | 768 GBps |
| Video Interfaces | DisplayPort |
| Max Monitors Supported | 4 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Secure Erase, HP BIOS Configuration Utility (free download), HP Client Catalog (free download), HP Driver Packs, HP Image Assistant, HP Image Assistant (free download), HP Documentation, HP Notifications, HP System Software Manager (free download), HP Sure Click, HP Manageability Integration Kit, HP Privacy Settings, HP Cloud Recovery, HP Sure Admin, WPS Office, HP Client Security Manager Gen6, HP Client Management Script Library (free download), HP BIOSphere Gen6, myHP, Touchpoint Customizer for Commercial, HP Desktop Support Utilities, HP Sure Recover Gen4, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Sure Start Gen7 |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 4 TB |
| Interface Type | PCI Express |
| Features | HP Z Turbo Drive, NVM Express (NVMe) |
| Input Device | |
| Type | No keyboard, no mouse |
| Dimensions & Weight | |
| Width | 14 in |
| Depth | 6.7 in |
| Height | 15.2 in |
| Weight | 13.67 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.4 in |
| Shipping Depth | 11.6 in |
| Shipping Height | 19.3 in |
| Hard Drive (2nd) | |
| Type | SSD - M.2 |
| Interface Class | PCI Express |
| Capacity | 1 x 4 TB |
| Interface Type | PCI Express 4.0 |
| Features | HP Z Turbo Drive |
| Processor / Chipset | |
| CPU | Intel Core i9 (13th Gen) 13900K |
| Clock Speed | 3 GHz (P-core) / 2.2 GHz (E-core) |
| Max Turbo Speed | 5.8 GHz (P-core) / 4.3 GHz (E-core) |
| Number of Cores | 24-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 32 MB |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology |
| CPU Socket | LGA1700 Socket |
| Chipset Type | Intel W680 |
| Hard Drive (3rd) | |
| Type | SSD |
| Capacity | 1 x 2 TB |
| Interface Type | PCI Express 4.0 |
| Features | HP Z Turbo Drive, triple-level cell (TLC) |
