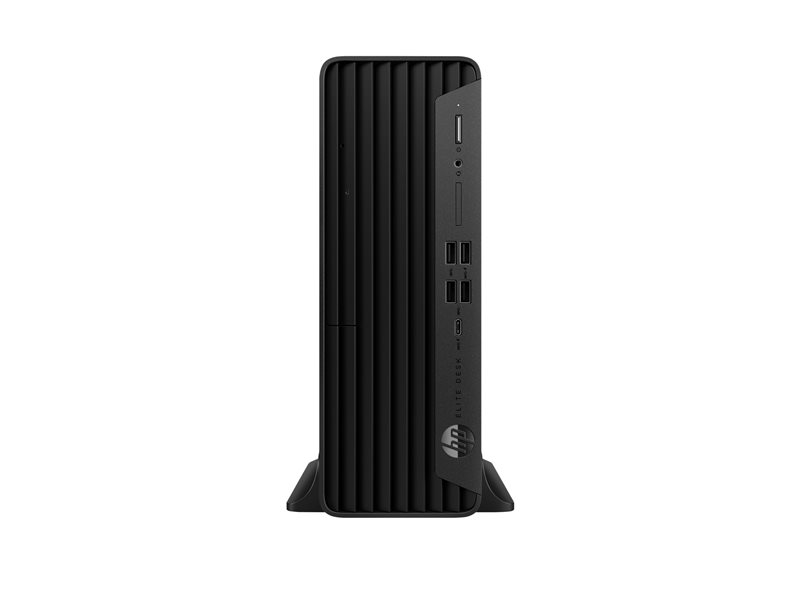

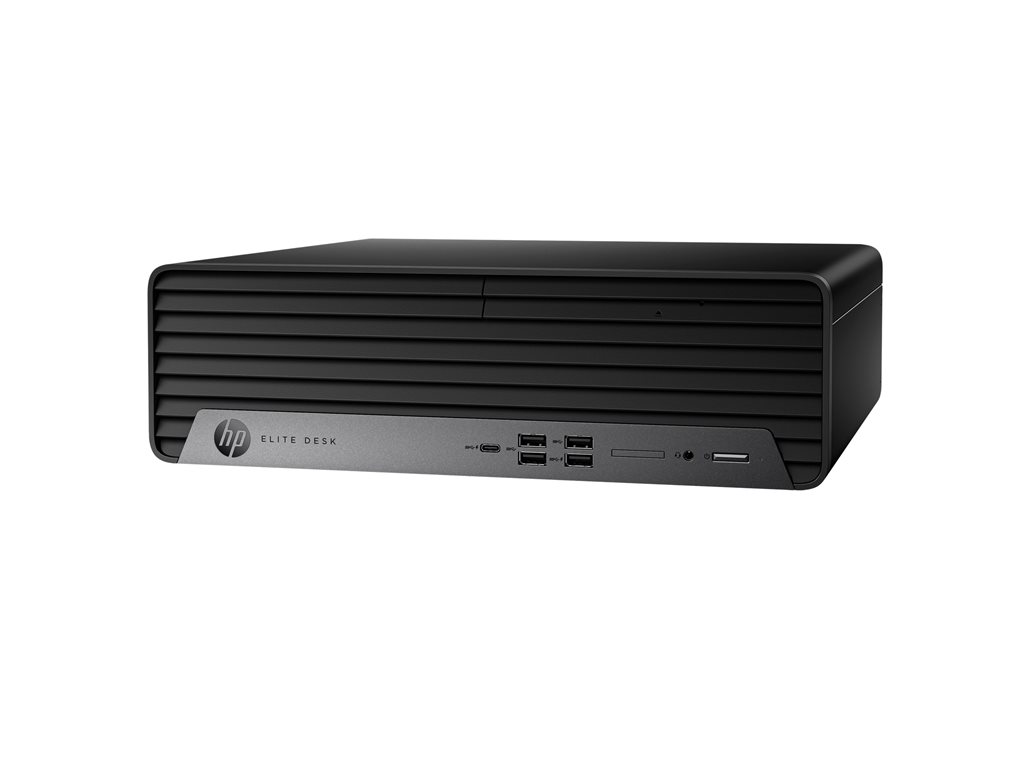

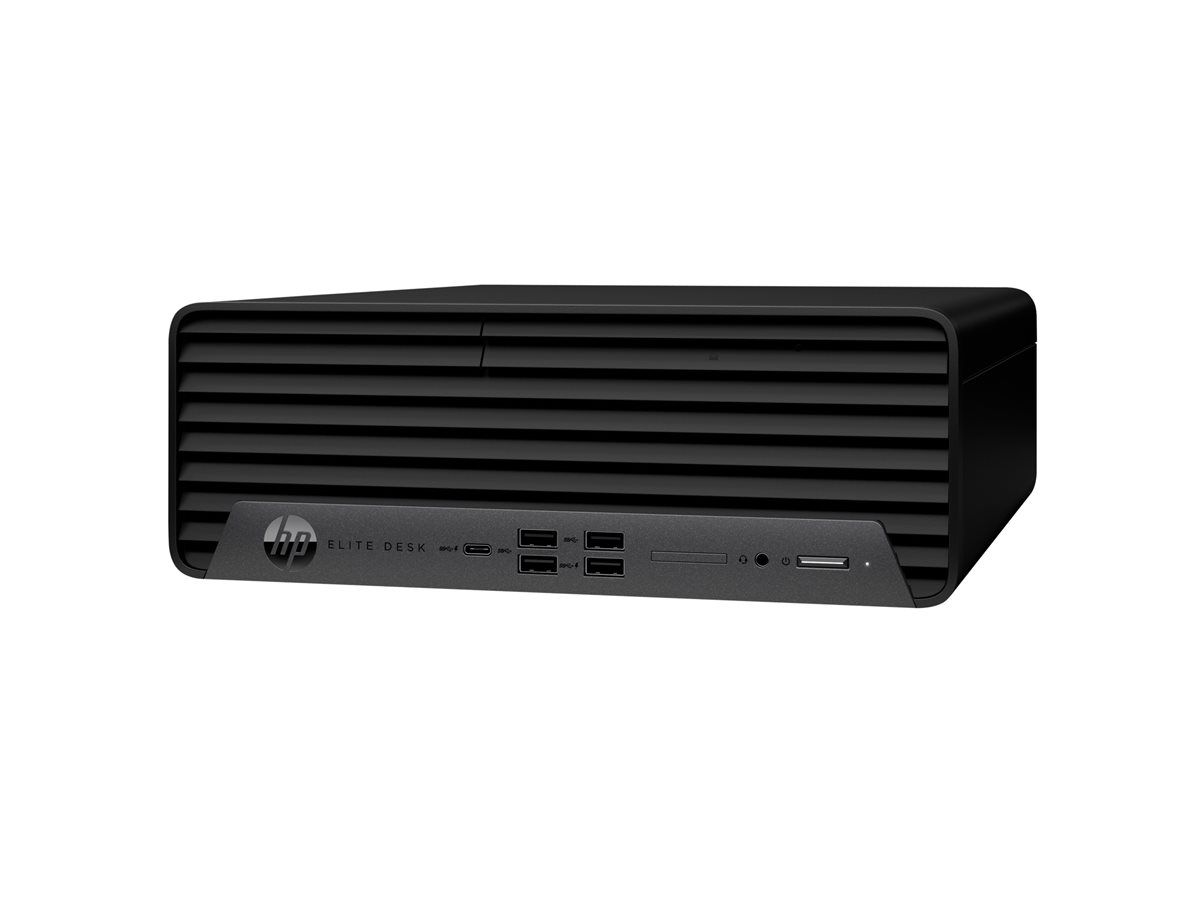

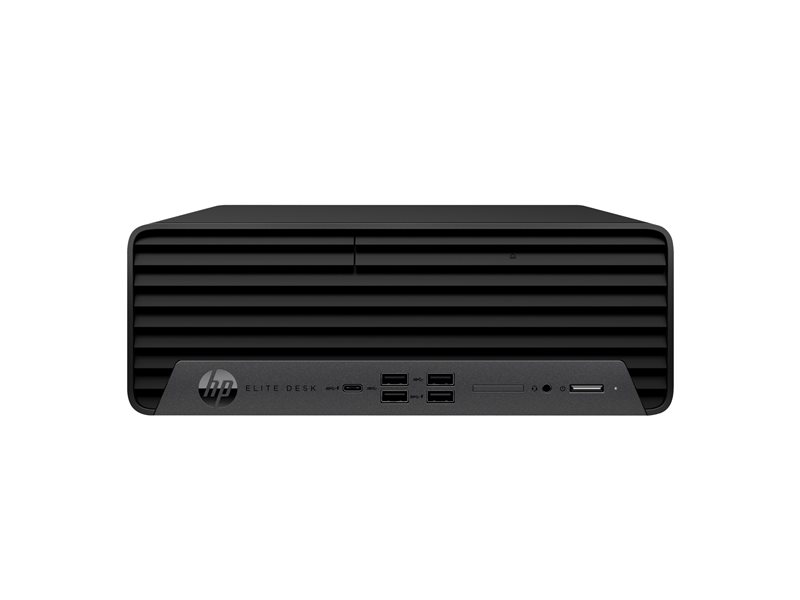

SFF Core i7 13700 / up to 5.2 GHz - RAM 32 GB - SSD 512 GB - NVMe, TLC - UHD Graphics 770 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US
| Main Specifications | |
|---|---|
| Product Description | HP Elite 600 G9 - SFF Core i7 13700 2.1 GHz - 32 GB - SSD 512 GB - US |
| Type | Personal computer - SFF |
| Localization | Language: English / region: United States |
| Processor | Intel Core i7 (13th Gen) 13700 / 2.1 GHz (up to 5.2 GHz, (16-core) |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 128 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA |
| Hard Drive | SSD 512 GB - PCI Express - NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 Dynamic Video Memory Technology |
| Audio Output | Stereo |
| Networking | 1GbE |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Privacy Settings, HP Cloud Recovery, HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, myHP, Touchpoint Customizer for Commercial, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Easy Clean, HP Smart Support (free download), HP Manageability Integration Kit (free download), HP Patch Assistant (free download) |
| Dimensions (WxDxH) | 13.3 in x 12.1 in x 3.9 in |
| Weight | 11.11 lbs |
| Environmental Standards | TCO Certified Desktops 9 |
| Manufacturer Warranty | Limited warranty - parts and labor - 1 year - on-site |
| General | |
| Type | Personal computer |
| Product Form Factor | SFF |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x internal 3.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x1 ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (for WLAN) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (for internal storage) |
| Interfaces | 1 x USB-C 3.2 Gen 2x2 (1 front) (charging) ¦ 4 x USB 3.2 Gen 2 (4 front) (one of them is charging) ¦ 1 x headphones/microphone (1 front) (CTIA and OMTP headset support) ¦ 1 x audio line-out/line-in (1 rear) ¦ 2 x DisplayPort 1.4 (2 rear) ¦ 1 x HDMI (1 rear) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 3 x USB 2.0 (3 rear) (two of them with wake functionality) ¦ 3 x USB 3.2 Gen 1 (3 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, UL 60950-1, CSA C22.2 No. 60950-1-07, KCC Class B, Common Criteria EAL4+, VCCI Class B, low halogen, UL 62368-1, CSA C22.2 No. 62368-1-14 |
| RAM | |
| Installed Size | 32 GB (installed) / 128 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 2 |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Power Provided | 260 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 90% at 20% Load (115 VAC), 92% at 50% Load (115 VAC), 89% at 100% Load (115 VAC), 91% at 20% Load (230 VAC), 93% at 50% Load (230 VAC), 90% at 100% Load (230 VAC) |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Channel Qty | 4 |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 Dynamic Video Memory Technology |
| Video Interfaces | HDMI, DisplayPort |
| HDCP Compatible | Yes |
| Audio Output | |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 192 kHz |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Privacy Settings, HP Cloud Recovery, HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, myHP, Touchpoint Customizer for Commercial, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Easy Clean, HP Smart Support (free download), HP Manageability Integration Kit (free download), HP Patch Assistant (free download) |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 13.3 in |
| Depth | 12.1 in |
| Height | 3.9 in |
| Weight | 11.11 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15.7 in |
| Shipping Depth | 19.6 in |
| Shipping Height | 9 in |
| Shipping Weight | 17.46 lbs |
| Keyboard | |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 128 |
| Technology | Laser |
| Processor / Chipset | |
| CPU | Intel Core i7 (13th Gen) 13700 |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed | 5.2 GHz (P-core) / 4.1 GHz (E-core) |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 24 MB |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology |
| Chipset Type | Intel Q670 |
| Sustainability Information | |
| TCO Certified | TCO Certified Desktops 9 |
